FOOTREST (MODEL Z)
GS1100G 1983 (D) USA (E03)

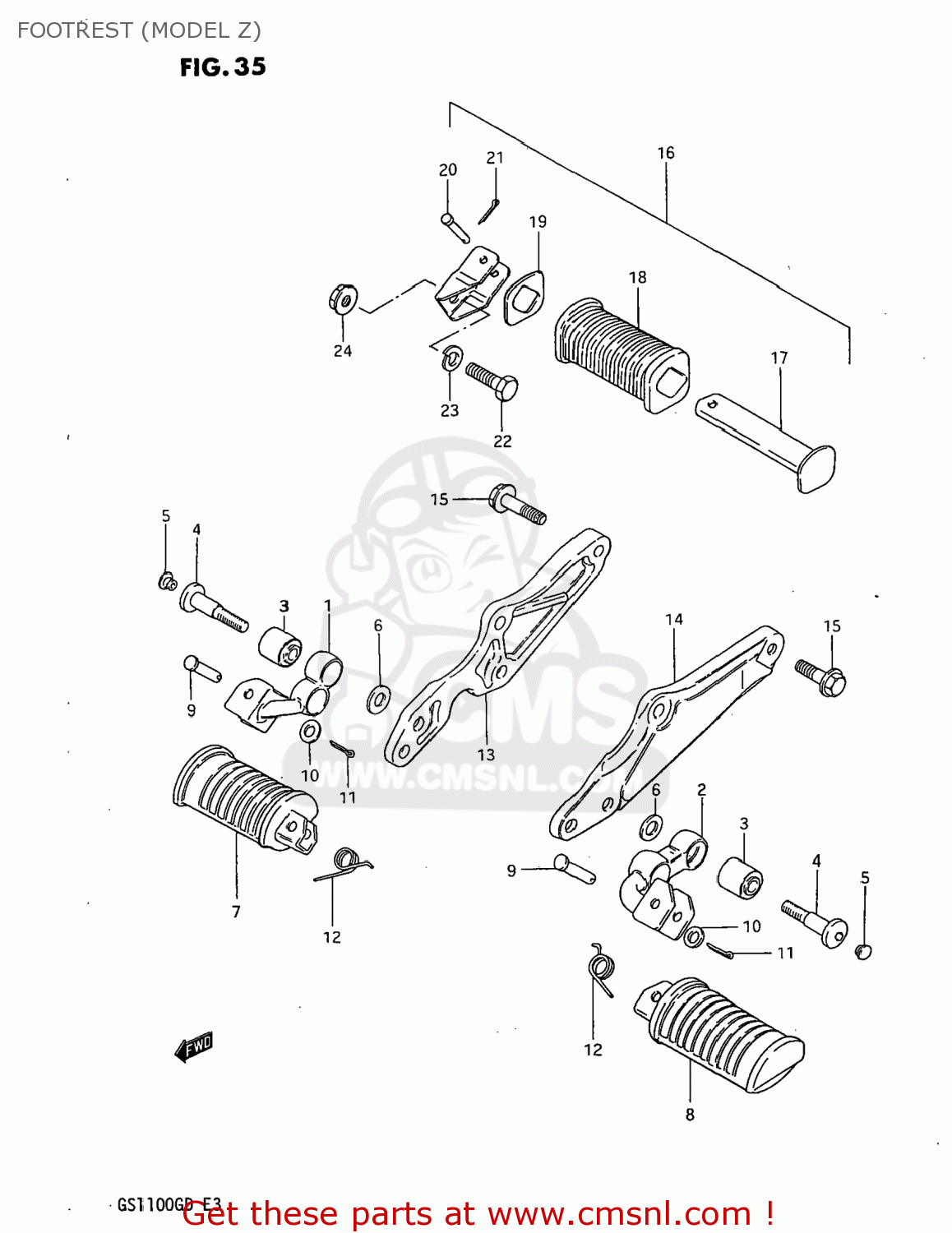

Footrest (model z) diagram GS1100G 1983 (D) USA (E03)
FOOTREST (MODEL Z) GS1100G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351049401
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 36.50
2
4352049401
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 38.00
3
0931910047
ref: 3
BUSH
€ 8.00
4
0910610010
ref: 4
BOLT(10X50)
€ 44.00
5
4357534500
ref: 5
CAP
€ 1.50
6
0916010058
ref: 6
09160-10005
WASHER
€ 2.00
7
4355037301
ref: 7
RUBBER,PILLION FOOTREST,R
€ 22.50
8
4356037301
ref: 8
RUBBER,PILLION FOOTREST,L
€ 22.50
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
12
0944814012
ref: 12
SPRING
€ 3.00
13
4381149400
ref: 13
BRACKET,MUFFLER,RIGHT
€ 84.00
14
4382149400
ref: 14
BRACKET,MUFFLER,LEFT
€ 84.00
15
0152710258
ref: 15
01550-1025A
BOLT
€ 3.00
16-1
4360049400
ref: 16-1
43600-49402
FOOTREST ASSEMBLY,REAR
€ 27.50
16-2
4370049400
ref: 16-2
43700-49402
FOOTREST ASSEMBLY,PILLION
€ 23.00
17-1
4361049400
ref: 17-1
43610-49401
BAR,REAR FOOTREST
€ 8.50
17-2
4362049400
ref: 17-2
43620-49401
BAR,REAR FOOTREST
€ 8.50
18
4361249400
ref: 18
43612-49402
RUBBER,REAR FOOTREST
€ 14.50
19
4363149400
ref: 19
43631-49401
WASHER,REAR FOOTREST RUBBER
€ 3.00
20
0920006010
ref: 20
PIN
€ 2.50
21
0411120208
ref: 21
04111-2020A
PIN 20X20
€ 1.50
22
0110710358
ref: 22
01500-1035B
BOLT,M10X1.25X
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24
0831616108
ref: 24
08316-10107
NUT
€ 2.00
24
0831616108
ref: 24
08316-10107
NUT
€ 2.00
