HANDLEBAR
GS1100G 1983 (D) USA (E03)

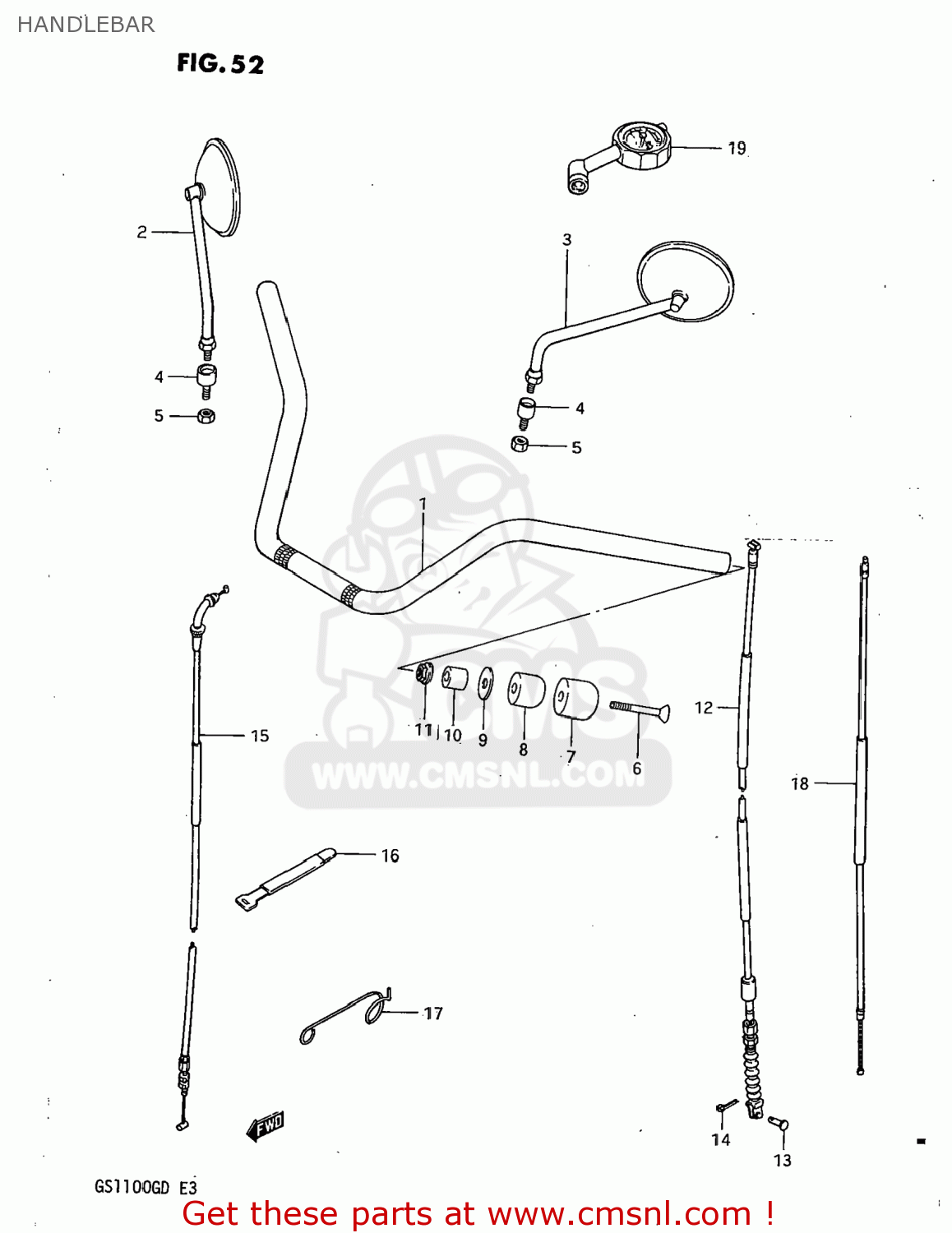

Handlebar diagram GS1100G 1983 (D) USA (E03)
HANDLEBAR GS1100G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5611149410
ref: 1
56111-49430
HANDLEBAR
€ 55.50
2
5650045101
ref: 2
56500-38AB1
MIRROR ASSEMBLY,RIGHT
€ 59.50
3
5660045101
ref: 3
56500-38AB1
MIRROR ASSEMBLY,LEFT
€ 209.00
4
5670031001
ref: 4
56700-45400
CUSHION,REAR VIEW MIRROR
€ 18.00
5
0831022108
ref: 5
08310-00107
NUT
€ 2.50
6
0213206657
ref: 6
02122-06657
SCREW
€ 2.00
7
5627449400
ref: 7
56274-12C00
CAP,BALANCER
€ 83.00
8
5627149420
ref: 8
BALANCER,HANDLE
€ 19.50
9
5627534400
ref: 9
56275-34401
SPACER,BALANCER
€ 2.50
10
5627244500
ref: 10
EXPANDER,HANDLE BALANCER
€ 3.00
11
0915906024
ref: 11
NUT
€ 2.00
12-1
5820049211
ref: 12-1
CABLE ASSY,CLUTCH
€ 35.50
12-2
5820049221
ref: 12-2
58200-49400
CABLE ASSEMBLY,CLUTCH
€ 39.00
13
0920006011
ref: 13
PIN(L:15)
€ 2.50
14
0411120158
ref: 14
04111-2015A
PIN
€ 1.50
15
5830044052
ref: 15
58300-44201
CABLE ASSEMBLY,THROTTLE
€ 33.50
16
0940300069
ref: 16
CLAMP
€ 8.50
17
5862645101
ref: 17
GUIDE,CLUTCH CABLE
€ 4.50
18-1
5841049400
ref: 18-1
58410-47X00
CABLE ASSEMBLY,STARTER
€ 14.00
18-2
5841049401
ref: 18-2
58410-47X00
CABLE ASSEMBLY,STARTER
€ 14.00
19
9620041330
ref: 19
GAUGE ASSY,AIR PRESSURE
€ 77.50
