FRONT BRAKE HOSE

GS1100G 1983 (D) USA (E03)

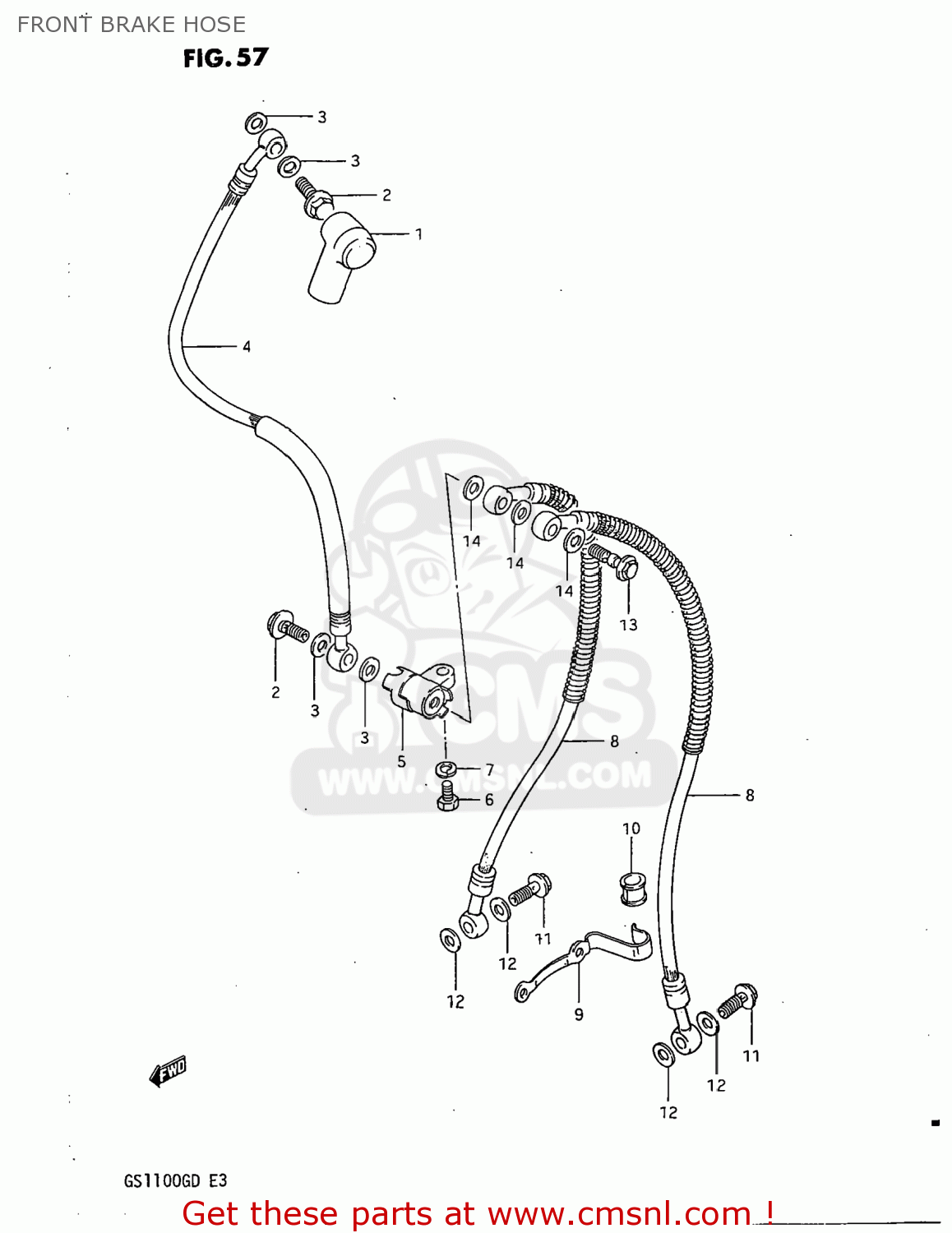

Front brake hose diagram GS1100G 1983 (D) USA (E03)

FRONT BRAKE HOSE GS1100G 1983 (D) USA (E03)

FRONT BRAKE HOSE GS1100G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2-1

0936010007
ref: 2-1
09360-10017

BOLT,UNION

€ 6.50

2-2

0936010009
ref: 2-2
09360-10017

BOLT UNION

€ 6.50

3

0916110005
ref: 3
09161-10009

WASHER

€ 2.00

4

5948049400
ref: 4

HOSE,BRAKE NO.1

€ 72.00

5

5949145000
ref: 5
59491-45001

JOINT,BRAKE HOSE

€ 29.00

6

0110706208
ref: 6
01500-06207

BOLT

€ 2.00

7

0832121068
ref: 7
08321-01067

LOCK WASHER

€ 2.50

8

5924045000
ref: 8
59240-49400

HOSE,FRONT BRAKE

€ 66.50

9

5926849001
ref: 9

GUIDE,BRAKE HOSE NO.2

€ 7.00

10

5924449000
ref: 10

BUSH,BRAKE HOSE GUIDE,NO.2

€ 4.50

11-1

0936010007
ref: 11-1
09360-10017

BOLT,UNION

€ 6.50

11-2

0936010009
ref: 11-2
09360-10017

BOLT UNION

€ 6.50

12

0916110005
ref: 12
09161-10009

WASHER

€ 2.00

13

0936010008
ref: 13
09360-10018

BOLT,UNION

€ 7.00

14

0916110005
ref: 14
09161-10009

WASHER

€ 2.00
