FRONT FORK (MODEL Z)
GS1100G 1983 (D) USA (E03)

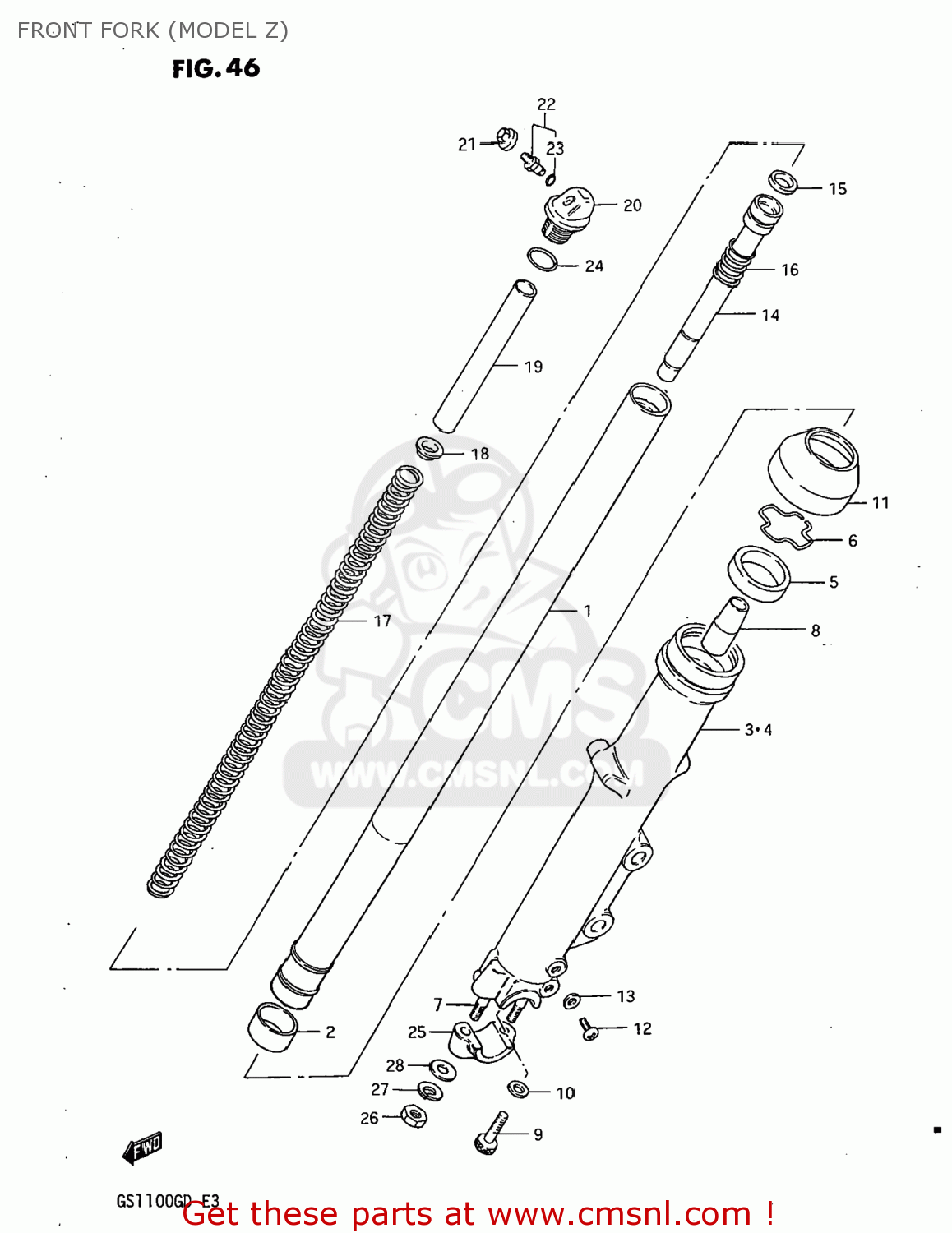

Front fork (model z) diagram GS1100G 1983 (D) USA (E03)
FRONT FORK (MODEL Z) GS1100G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110349400
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110449400
ref:
DAMPER ASSEMBLY,LEFT
€ 0.00
1
5111049400
ref: 1
TUBE,FORK,INNER
€ 0.00
2
5112149200
ref: 2
PISTON
€ 18.00
3
5113049400
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 218.00
4
5114049400
ref: 4
TUBE,FORK,LEFT,OUTER
€ 239.50
5
5115349000
ref: 5
51153-08C20
OIL SEAL,FRONT FORK
€ 16.50
6
5115640301
ref: 6
RING,STOPPER
€ 4.50
7
0910808127
ref: 7
09108-08142
STUD
€ 2.50
8
5119549071
ref: 8
PIECE,OIL LOCK
€ 12.00
9
5114716510
ref: 9
BOLT,FORK CYLINDER(10X25)
€ 3.50
10
5114841310
ref: 10
GASKET (NAS)
€ 2.50
11
5117349002
ref: 11
SEAL,DUST
€ 13.00
12
0211204088
ref: 12
02112-04087
SCREW
€ 1.50
13
5118303010
ref: 13
GASKET,DRAIN,PLUG (NAS)
€ 3.00
14
5114649000
ref: 14
CYLINDER,FRONT FORK
€ 78.00
15
5119649000
ref: 15
RING,PISTON
€ 9.00
16
5117749000
ref: 16
SPRING,REBOUND
€ 7.50
17
5117149000
ref: 17
SPRING,FRONT FORK
€ 42.00
18
5117238010
ref: 18
GUIDE,FRONT FORK SPRING C
€ 9.50
19
5117645100
ref: 19
SPACER,SPRING
€ 0.00
20
5135149400
ref: 20
51351-41211
CAP,FORK INNER TUBE
€ 41.00
21
5129449000
ref: 21
CAP,VALVE
€ 22.50
22
5129349001
ref: 22
VALVE
€ 18.00
23
5111741211
ref: 23
O RING
€ 6.50
24
5111716310
ref: 24
O RING
€ 4.50
25
5113249000
ref: 25
HOLDER,AXLE
€ 30.00
26
0914008005
ref: 26
09140-08017
NUT (8MM)
€ 1.50
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0832221088
ref: 28
08322-01087
WASHER
€ 2.00
28
0832221088
ref: 28
08322-01087
WASHER
€ 2.00
