TAIL COVER (MODEL D)
GS1100G 1983 (D) USA (E03)

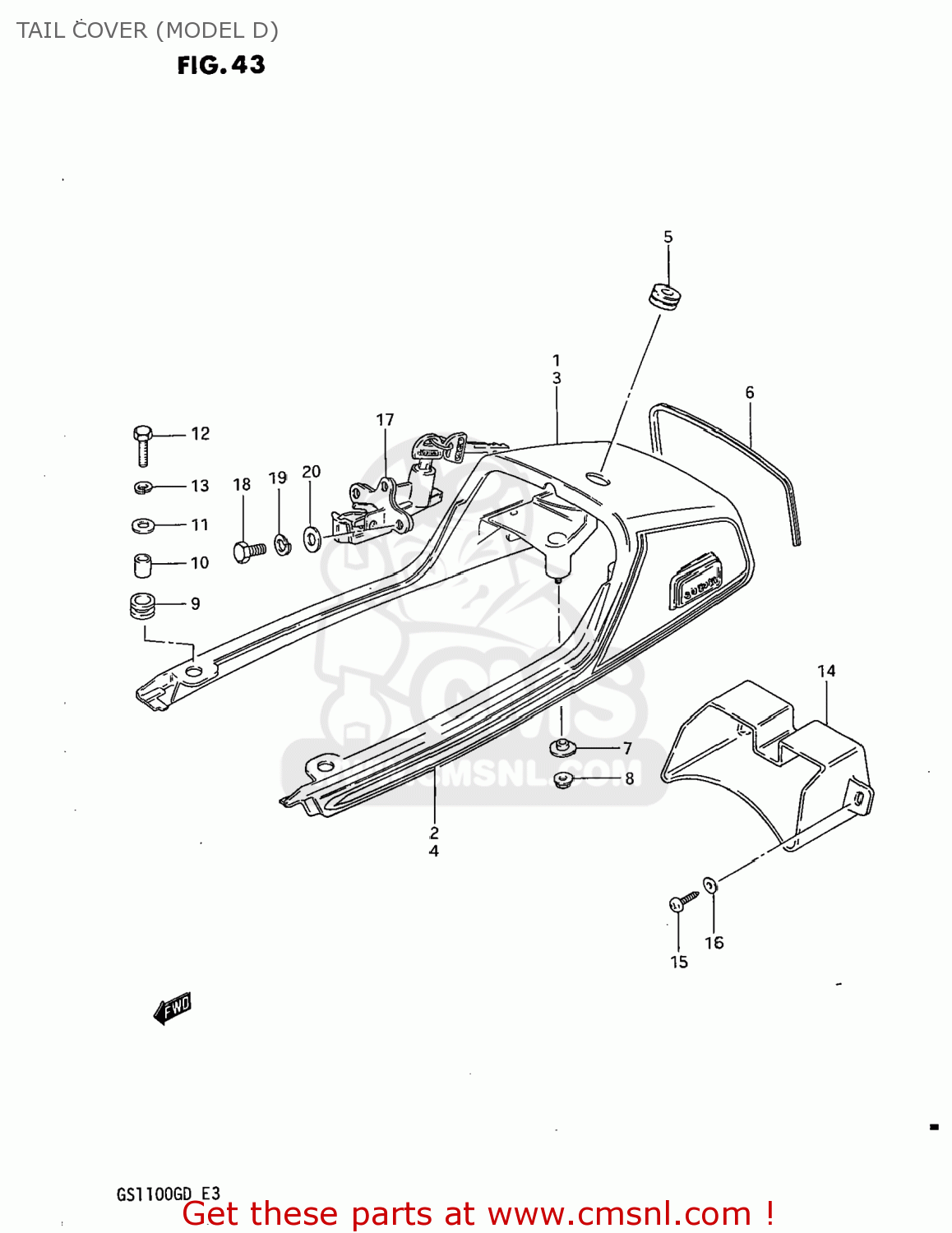

Tail cover (model d) diagram GS1100G 1983 (D) USA (E03)
TAIL COVER (MODEL D) GS1100G 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
455004945086G
ref: 1
COVER SET,SEAT TAIL
€ 0.00
2
681604944086D
ref: 2
TAPE SET,SEAT TAIL COVER
€ 0.00
3
455004945078R
ref: 3
COVER SET,SEAT TAIL
€ 0.00
4
681604944078U
ref: 4
TAPE SET TAIL COVER
€ 0.00
5
4552249200
ref: 5
GROMMET,SEAT LOCK HOLE
€ 5.50
6
4556249400
ref: 6
MOLDING,SEAT TAIL COVER
€ 5.50
7
0916906016
ref: 7
WASHER
€ 1.50
8
0831921068
ref: 8
08319-2106A
NUT 6MM
€ 2.00
9
0932010003
ref: 9
CUSHION
€ 2.50
10
0918007013
ref: 10
09180-06290
SPACER (7X10X12)
€ 2.50
11
0916006004
ref: 11
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
12
0110706258
ref: 12
01500-06257
BOLT
€ 2.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
9499149400
ref: 14
BOX, SEAT TAIL
€ 149.00
15
0214206128
ref: 15
02142-06127
SCREW
€ 1.50
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
9570049830
ref: 17
LOCK SET,SEAT
€ 81.50
18
0110706128
ref: 18
01500-06127
BOLT
€ 2.00
19
0832121068
ref: 19
08321-01067
LOCK WASHER
€ 2.50
20
0832221068
ref: 20
08322-01067
WASHER
€ 2.00
