REAR FENDER

GS1100G 1983 (D) USA (E03)

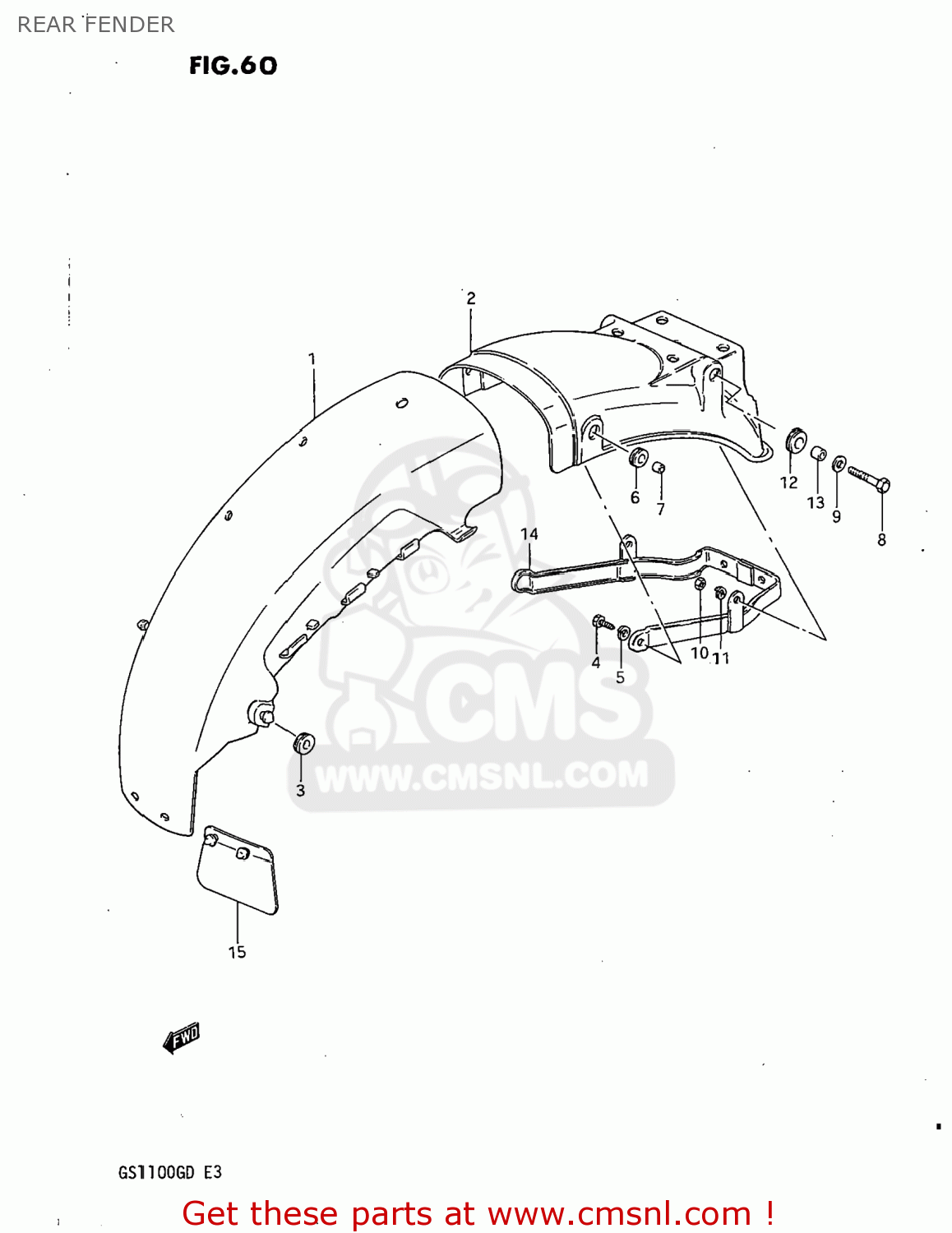

Rear fender diagram GS1100G 1983 (D) USA (E03)

REAR FENDER GS1100G 1983 (D) USA (E03)

REAR FENDER GS1100G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311249003
ref: 1
63112-49004

FENDER,REAR

€ 82.50

2-1

6311349400291
ref: 2-1
63113-49440-291

FENDER,REAR

€ 85.00

2-2

6311349420291
ref: 2-2
63113-49440-291

FENDER,REAR

€ 85.00

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0110706168
ref: 4
01500-06167

BOLT, UPPER

€ 3.00

5

0832121068
ref: 5
08321-01067

LOCK WASHER

€ 2.50

6

0932008007
ref: 6
09320-08021

CUSHION

€ 4.00

7

0918006038
ref: 7

SPACER(6.1X9X7.5)

€ 2.00

8

0110708308
ref: 8
01500-08307

BOLT (8X30)

€ 2.50

9

0832211088
ref: 9
08322-01087

WASHER

€ 2.00

10

0831012088
ref: 10
08310-00087

NUT

€ 2.00

11

0832121088
ref: 11
08321-01087

LOCK WASHER

€ 2.00

12

0932012011
ref: 12

CUSHION

€ 3.00

13

0918008021
ref: 13
09180-08188

SPACER (8.2X12X7.5)

€ 3.00

14

6312049400
ref: 14

REINFORCEMENT,REAR FENDER

€ 30.50

15

6341131900
ref: 15

GUIDE,RR FENDER MUD

€ 8.00
