CYLINDER HEAD COVER (MODEL D)

GS1100G 1983 (D) USA (E03)

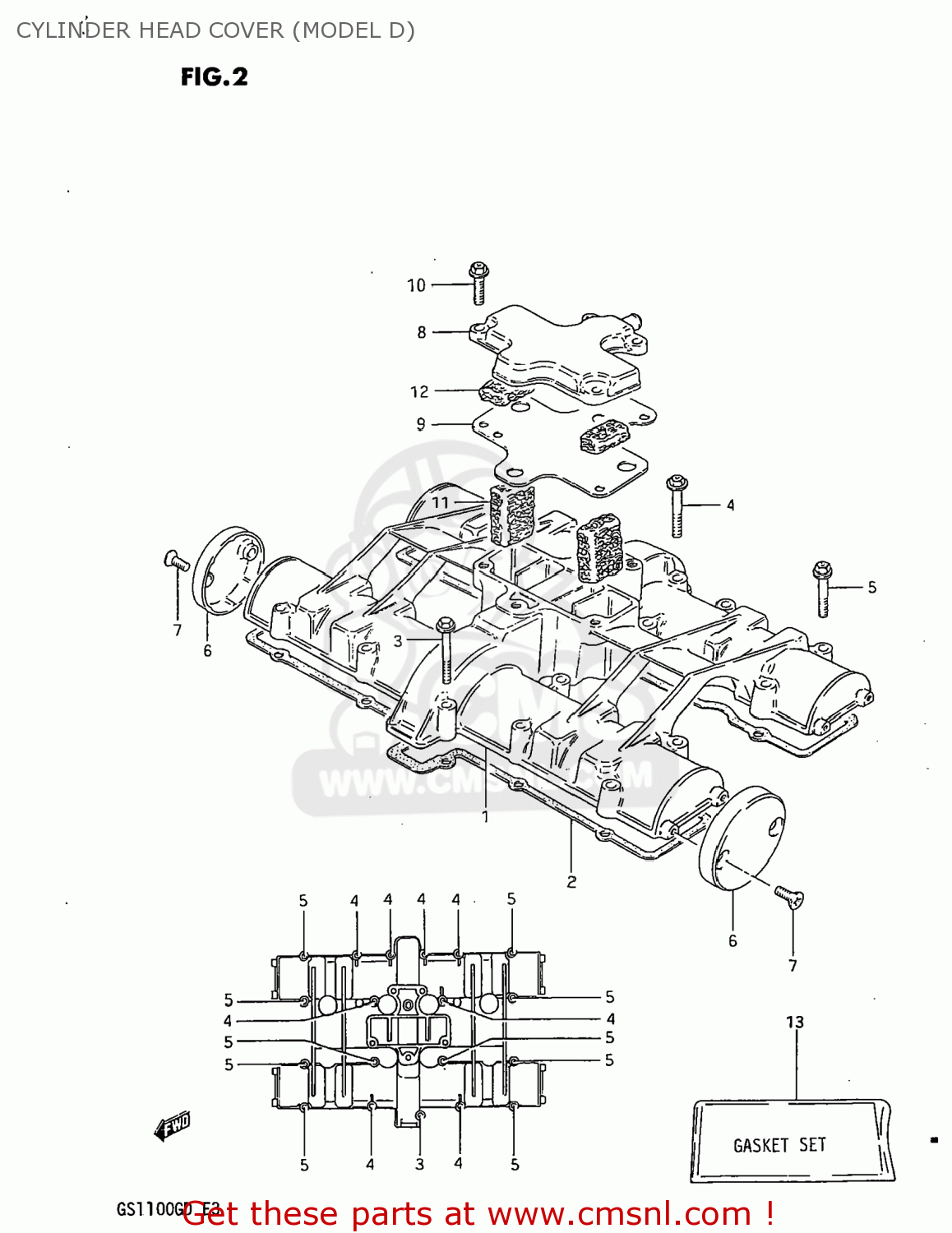

Cylinder head cover (model d) diagram GS1100G 1983 (D) USA (E03)

CYLINDER HEAD COVER (MODEL D) GS1100G 1983 (D) USA (E03)

CYLINDER HEAD COVER (MODEL D) GS1100G 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117149030
ref: 1

COVER,CYLINDER HEAD

€ 146.50

2

1117349021
ref: 2
11173-49022

GASKET,CYLINDER HEAD COVER (MCA)

€ 49.00

3

0151706455
ref: 3
01550-0645A

BOLT (6X45)

€ 2.50

4

0151706405
ref: 4
01550-0640A

BOLT (6X40)

€ 2.00

5

0151706355
ref: 5
01550-0635A

BOLT

€ 2.50

6

1117449000
ref: 6

CAP,CYLINDER HEAD COVER

€ 38.00

7

0912705013
ref: 7

SCREW(5X12)

€ 2.50

8

1117647042
ref: 8

COVER,BREATHER

€ 32.50

9

1117747001
ref: 9
11177-47001-H17

GASKET (MCA)

€ 19.50

10

0151706205
ref: 10
01550-0620A

BOLT

€ 2.50

11

1118645000
ref: 11
11186-45001

COVER,BREATHER

€ 5.50

12

1118745000
ref: 12
11187-45001

SEPARATOR,OIL BREATHER

€ 6.50

13

1140149872
ref: 13
11402-49870

GASKET SET

€ 248.50
