AIR CLEANER
GS1100GL 1982 (Z) USA (E03)

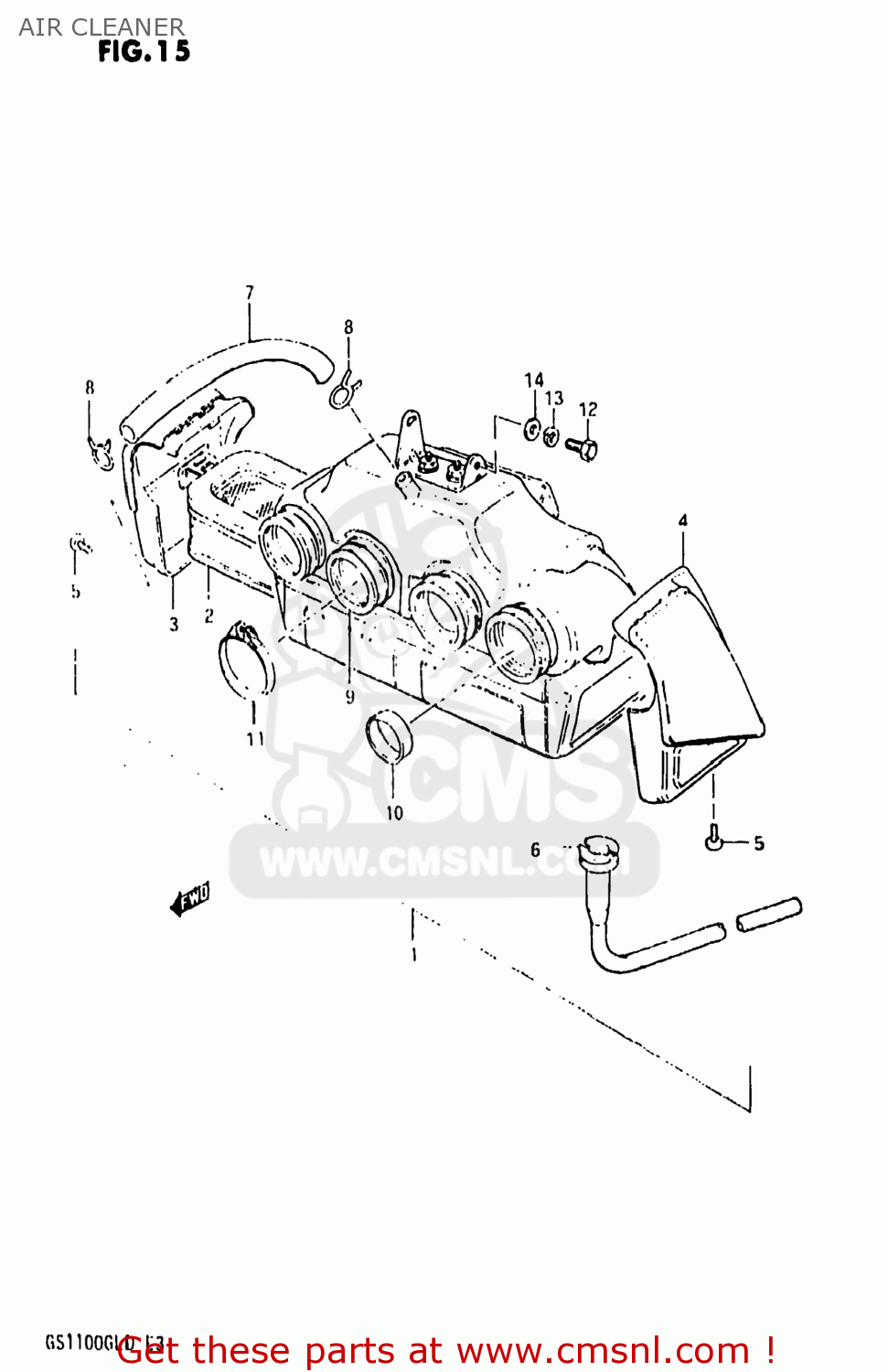

Air cleaner diagram GS1100GL 1982 (Z) USA (E03)
AIR CLEANER GS1100GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370049080
ref: 1
13700-49082
CLEANER ASSEMBLY,AIR
€ 222.00
2
1378049070
ref: 2
FILTER ASSY
€ 90.00
3
1374049070
ref: 3
13740-45100
CAP,AIR CLEANER
€ 44.50
4
1375049070
ref: 4
13750-45100
CAP,AIR CLEANER,LEFT
€ 43.50
5
0214205128
ref: 5
02142-05127
SCREW
€ 1.50
6
1387000130
ref: 6
13870-11458
DRAIN TUBE
€ 13.50
7
1385100250
ref: 7
09352-11153-600
TUBE,BREATHER
€ 13.50
8
0940114301
ref: 8
CLIP
€ 2.00
9
1388149080
ref: 9
TUBE,OUTLET
€ 14.00
10
1388533200
ref: 10
RING,CARBURETOR AIR IN
€ 9.00
11
0940262206
ref: 11
09402-62208
CLAMP
€ 6.00
12
0110706128
ref: 12
01500-06127
BOLT
€ 2.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
0832211068
ref: 14
08322-0106B
WASHER 6MM
€ 2.00
