FRONT MASTER CYLINDER

GS1100GL 1982 (Z) USA (E03)

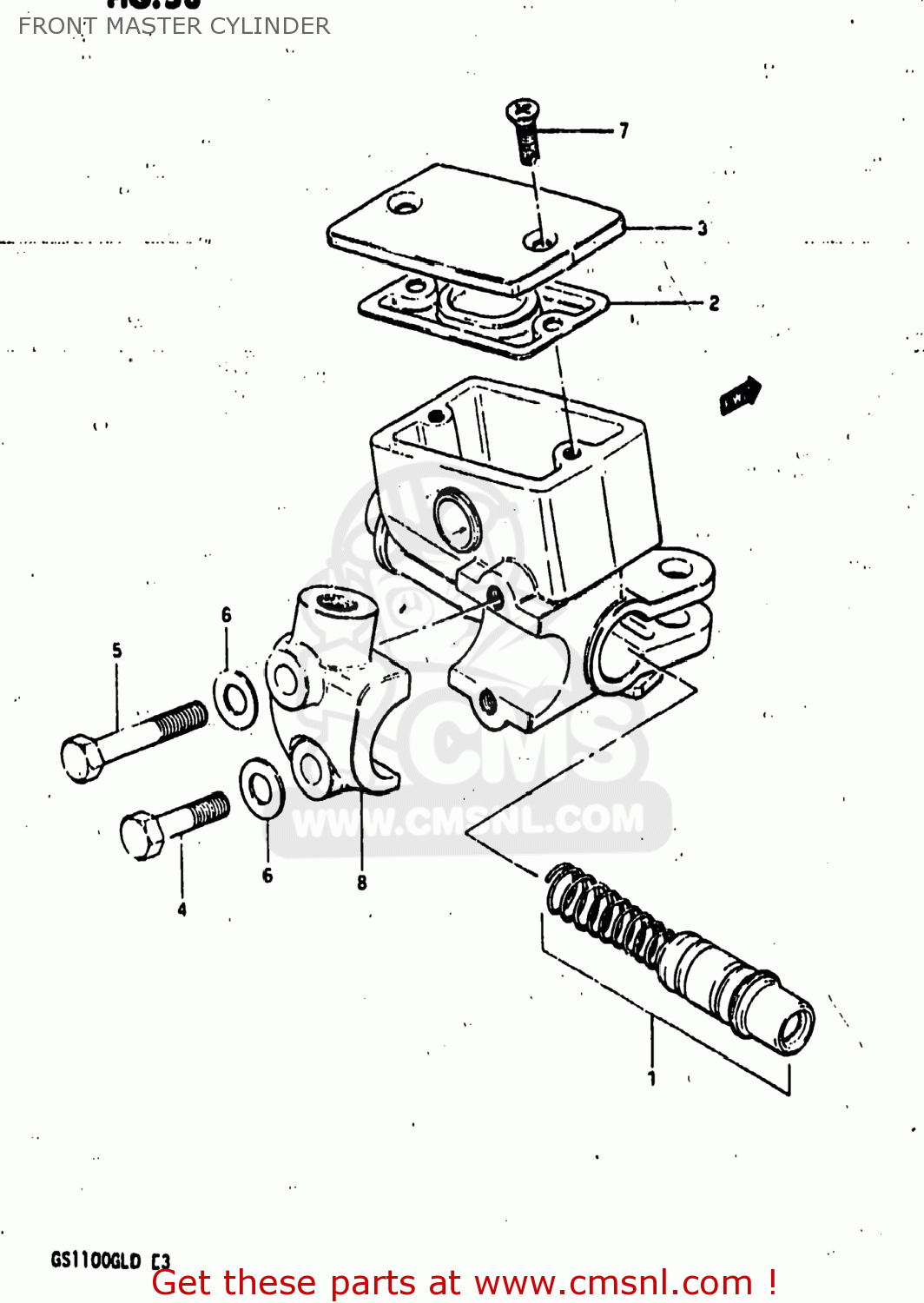

Front master cylinder diagram GS1100GL 1982 (Z) USA (E03)

FRONT MASTER CYLINDER GS1100GL 1982 (Z) USA (E03)

FRONT MASTER CYLINDER GS1100GL 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

0

5960045330
ref: 0

CYLINDER ASSEMBLY,FRONT MASTER

€ 122.00

1

5960045831
ref: 1

PISTON & CUP SET

€ 41.50

2

6966749300
ref: 2
59667-49460

6966749300

3

6966949330
ref: 3
59669-41C00

CAP

€ 30.00

4

0110706258
ref: 4
01500-06257

BOLT

€ 2.00

5

0110706408
ref: 5
01500-0640B

BOLT 6X40

€ 2.00

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967144300
ref: 8

HOLDER

€ 14.50
