FRAME COVER (MODEL D)

GS1100GL 1982 (Z) USA (E03)

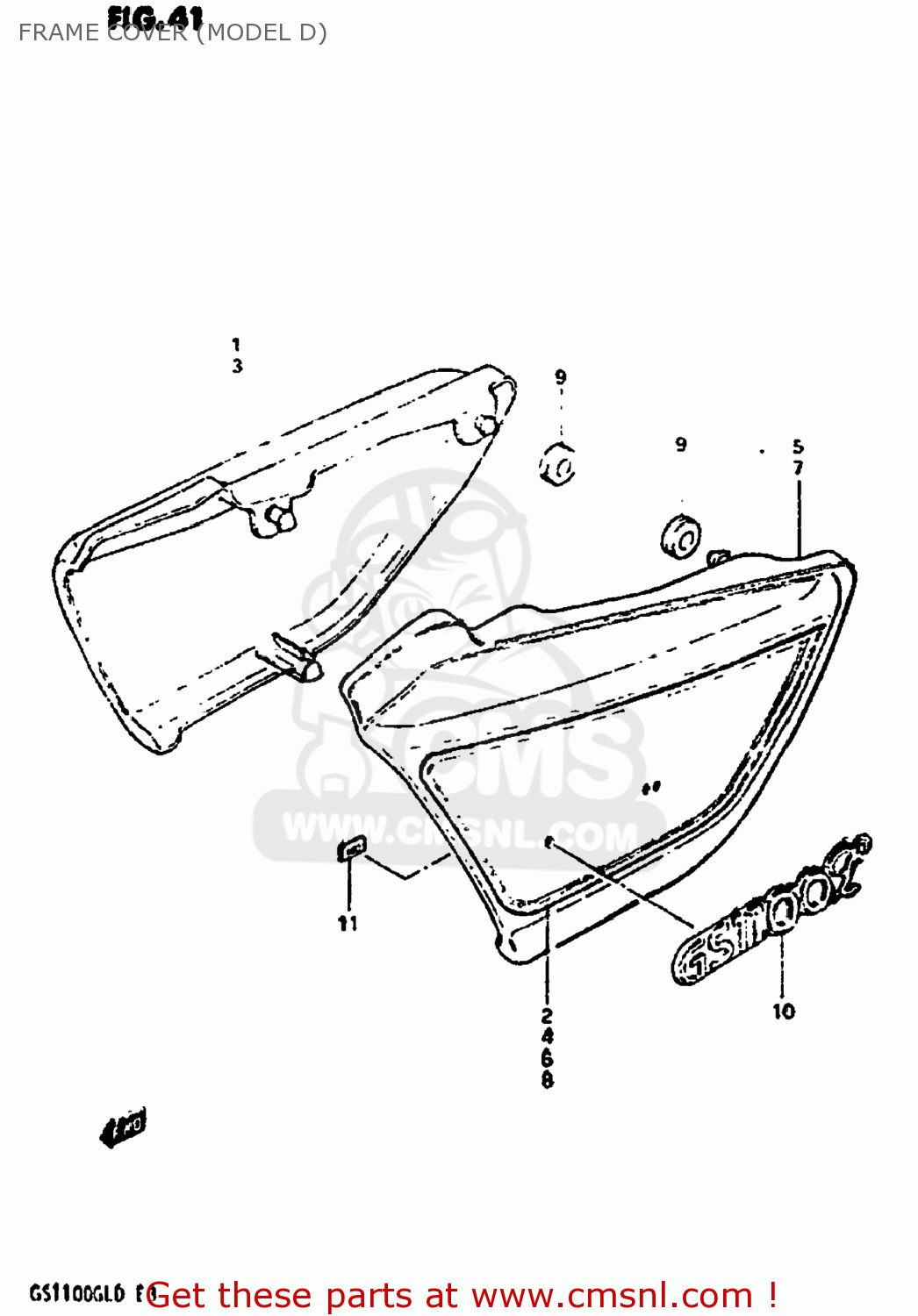

Frame cover (model d) diagram GS1100GL 1982 (Z) USA (E03)

FRAME COVER (MODEL D) GS1100GL 1982 (Z) USA (E03)

FRAME COVER (MODEL D) GS1100GL 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711049110019
ref: 1
47111-45310

COVER,FRAME,RIGHT

€ 65.00

2

681304912078U
ref: 2

TAPE SET,FRAME COVER

€ 8.50

3

471104911014A
ref: 3
47111-45310

COVER,FRAME,RIGHT

€ 65.00

4

681304912086C
ref: 4

TAPE SET,FRAME COVER

€ 12.00

5

4721049110019
ref: 5
47211-45310

COVER,FRAME,LEFT

€ 66.50

6

681404912078U
ref: 6

TAPE SET,FRAME COVER,LEFT

€ 13.00

7

472104911014A
ref: 7
47211-45310

COVER,FRAME,LEFT

€ 66.50

8

681404912086C
ref: 8

TAPE SET,FRAME COVER

€ 9.50

9

0932008018
ref: 9

CUSHION

€ 4.00

10

6813149140
ref: 10

EMBLEM,FRAME COVER

€ 23.00

11

0914803002
ref: 11

NUT

€ 3.00
