REAR CALIPERS
GS1100GL 1982 (Z) USA (E03)

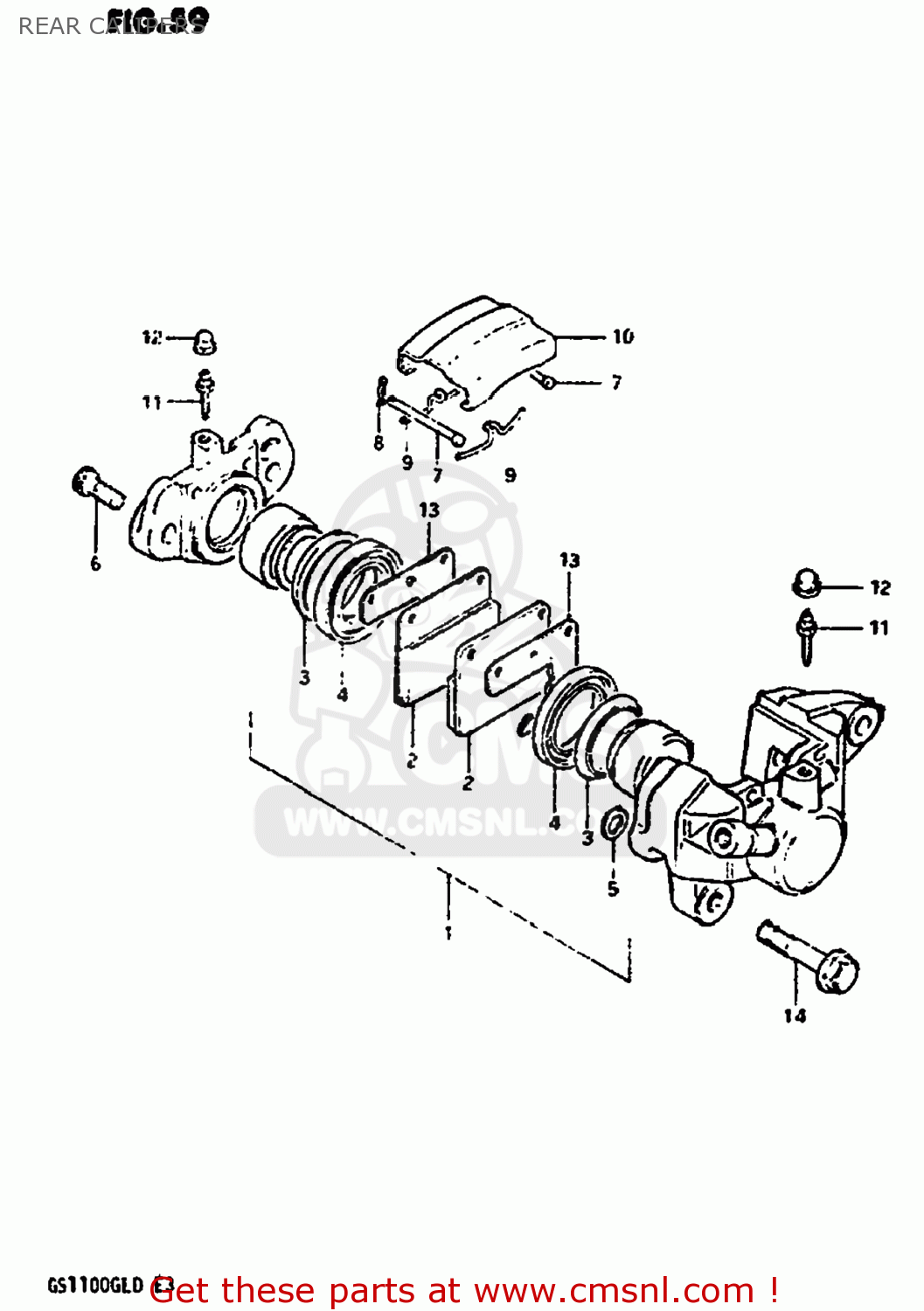

Rear calipers diagram GS1100GL 1982 (Z) USA (E03)
REAR CALIPERS GS1100GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
6910045020
ref: 0
69100-08C00-999
CALIPER ASSEMBLY,REAR
€ 843.50
0-1
6910045021
ref: 0-1
69100-08C00-999
CALIPER ASSEMBLY,REAR
€ 843.50
1-1
6910045850
ref: 1-1
69100-08821
PISTON SET
€ 241.00
1-2
6910045850
ref: 1-2
69100-08821
PISTON SET
€ 241.00
2-1
6913045020
ref: 2-1
69101-45850-XNA
PAD,BRAKE
€ 66.50
2-2
6913045021
ref: 2-2
69101-45850-XNA
PAD,BRAKE (MCA)
€ 66.50
3
5910718410
ref: 3
69107-05CF0
SEAL,PISTON
€ 17.00
4
6910845000
ref: 4
BOOT,PISTON
€ 10.00
5
6910745000
ref: 5
SEAL,PISTON
€ 15.50
6
6914545000
ref: 6
BOLT,HOUSING
€ 7.00
7
6914145000
ref: 7
PIN,PAD
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
6914345001
ref: 9
SPRING
€ 8.00
10
6915145000
ref: 10
COVER,DUST
€ 26.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
55156-66310
CAP,BREATHER
€ 6.00
13
6915245001
ref: 13
SHIM,RR CALIPER
€ 9.50
14
0152710308
ref: 14
01550-10307
BOLT
€ 3.50
