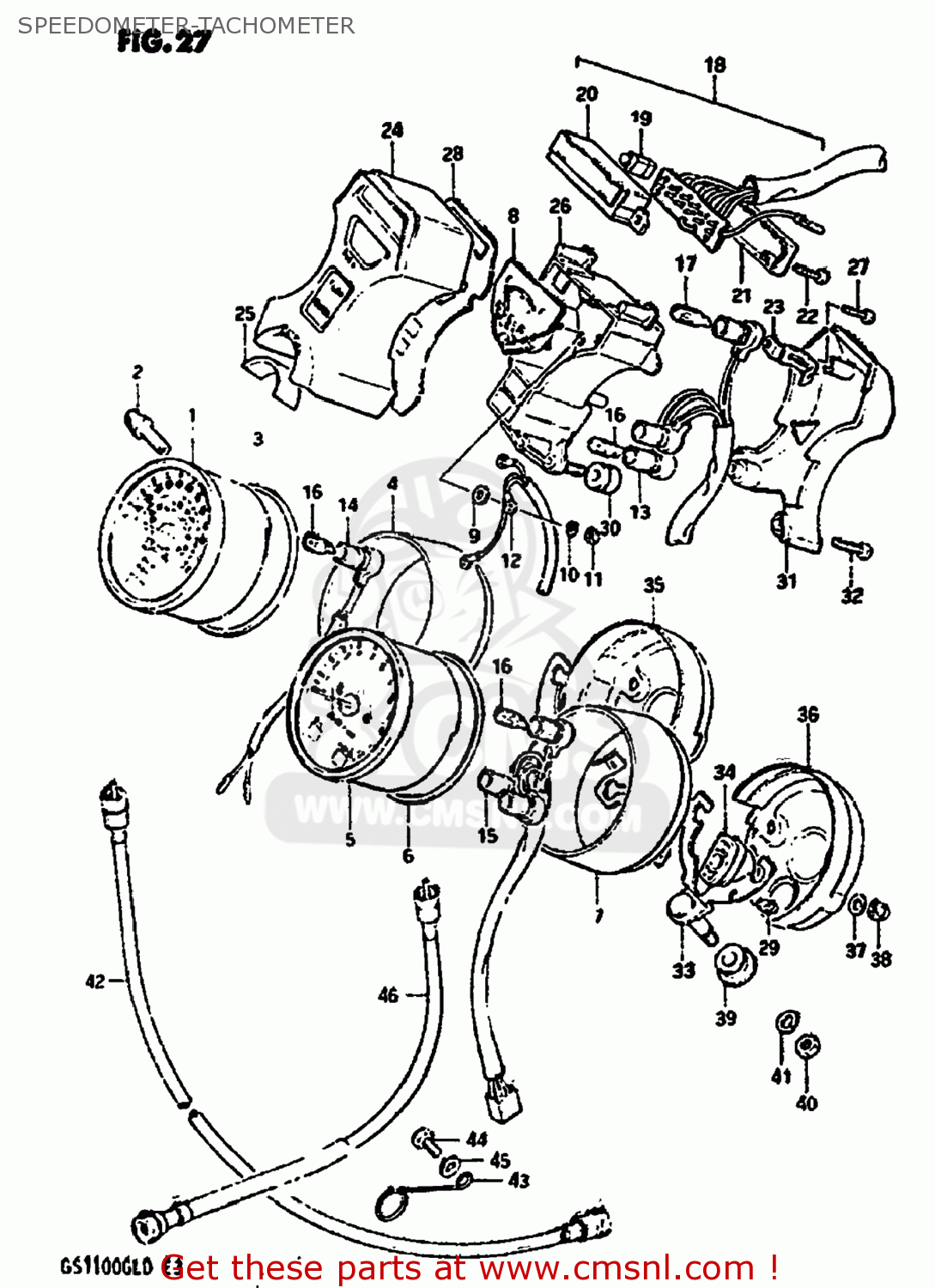

SPEEDOMETER-TACHOMETER

ref

part #

description

quantity

1-1

3411045370
ref: 1-1
34110-45371

SPEEDOMETER ASSEMBLY

€ 307.00

1-2

3411045371
ref: 1-2

METER,SPEEDOMETER (KM/MPH)

€ 307.00

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418933220
ref: 3
34189-45300

CUSHION,SPEEDOMETER

€ 10.00

4

3415133220
ref: 4

COVER,SPEEDOMETER

€ 15.00

5-1

3421045370
ref: 5-1
34210-45360

TACHOMETER

€ 392.00

5-2

3421045371
ref: 5-2
34210-45360

TACHOMETER

€ 392.00

6

3418933220
ref: 6
34189-45300

CUSHION,SPEEDOMETER

€ 10.00

7

3425133220
ref: 7

COVER,TACHOMETER

€ 15.50

8

3432033220
ref: 8

METER,FUEL

€ 90.50

9

3438433220
ref: 9

WASHER,FUEL METER

€ 2.00

10

0832121038
ref: 10
09162-03001

LOCK WASHER

€ 1.50

11

0831011038
ref: 11
08310-0003B

NUT 3MM

€ 2.00

12

3437845360
ref: 12

SOCKET,FUEL METER

€ 18.50

13

3632545360
ref: 13

SOCKET,PILOT CASE

€ 32.50

14

3417345360
ref: 14

SOCKET,SPEEDOMETER

€ 0.00

15

3427345360
ref: 15

SOCKET,TACHOMETER

€ 30.00

16

0947112028
ref: 16

BULB(12V3.4W,T10)

€ 3.50

17

0947112077
ref: 17

BULB(12V1.7W,T10,WB121)

€ 1.00

18-1

3645045360
ref: 18-1

INDICATOR ASSEMBLY,GEAR POSITION

€ 174.50

18-2

3645049401
ref: 18-2

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

19-1

0947112071
ref: 19-1

BULB(14V1.12W)

€ 5.00

19-2

0947112078
ref: 19-2

BULB(14V1.12W,BQ041-32503B)

€ 6.50

20-1

3645245100
ref: 20-1

CASE,GEAR INDICATOR

€ 14.50

20-2

3645249401
ref: 20-2

CASE,GEAR INDICATOR

€ 12.50

21

3645445100
ref: 21

COVER,LWR

€ 7.00

22

3645645100
ref: 22
03511-03146

SCREW,GEAR INDICATOR

€ 2.00

23

3649433220
ref: 23

CLAMP,CORD

€ 3.00

24

3638133220
ref: 24

CASE,PILOT BOX

€ 82.00

25

3499347000
ref: 25

SEAL,IGNITION SWITCH

€ 3.00

26

3638233220
ref: 26

CASE,PILOT BOX,INNER

€ 39.00

27

3645633220
ref: 27
35625-01A00

SCREW,INDICATOR

€ 1.50

28

3638633220
ref: 28

PLATE,PILOT BOX

€ 18.50

29-1

3419144310
ref: 29-1

CUSHION

€ 3.00

29-2

3419133200
ref: 29-2
34191-44310

CUSHION,METER

€ 3.00

30

3638445300
ref: 30

CUSHION,PILOT BOX

€ 3.50

31

3638333220
ref: 31

COVER,PILOT BOX,UNDER

€ 25.00

32

0211204168
ref: 32
02112-0416A

SCREW

€ 1.00

33

3495045360
ref: 33

BRACKET,COMBINATION METER

€ 44.50

34

3418944310
ref: 34
34189-44311

CUSHION,METER

€ 2.50

35

3419333220
ref: 35
34193-33221

COVER,METER,UNDER

€ 37.50

36

3429333220
ref: 36
34293-33221

PLATE,TACHOMETER UNDER

€ 39.50

37

0832221058
ref: 37
08322-01057

WASHER

€ 2.50

38

0831311057
ref: 38
08313-1005A

NUT

€ 1.50

39

3495631001
ref: 39

CUSHION,METER BRACKET

€ 4.50

40

0831012088
ref: 40
08310-00087

NUT

€ 2.00

41

0832121088
ref: 41
08321-01087

LOCK WASHER

€ 2.00

42

3491045241
ref: 42
34910-38301

CABLE ASSEMBLY,SPEEDOMETER

€ 60.50

43

3493845100
ref: 43

CLAMP,SPEEDOMETER CABLE

€ 14.50

44

0110706168
ref: 44
01500-06167

BOLT, UPPER

€ 3.00

45

0832221068
ref: 45
08322-01067

WASHER

€ 2.00

46

3494045033
ref: 46
34940-45212

CABLE ASSEMBLY,TACHOMETER

€ 18.50
