CAM CHAIN (MODEL Z)
GS1100GL 1982 (Z) USA (E03)

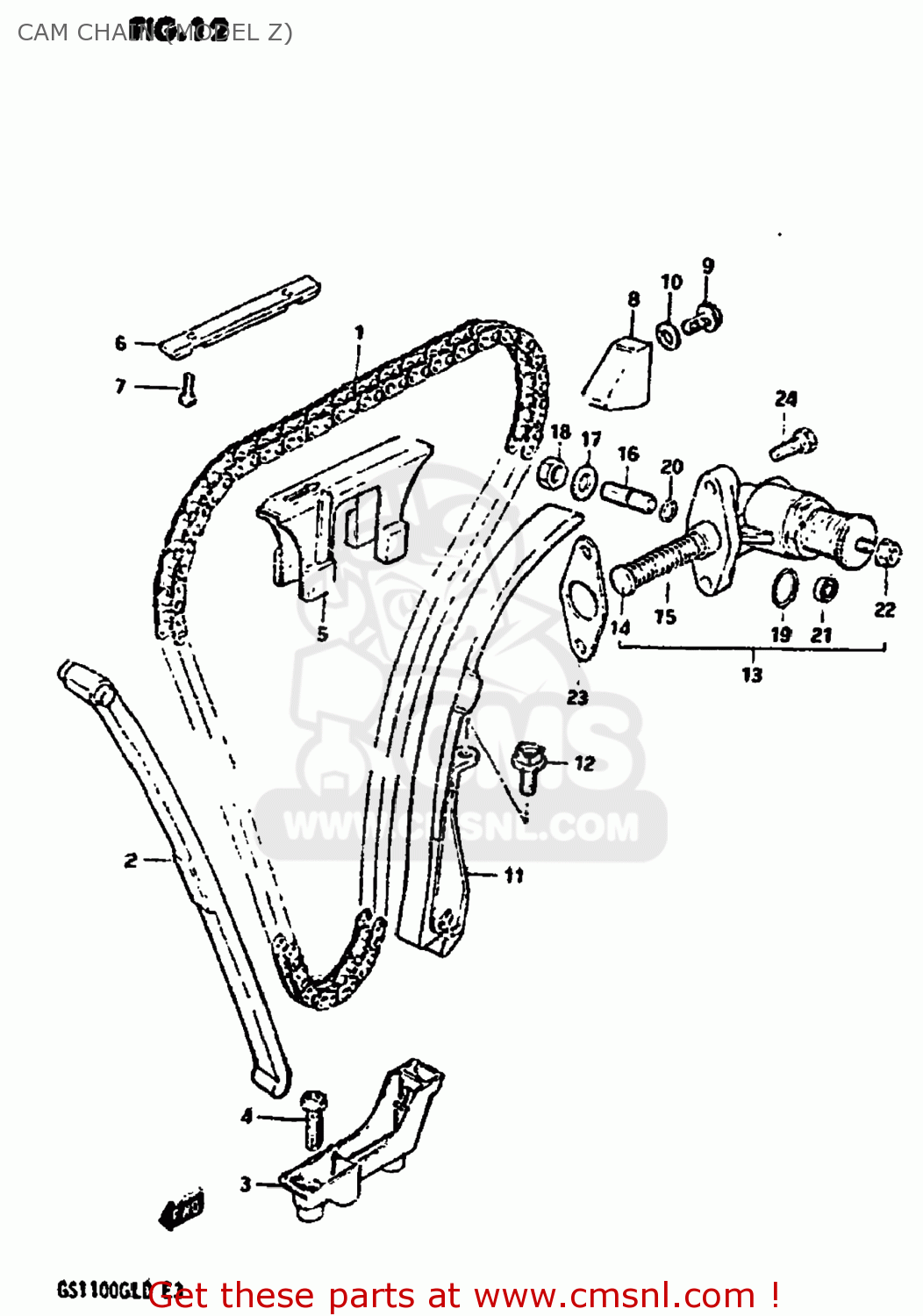

Cam chain (model z) diagram GS1100GL 1982 (Z) USA (E03)
CAM CHAIN (MODEL Z) GS1100GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276049011
ref: 1
12760-45040
CHAIN,CAMSHAFT DRIVE
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
€ 33.50
3
1277649010
ref: 3
HOLDER,CAM CHAIN GUIDE
€ 9.50
4
0211206208
ref: 4
02112-06207
SCREW
€ 2.00
5
1278147042
ref: 5
GUIDE,CAM CHAIN NO.2
€ 136.50
6
1278249140
ref: 6
12782-33200
GUIDE,CAM CHAIN
€ 37.50
7
0211205108
ref: 7
02112-05107
SCREW
€ 2.00
8
1279145040
ref: 8
GUIDE,CAM CHAIN
€ 8.50
9
0151706128
ref: 9
01550-06127
BOLT
€ 2.50
10
0916806009
ref: 10
09168-06023
GASKET (NAS)
€ 2.00
11
1281049051
ref: 11
TENSIONER,CAM CHAIN
€ 92.00
12
0151708168
ref: 12
01550-08167
BOLT
€ 3.00
13
1283047001
ref: 13
12830-0930V
ADJUSTER ASSEMBLY,TENSIONER
€ 167.00
14
1283347001
ref: 14
ROD,PUSH
€ 25.00
15
0944013017
ref: 15
09440-13043
SPRING
€ 14.50
16
1283845001
ref: 16
SCREW
€ 6.00
17
0832211088
ref: 17
08322-01087
WASHER
€ 2.00
18
0831012088
ref: 18
08310-00087
NUT
€ 2.00
19
0928021013
ref: 19
O RING(D:2.4,ID:20.8)
€ 4.50
20
0928006005
ref: 20
O RING(D:1.9,ID:5.7)
€ 2.50
21
0928410006
ref: 21
SEAL,OIL(10X16X4)
€ 4.00
22
0831616068
ref: 22
08319-31067
NUT
€ 2.50
23
1283747000
ref: 23
12837-47010
GASKET,TENSIONER ADJUSTER (MCA)
€ 7.50
24
0912806024
ref: 24
09103-06212
SCREW (6X25)
€ 2.50
