FRAME COVER (MODEL Z)

GS1100GL 1982 (Z) USA (E03)

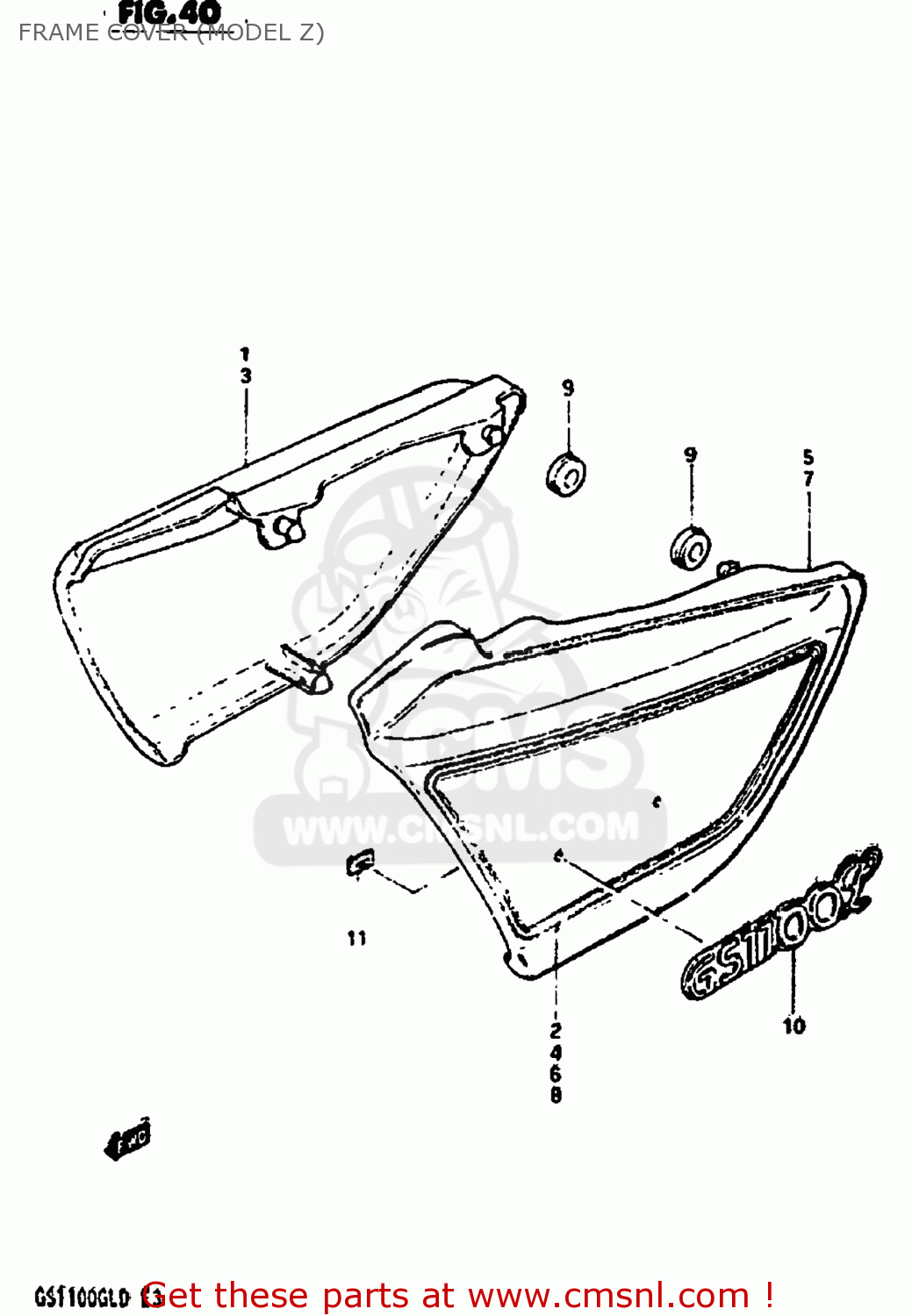

Frame cover (model z) diagram GS1100GL 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) GS1100GL 1982 (Z) USA (E03)

FRAME COVER (MODEL Z) GS1100GL 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4710145860019
ref: 1
47111-45310

COVER,FRAME,RIGHT

€ 65.00

2

681364532081N
ref: 2

TAPE,FRAME COVER

€ 15.50

3

471004587012E
ref: 3
47111-45310

COVER ASSEMBLY,FRAME,RIGHT

€ 65.00

4

681364532084Z
ref: 4

TAPE,FRAME COVER

€ 17.00

5

4720145860019
ref: 5
47211-45310

COVER,FRAME,LEFT

€ 66.50

6

681464532081N
ref: 6

TAPE,FRAME COVER

€ 15.50

7

472004587012E
ref: 7
47211-45310

COVER ASSEMBLY,FRAME,LEFT

€ 66.50

8

681464532084Z
ref: 8

TAPE,FRAME COVER

€ 13.50

9

0932008018
ref: 9

CUSHION

€ 4.00

10

6813149130
ref: 10

EMBLEM,FRAME COVER

€ 26.00

11

0914803002
ref: 11

NUT

€ 3.00
