FUEL TANK (MODEL D)
GS1100GL 1982 (Z) USA (E03)

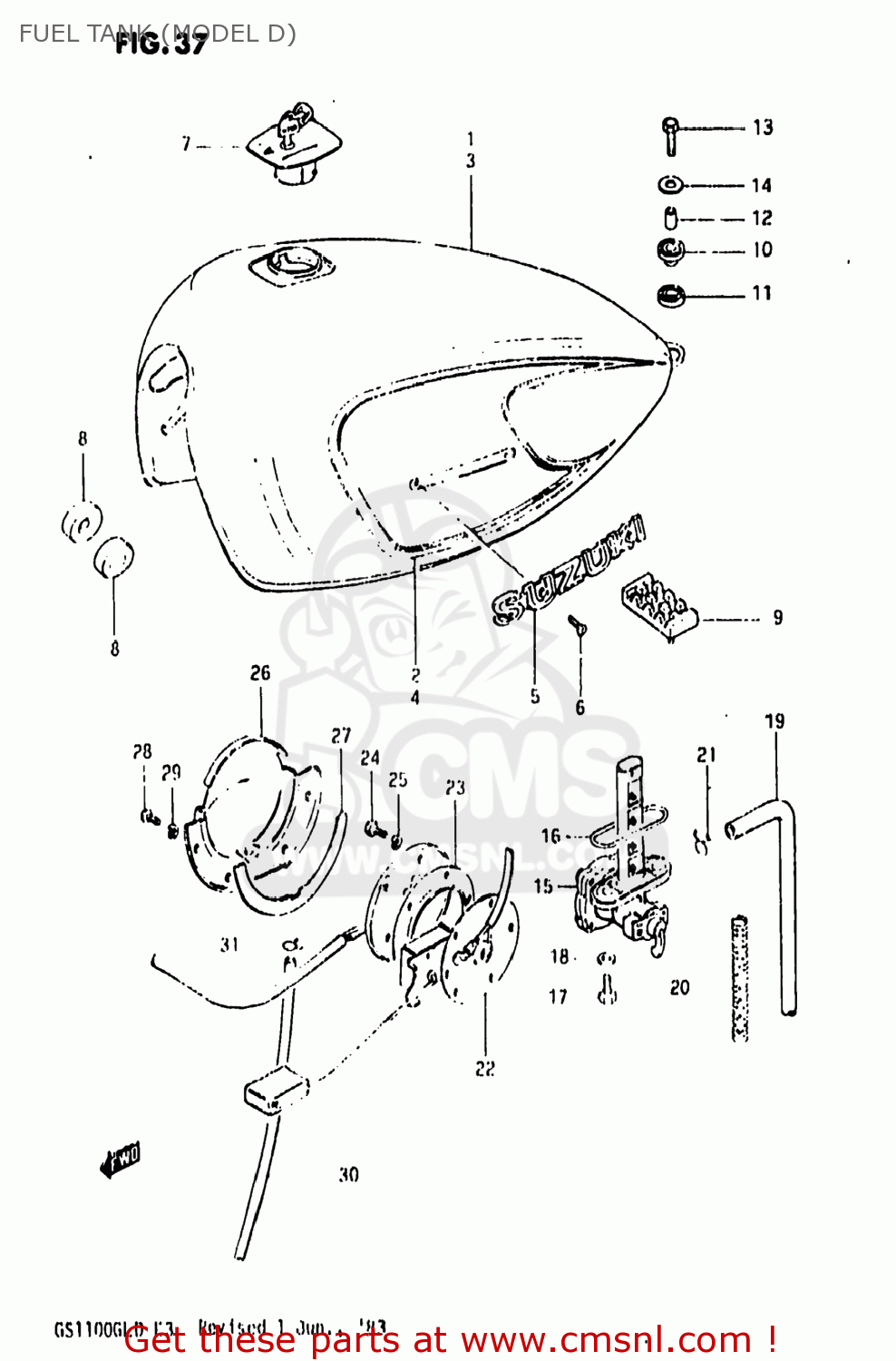

Fuel tank (model d) diagram GS1100GL 1982 (Z) USA (E03)
FUEL TANK (MODEL D) GS1100GL 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
441004912078R
ref: 1
44110-45303-13L
TANK ASSEMBLY,FUEL
€ 324.00
2
681104912078U
ref: 2
TAPE SET,FUEL TANK
€ 27.50
3
441004912088S
ref: 3
44110-45303-13L
TANK ASSEMBLY,FUEL
€ 324.00
4
681104912086C
ref: 4
TAPE SET,FUEL TANK
€ 55.00
5
6811111400
ref: 5
EMBLEM,FUEL TANK
€ 24.50
6
0213203065
ref: 6
02122-0306B
SCREW 3X6
€ 2.00
7
4420049017KEY
ref: 7
44200-49810
CAP SET,FUEL TANK
€ 121.00
8
0932910007
ref: 8
CUSHION
€ 3.00
9
4454134500
ref: 9
CUSHION,FUEL TANK CTR
€ 13.00
10
0932010020
ref: 10
CUSHION
€ 4.00
11
0932014013
ref: 11
CUSHION
€ 3.00
12
0918006072
ref: 12
09180-06271
SPACER
€ 2.00
13
0110706308
ref: 13
01500-06307
BOLT
€ 2.50
14
0916006004
ref: 14
09160-06134
WASHER (6.5X24X1.6)
€ 1.50
15
4430045370
ref: 15
44300-45372
COCK ASSEMBLY,FUEL
€ 104.50
16
4434849170
ref: 16
O RING
€ 3.50
17
0912806006
ref: 17
09128-06057
BOLT(6X20)
€ 2.00
18
0916806010
ref: 18
09168-06023
GASKET
€ 2.00
19
0934307073
ref: 19
09352-70103-00B
HOSE
€ 17.50
20
0944013017
ref: 20
09440-13043
SPRING
€ 14.50
21
0940110403
ref: 21
CLIP
€ 7.00
22
3481045310
ref: 22
GAUGE ASSEMBLY,FUEL LEVEL
€ 43.00
23
3482545100
ref: 23
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
24
0110405108
ref: 24
01500-0510B
BOLT
€ 1.50
25
0832121058
ref: 25
08321-0105A
LOCK WASHER
€ 2.00
26
3488534500
ref: 26
PLATE,FUEL DRAIN
€ 20.50
27
3488834500
ref: 27
GASKET (NAS)
€ 8.50
28
0211205088
ref: 28
02112-05087
SCREW
€ 2.00
29
0832121058
ref: 29
08321-0105A
LOCK WASHER
€ 2.00
30
0934305165
ref: 30
09352-50823-00B
HOSE,FUEL
€ 13.00
31
0940108402
ref: 31
CLIP
€ 1.50
