GS450GA 1982 (Z) USA (E03)

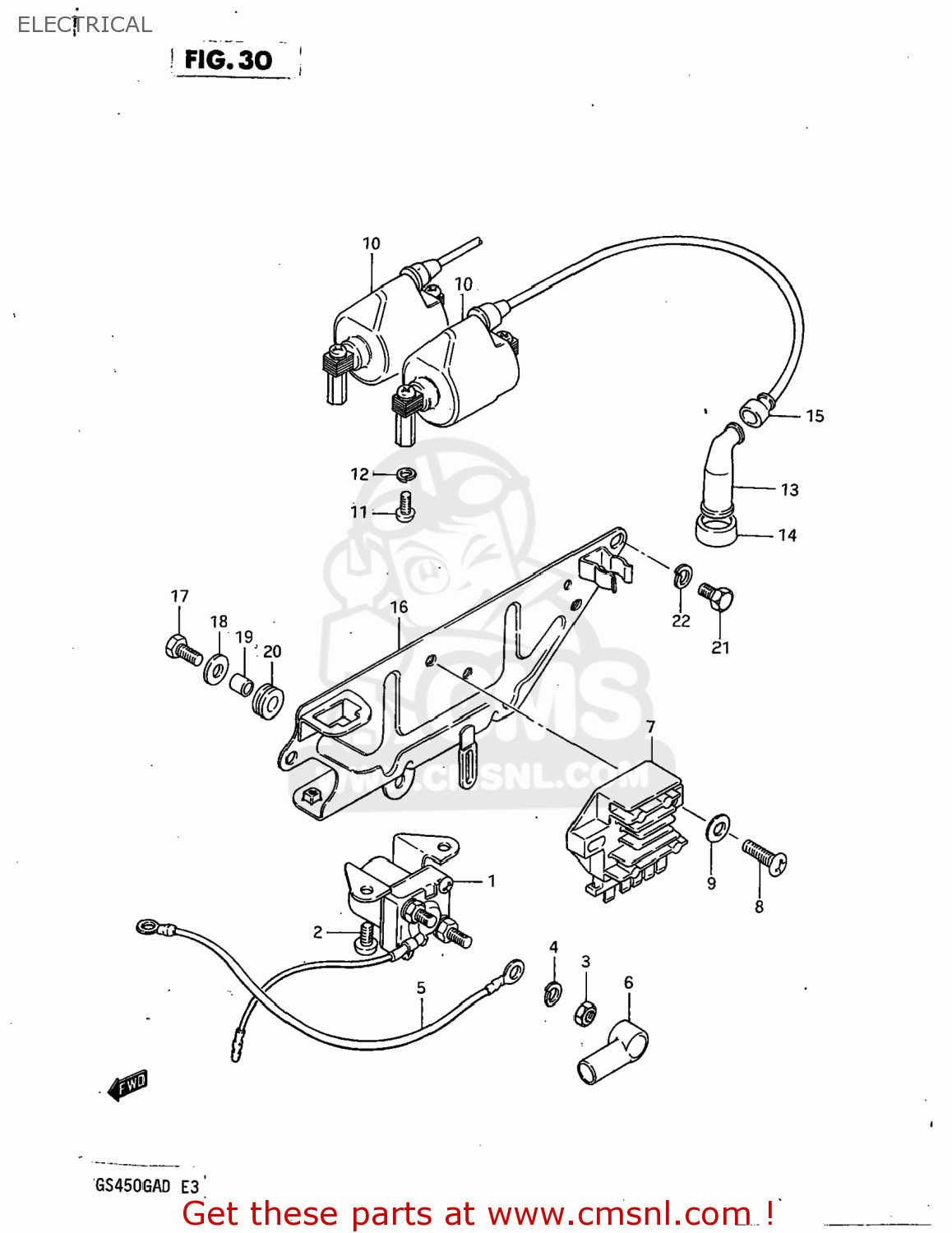

Electrical diagram GS450GA 1982 (Z) USA (E03)
ELECTRICAL GS450GA 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180044500
ref: 1
RELAY,STARTER SWITCH
€ 0.00
2
0211206088
ref: 2
02112-06087
SCREW
€ 2.00
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5-1
3385044110
ref: 5-1
33850-03201
CORD,BATTERY MINUS
€ 8.50
5-2
3385044510
ref: 5-2
33850-01400
CORD,BATTERY MINUS
€ 15.00
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7
3280044130
ref: 7
32800-33401
RECTIFIER ASSEMBLY
€ 235.00
8
0211206208
ref: 8
02112-06207
SCREW
€ 2.00
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
3341044510
ref: 10
33410-44X50
COIL ASSEMBLY,IGNITION
€ 146.50
11
0211205108
ref: 11
02112-05107
SCREW
€ 2.00
12
0832121058
ref: 12
08321-0105A
LOCK WASHER
€ 2.00
13
3351043010
ref: 13
CAP,SPARK PLUG
€ 11.50
14
3354169010
ref: 14
SEAL,SPARK PLUG
€ 5.00
15
3354298000
ref: 15
33542-38B00
SEAL,SPARK PLU
€ 4.50
16
4741044501
ref: 16
47410-44503
HOLDER COMP,ELECTRONIC PARTS
€ 8.50
17
0110706208
ref: 17
01500-06207
BOLT
€ 2.00
18
0916006007
ref: 18
09160-06084
WASHER
€ 2.00
19
0918006044
ref: 19
09180-06248
SPACER (6.1X8X9.5)
€ 2.50
20
0932008001
ref: 20
CUSHION
€ 3.50
21
0110706108
ref: 21
01500-06107
BOLT
€ 2.00
22
0832121068
ref: 22
08321-01067
LOCK WASHER
€ 2.50
