FOOTREST
GS450GA 1982 (Z) USA (E03)

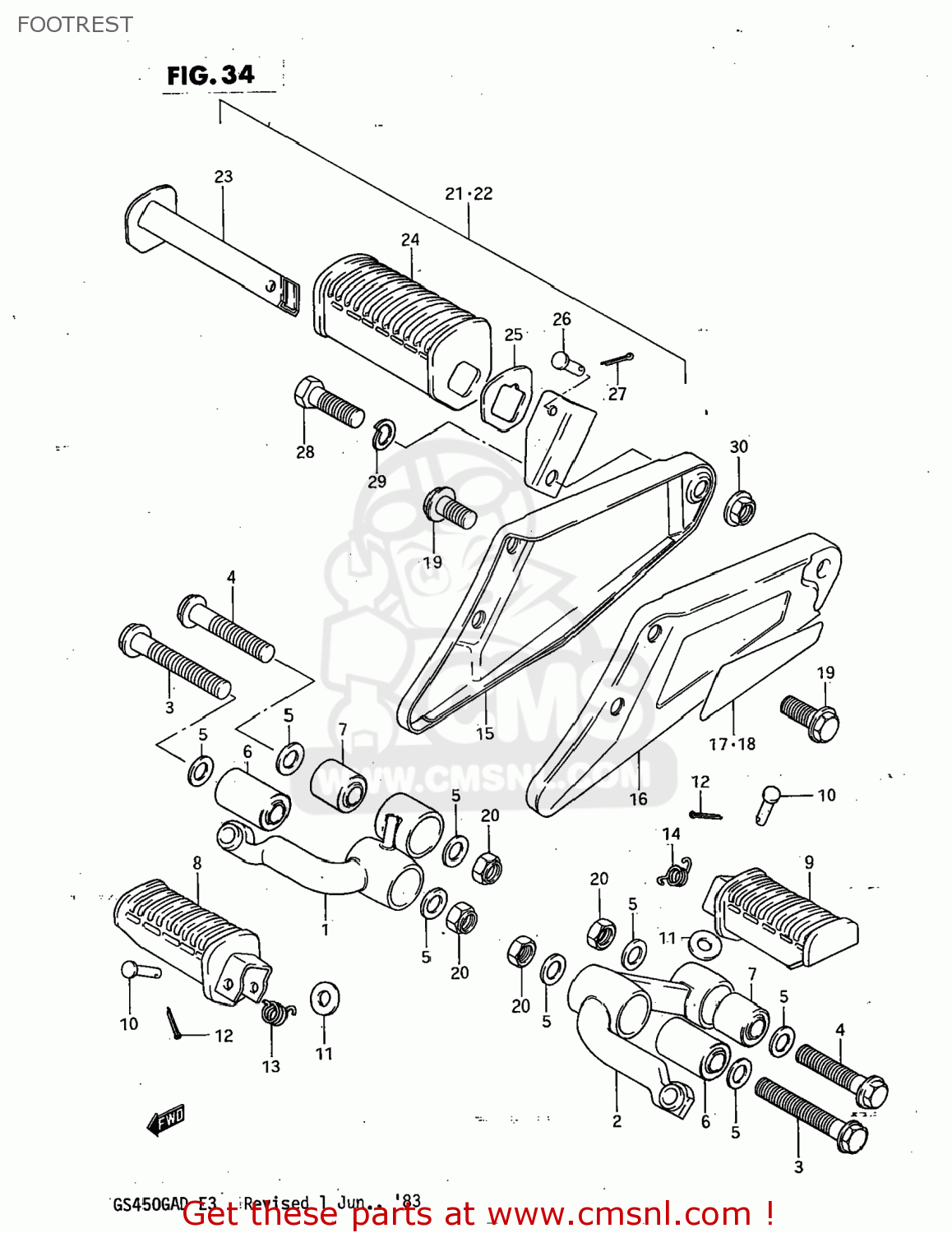

Footrest diagram GS450GA 1982 (Z) USA (E03)
FOOTREST GS450GA 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351044500
ref: 1
BAR,FRONT FOOTREST
€ 29.50
2
4352044500
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 35.00
3
0152710755
ref: 3
01550-10753
BOLT
€ 3.00
4
0152710605
ref: 4
01517-10605
BOLT
€ 3.00
5
0916010067
ref: 5
09160-10005
WASHER
€ 2.00
6
0931910009
ref: 6
BUSHING(10X23X35)
€ 7.50
7
0931910047
ref: 7
BUSH
€ 8.00
8
4355034510
ref: 8
43550-34501
RUBBER,FOOTREST
€ 36.00
9
4356034510
ref: 9
43560-34501
FOOTREST
€ 37.00
10
0920008002
ref: 10
PIN
€ 2.00
11
0832211088
ref: 11
08322-01087
WASHER
€ 2.00
12
0411120208
ref: 12
04111-2020A
PIN 20X20
€ 1.50
13
0944819014
ref: 13
SPRING
€ 6.00
14
0944819015
ref: 14
SPRING
€ 4.00
15
4381044500
ref: 15
BRACKET
€ 29.50
16
4382044500
ref: 16
BRACKET
€ 29.50
17
4383144500
ref: 17
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.00
18
4384144500
ref: 18
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.00
19
0152710207
ref: 19
01550-1020A
BOLT
€ 3.00
20
0831921108
ref: 20
09159-10027
NUT
€ 3.00
21-1
4360049500
ref: 21-1
43600-49502
FOOTREST ASSEMBLY,REAR
€ 43.50
21-2
4360049501
ref: 21-2
43600-49502
FOOTREST ASSEMBLY,REAR
€ 43.50
22-1
4370049500
ref: 22-1
43700-49502
FOOTREST ASSEMBLY,PILLION
€ 23.00
22-2
4370049501
ref: 22-2
43700-49502
FOOTREST ASSEMBLY,PILLION
€ 23.00
23-1
4361049400
ref: 23-1
43610-49401
BAR,REAR FOOTREST
€ 8.50
23-2
4362049400
ref: 23-2
43620-49401
BAR,REAR FOOTREST
€ 8.50
24-1
4361249400
ref: 24-1
43612-49402
RUBBER,REAR FOOTREST
€ 14.50
24-2
4361249401
ref: 24-2
43612-49402
RUBBER,REAR FOOTREST
€ 14.50
25
4363149400
ref: 25
43631-49401
WASHER,REAR FOOTREST RUBBER
€ 3.00
26
0920006010
ref: 26
PIN
€ 2.50
27
0411120208
ref: 27
04111-2020A
PIN 20X20
€ 1.50
28
0110710358
ref: 28
01500-1035B
BOLT,M10X1.25X
€ 2.50
29
0832121108
ref: 29
08321-01107
LOCK WASHER
€ 2.00
30
0831616108
ref: 30
08316-10107
NUT
€ 2.00
