STAND - REAR BRAKE
GS450GA 1982 (Z) USA (E03)

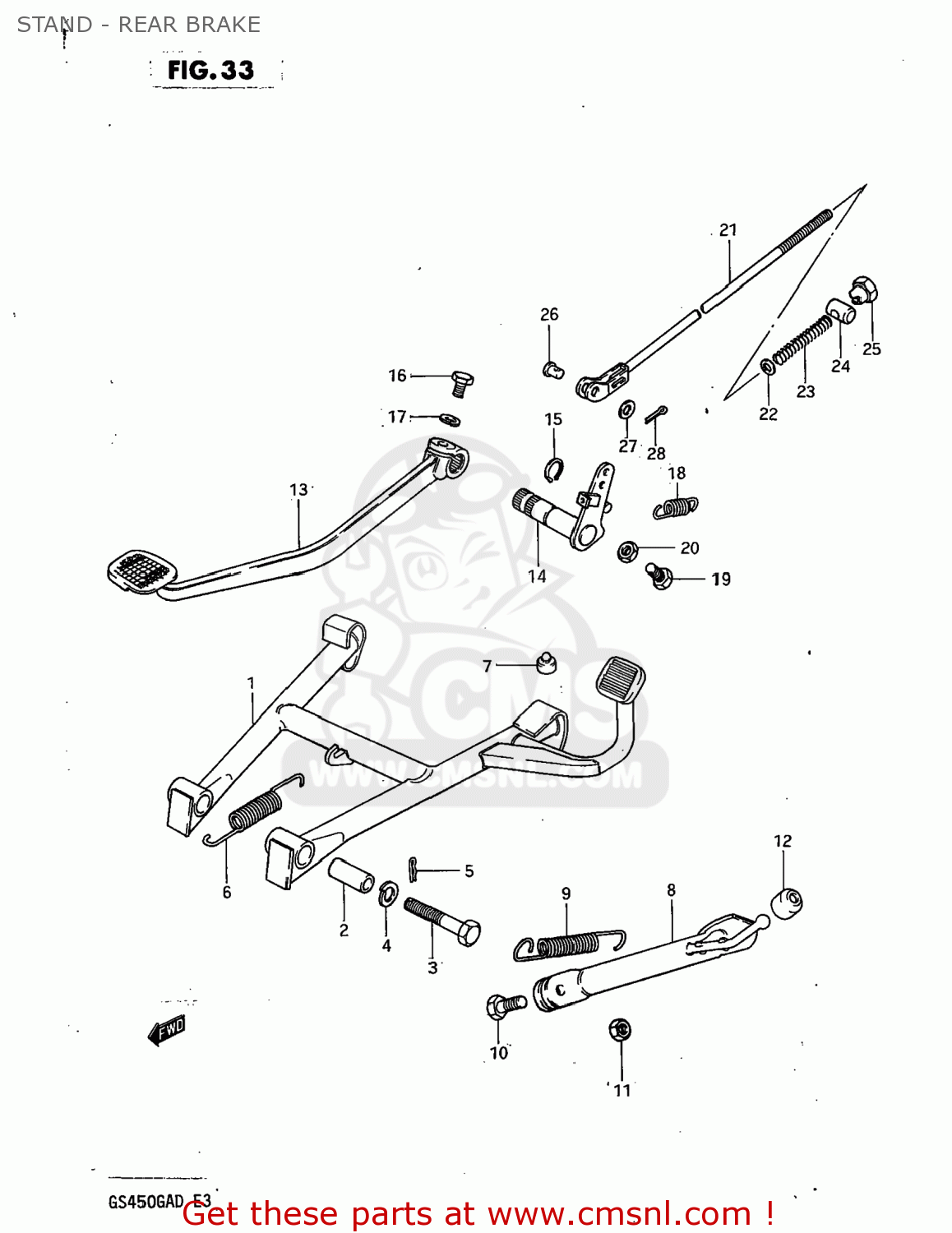

Stand - rear brake diagram GS450GA 1982 (Z) USA (E03)
STAND - REAR BRAKE GS450GA 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210044500
ref: 1
STAND,CENTER
€ 48.50
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110018
ref: 3
09101-10030
BOLT
€ 5.50
4
0832121108
ref: 4
08321-01107
LOCK WASHER
€ 2.00
5
0938510001
ref: 5
09385-10005
CLIP
€ 1.50
6
0944318003
ref: 6
09443-18006-XC0
SPRING
€ 5.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8
4231044500
ref: 8
STAND,SIDE
€ 18.00
9
0944315014
ref: 9
SPRING
€ 2.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831022108
ref: 11
08310-00107
NUT
€ 2.50
12
0932007001
ref: 12
CUSHION
€ 4.00
13
4311044500
ref: 13
PEDAL,BRAKE
€ 47.50
14
4312044500
ref: 14
ARM,BRAKE PEDAL
€ 11.50
15
0833111209
ref: 15
08331-3120A
CIRCLIP
€ 2.50
16
0110708258
ref: 16
01500-08257
BOLT
€ 2.50
17
0832121088
ref: 17
08321-01087
LOCK WASHER
€ 2.00
18
0944314020
ref: 18
09443-14015
SPRING
€ 3.00
19
0110706208
ref: 19
01500-06207
BOLT
€ 2.00
20
0831011068
ref: 20
08310-00067
NUT
€ 2.50
21
4330044500
ref: 21
ROD ASSEMBLY,REAR BRAKE
€ 9.00
22
0832221068
ref: 22
08322-01067
WASHER
€ 2.00
23
0944009004
ref: 23
SPRING
€ 2.00
24-1
0920913003
ref: 24-1
09209-13018
PIN
€ 3.50
24-2
0920913005
ref: 24-2
09209-13018
PIN
€ 3.50
25-1
0915006001
ref: 25-1
09150-06010
NUT
€ 3.50
25-2
0915006009
ref: 25-2
09150-06010
NUT (6MM)
€ 3.50
26
0920006013
ref: 26
PIN(L:13.5)
€ 2.00
27
0832221068
ref: 27
08322-01067
WASHER
€ 2.00
28
0411120208
ref: 28
04111-2020A
PIN 20X20
€ 1.50
