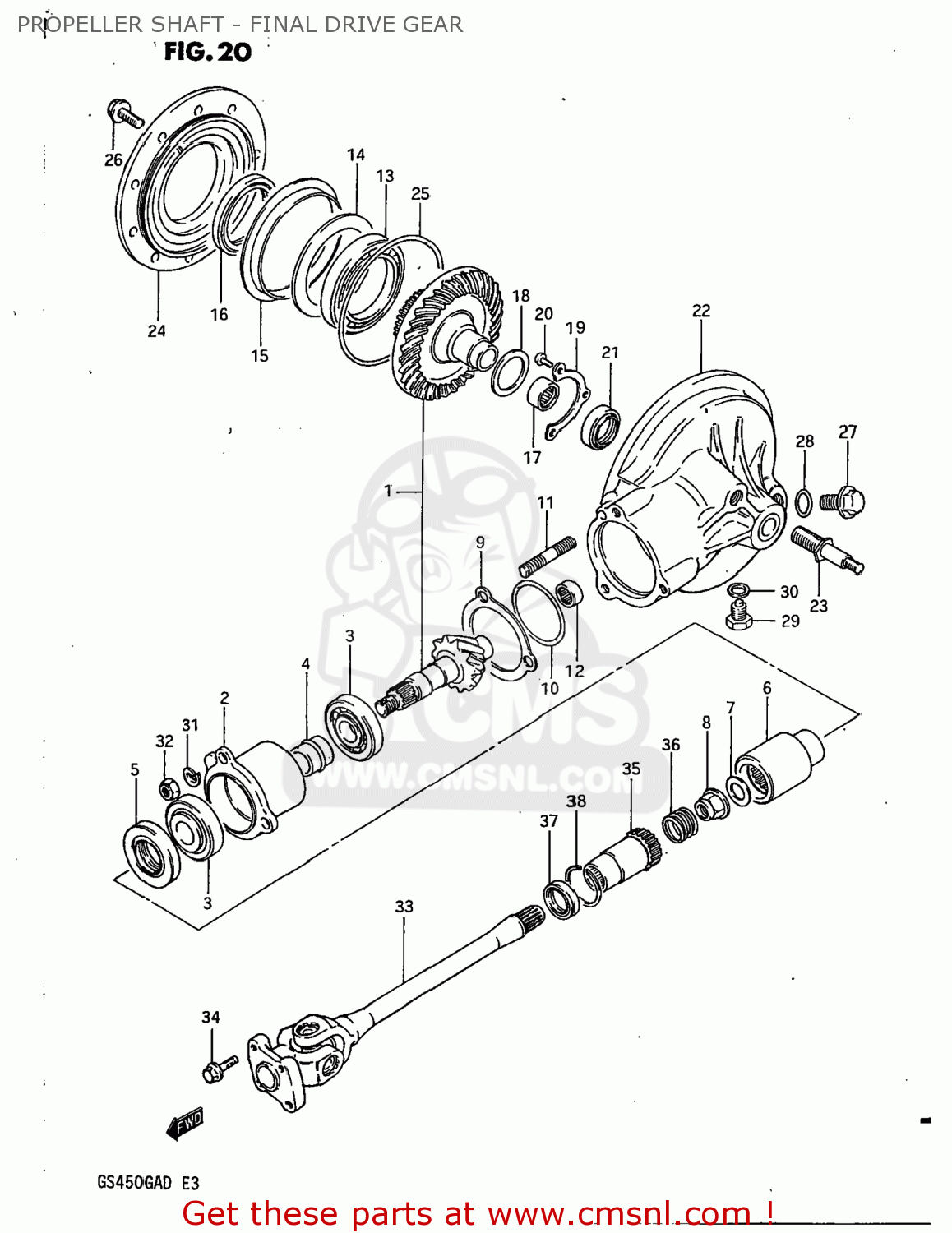

PROPELLER SHAFT - FINAL DRIVE GEAR - GS450GA 1982 (Z) USA (E03)

ref

part #

description

quantity

2730034821
ref:

GEAR/CASE SET FINAL BEVEL

€ 852.00

1

2730034810
ref: 1

GEAR SET,FINAL BEVEL (N

€ 658.50

2

2744134200
ref: 2

HOUSING,DRIVE GEAR

€ 0.00

3

0926525014
ref: 3
09265-25024

BEARING

€ 44.00

4

0918025059
ref: 4

SPACER

€ 9.50

5

0928332017
ref: 5

SEAL,OIL(32X54X7)

€ 16.50

6

2717245100
ref: 6

GEAR,FINAL DRIVE

€ 47.00

7

0916014021
ref: 7

WASHER(14X29X4)

€ 5.00

8

0915914010
ref: 8

NUT

€ 11.00

9-1

2744545100
ref: 9-1

SHIM,DRIVE GEAR HOUSING

€ 4.00

9-2

2744545102
ref: 9-2

SHIM,DRIVE GEAR HOUSING

€ 4.50

9-3

2744545101
ref: 9-3

SHIM,DRIVE GEAR HOUSING

€ 5.50

9-4

2744545103
ref: 9-4

SHIM,DRIVE GEAR HOUSING

€ 5.50

10

0928063004
ref: 10

O RING(D:2.4,ID:62.6)

€ 9.50

11

0910810049
ref: 11

STUD

€ 0.00

12

0926316018
ref: 12

BEARING

€ 21.00

13

0926270001
ref: 13

BEARING(70X110X13)

€ 78.50

14-1

2732734200
ref: 14-1

SHIM,DRIVEN GEAR BEARING T0.35

€ 2.50

14-2

2732734210
ref: 14-2

SHIM,DRIVEN GEAR BEARING T.040

€ 3.00

14-3

2732734220
ref: 14-3

SHIM,DRIVEN GEAR BEARING T0.50

€ 3.00

14-4

2732734230
ref: 14-4

SHIM,DRIVEN GEAR BEARING T0.60

€ 3.00

15

2732834200
ref: 15

PLATE,FINAL DRIVEN BRG OIL

€ 4.00

16

0928970001
ref: 16

SEAL,OIL(70X96X16)

€ 41.50

17

0926332007
ref: 17

BEARING(32X46X17.7)

€ 44.00

18-1

2732634201
ref: 18-1

SHIM,FINAL DRIVEN GEAR

€ 2.50

18-2

2732634211
ref: 18-2

SHIM,FINAL DRIVEN GEAR

€ 2.50

18-3

2732634221
ref: 18-3

SHIM,FINAL DRIVEN GEAR

€ 3.50

18-4

2732634231
ref: 18-4

SHIM,FINAL DRIVEN GEAR

€ 2.50

18-5

2732634241
ref: 18-5

SHIM,FINAL DRIVEN GEAR

€ 3.50

19

2732934200
ref: 19

RETAINER,FINAL DRIVEN GEAR BRG

€ 4.50

20

0211206128
ref: 20
02112-06127

SCREW 6X12

€ 2.00

21

0928330028
ref: 21

SEAL,OIL(30X42X7)

€ 7.50

22

2745034202
ref: 22

CASE,FINAL GEAR

€ 0.00

23

0910810025
ref: 23

STUD

€ 16.00

24

2746034201
ref: 24
27460-34202

CASE,FINAL GEAR BEARING

€ 74.50

25

0928000015
ref: 25

O RING(D:3.5,ID:131.6)

€ 9.50

26

0151708258
ref: 26
01550-08257

BOLT

€ 2.50

27

0924718001
ref: 27

PLUG

€ 8.00

28

0928018004
ref: 28

O RING(D:2.4,ID:17.8)

€ 5.50

29

0924714014
ref: 29
09247-14036

PLUG

€ 5.50

30

0916814004
ref: 30

GASKET(14X19.2X2) (NAS)

€ 2.50

31

0832131108
ref: 31
08321-01107

LOCK WASHER

€ 2.00

32

0915910027
ref: 32

NUT

€ 3.00

33

2710044500
ref: 33

SHAFT ASSEMBLY,PROPELLER

€ 136.00

34

0910308050
ref: 34

BOLT(8X17)

€ 5.50

35

2717145101
ref: 35

COUPLING,PROPELLER SHAFT

€ 38.00

36

0944027005
ref: 36

SPRING

€ 3.50

37

0928330026
ref: 37

SEAL,OIL(30X40.5X5.5)

€ 9.00

38

0938140003
ref: 38

CIRCLIP

€ 5.00
