GENERATOR
GS450GA 1982 (Z) USA (E03)

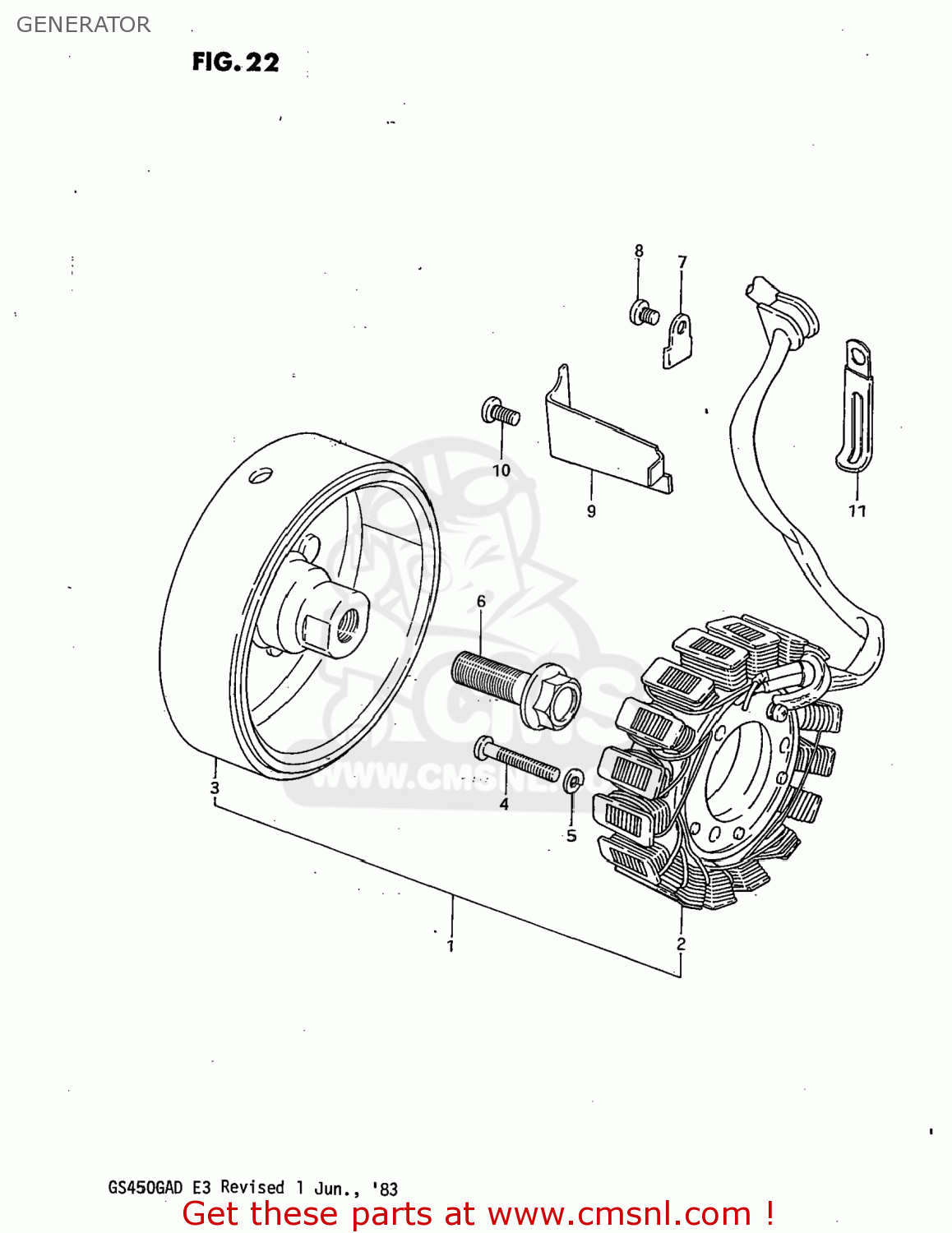

Generator diagram GS450GA 1982 (Z) USA (E03)
GENERATOR GS450GA 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3140047020
ref: 1-1
31401-47030
GENERATOR ASSEMBLY
€ 371.00
1-2
3140047021
ref: 1-2
31401-47030
GENERATOR ASSEMBLY
€ 371.00
2-1
3140147020
ref: 2-1
31401-47030
STATOR ASSEMBLY
€ 371.00
2-2
3140147021
ref: 2-2
31401-47030
STATOR ASSEMBLY
€ 371.00
3
3140245090
ref: 3
31402-45030
ROTOR ASSEMBLY
€ 385.00
4
0211205308
ref: 4
02112-0530A
SCREW
€ 1.50
5
0832121058
ref: 5
08321-0105A
LOCK WASHER
€ 2.00
6
0910312004
ref: 6
BOLT(12X40)
€ 3.00
7
3149745000
ref: 7
CLAMP,GENERATOR LEAD WIRE
€ 1.50
8
0211205088
ref: 8
02112-05087
SCREW
€ 2.00
9
3149845000
ref: 9
CLAMP,GENERATOR LEAD WIRE
€ 2.00
10
0211206108
ref: 10
02112-06107
SCREW
€ 1.50
11
0940406401
ref: 11
09404-06432
CLAMP L:35
€ 2.50
