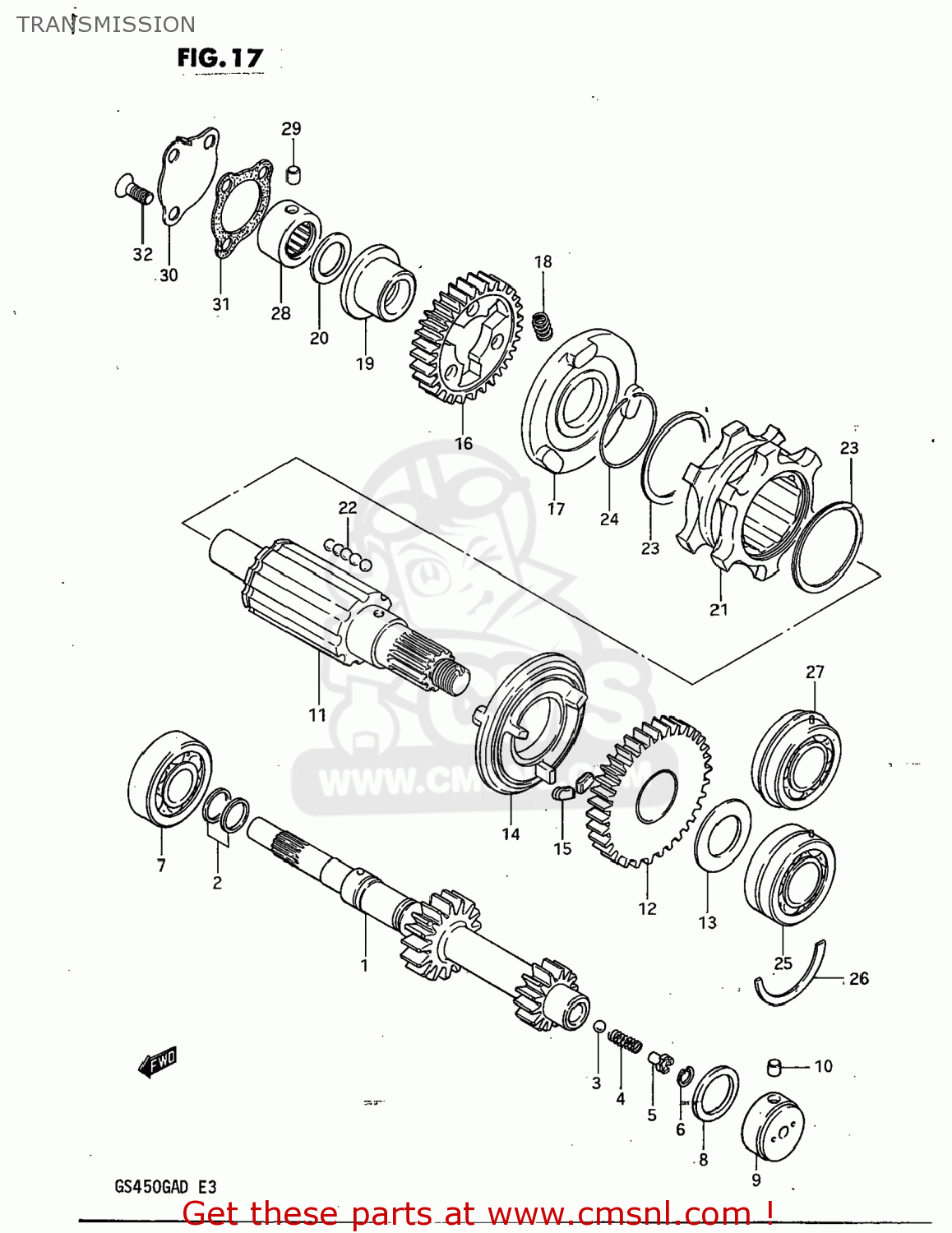

TRANSMISSION

ref

part #

description

quantity

1

2412044500
ref: 1

SHAFT,COUNTER

€ 63.00

2

2412244500
ref: 2

NO PRODUCT DESCRIPTION AVAILABLE

€ 13.00

3

0611109004
ref: 3

BALL

€ 1.00

4

0944006024
ref: 4

SPRING

€ 1.00

5

2412344500
ref: 5

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.00

6

0833141106
ref: 6

CIRCLIP

€ 0.00

7

0926220065
ref: 7
09262-20145

BEARING

€ 24.00

8

2412444500
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.00

9

0926320026
ref: 9
09263-20025

ROLLER BEARING (20X34X2

€ 37.00

10

0422107129
ref: 10

PIN

€ 1.50

11

2413144500
ref: 11

SHAFT,DRIVE

€ 64.50

12

2431044500
ref: 12

GEAR,FIRST DRIVEN

€ 46.50

13

0821125403
ref: 13

WASHER

€ 3.00

14

2431244500
ref: 14

BUSHING,FIRST DRIVEN GEAR

€ 37.50

15

2431344500
ref: 15

DAMPER,FIRST DRIVEN

€ 3.50

16

2432144500
ref: 16

GEAR,SECOND DRIVEN

€ 55.50

17

2432244503
ref: 17

DOG PLATE,SECOND DRIVEN

€ 44.50

18

0944009016
ref: 18

SPRING

€ 1.00

19

0930120004
ref: 19

BUSHING

€ 13.00

20

2412444500
ref: 20

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.00

21

2433144500
ref: 21

SLIDING DOG

€ 56.50

22

0611107004
ref: 22

BALL

€ 1.50

23

0938152007
ref: 23

CIRCLIP

€ 2.50

24

0938040002
ref: 24

CIRCLIP

€ 0.00

25

0926725004
ref: 25

BEARING

€ 37.00

26

0939058001
ref: 26

C RING

€ 2.00

27

0926725006
ref: 27
09267-25014

BALL BEARING 25X52X21

€ 61.50

28

0926320038
ref: 28

BEARING(20X34X16)

€ 30.50

29

0422107129
ref: 29

PIN

€ 1.50

30

2474144500
ref: 30

PLATE,COUNTERSHAFT BEARING

€ 3.00

31

2476244500
ref: 31

GASKET,DRIVESHAFT BEARING RIGHT,TOP

€ 1.50

32

0212206168
ref: 32
02122-06167

SCREW

€ 2.00
