OIL COOLER
GS450GA 1982 (Z) USA (E03)

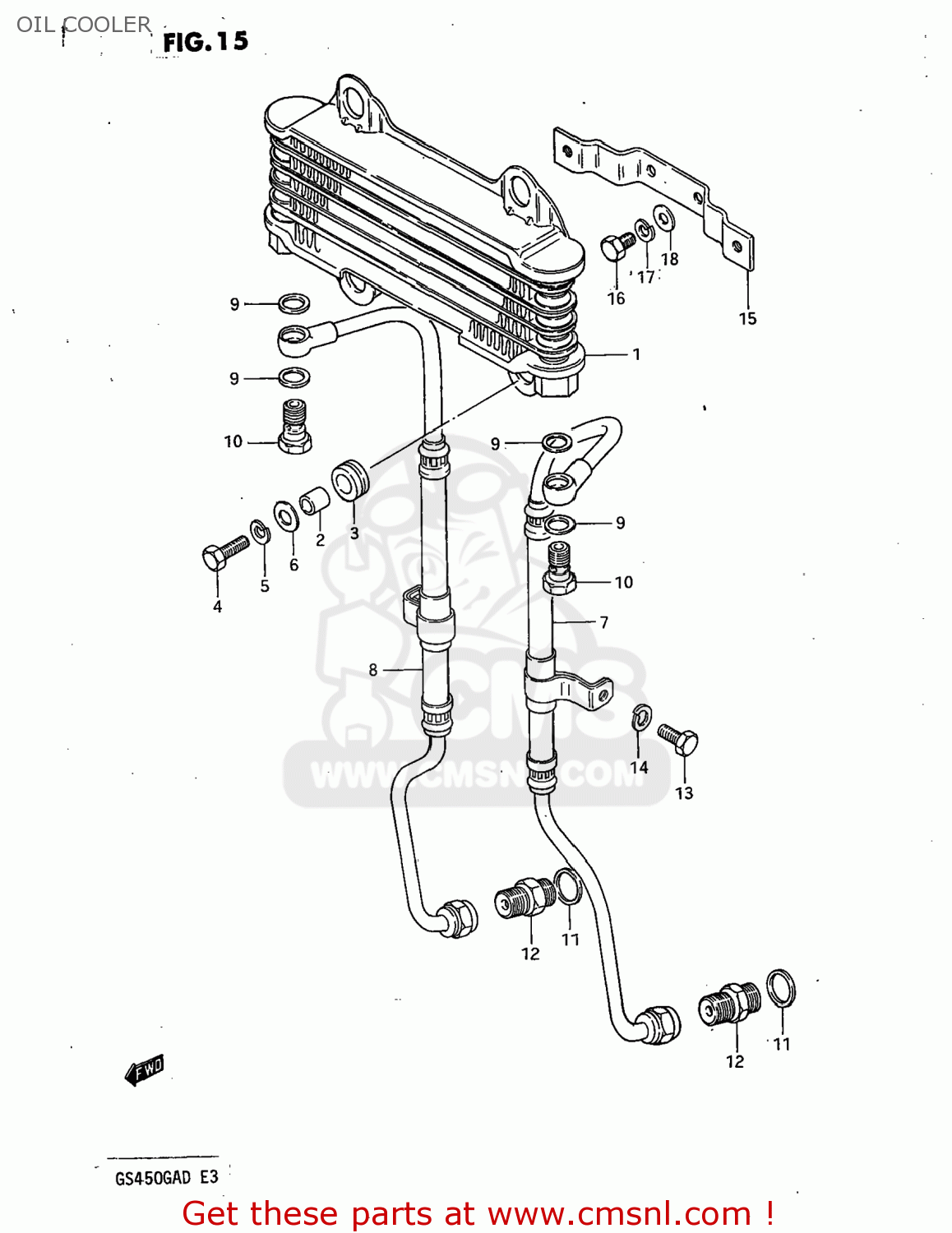

Oil cooler diagram GS450GA 1982 (Z) USA (E03)
OIL COOLER GS450GA 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660044500
ref: 1
16600-31300
COOLER ASSEMBLY,OIL
€ 349.00
2
0918006030
ref: 2
09180-06310
SPACER (6.8X10X10)
€ 2.00
3
0932010015
ref: 3
CUSHION
€ 2.50
4
0110706205
ref: 4
01500-0620A
BOLT
€ 2.00
5
0832121065
ref: 5
08321-0106A
LOCK WASHER
€ 2.00
6
0916006039
ref: 6
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
7
1646044500
ref: 7
HOSE,ENGINE OIL,RIGHT
€ 77.00
8
1647044500
ref: 8
HOSE,ENGINE OIL,LEFT
€ 82.00
9
0916812010
ref: 9
GASKET(12X16.5X1.5) (NAS)
€ 7.00
10
0936012003
ref: 10
BOLT UNION
€ 1.50
11
0916814011
ref: 11
GASKET(14X20X1.5) (NAS)
€ 2.00
12
0936014003
ref: 12
BOLT UNION
€ 3.00
13
0110706125
ref: 13
01500-0612A
BOLT
€ 2.00
14
0832121065
ref: 14
08321-0106A
LOCK WASHER
€ 2.00
15
1662044500
ref: 15
BRACKET,OIL COOLER
€ 3.00
16
0110706125
ref: 16
01500-0612A
BOLT
€ 2.00
17
0832121065
ref: 17
08321-0106A
LOCK WASHER
€ 2.00
18
0832221065
ref: 18
08322-0106B
WASHER
€ 2.00
