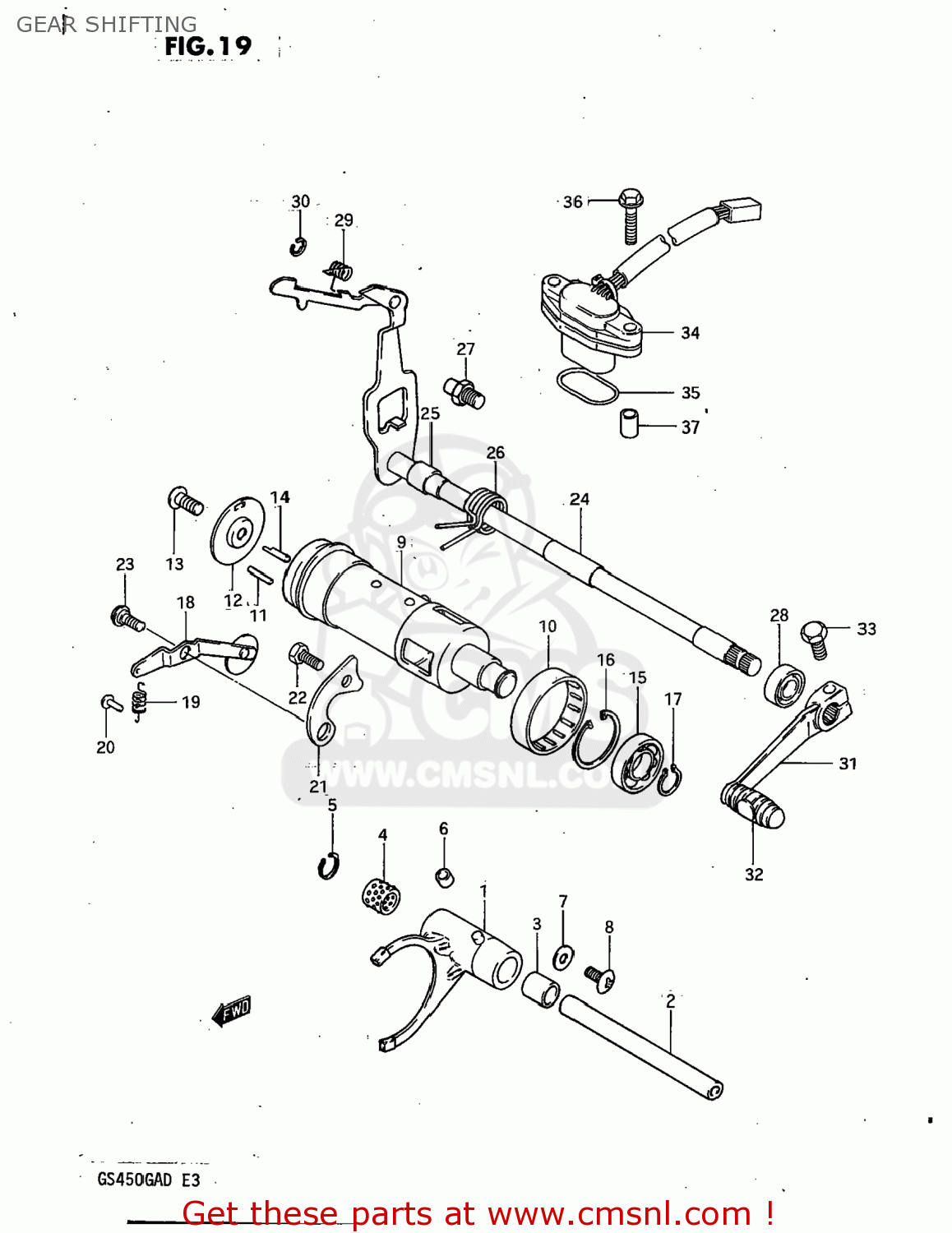

GEAR SHIFTING

ref

part #

description

quantity

1

2521144500
ref: 1

FORK,GEAR SHIFT

€ 41.50

2

2541144500
ref: 2
25411-24501

SHAFT,GEAR SHIFT FORK

€ 15.00

3

0918010044
ref: 3
09180-10138

SPACER (10X14X17)

€ 5.50

4

0926910002
ref: 4

BEARING

€ 14.00

5

0938114002
ref: 5

CIRCLIP

€ 1.50

6

0918006108
ref: 6
09180-06124

SPACER

€ 1.50

7

0821106141
ref: 7

WASHER

€ 2.50

8

0214206108
ref: 8
02142-06107

SCREW

€ 2.00

9

2531044990
ref: 9
25310-44501

CAM,GEAR SHIFT

€ 70.00

10

0926340001
ref: 10

BEARING(40X47X12)

€ 21.00

11

0926104001
ref: 11

PIN(4X18.5)

€ 1.50

12

2532244000
ref: 12

RETAINER,GEAR SHIFT CAM DR PIN

€ 2.50

13

0211206168
ref: 13
02112-06167

SCREW

€ 2.50

14

0920904013
ref: 14

PIN

€ 5.00

15

0811062020
ref: 15
09262-15031

BALL BEARING

€ 14.50

16

0833121358
ref: 16
08331-41359

CIRCLIP

€ 2.00

17

0833131159
ref: 17
08331-3115A

CIRCLIP,15MM

€ 2.00

18

2535044000
ref: 18

STOPPER,GEAR SHIFT CAM NO.1

€ 10.50

19

0944309007
ref: 19

SPRING

€ 14.50

20

0922004001
ref: 20
09223-04001

RIVET

€ 1.50

21

2534144000
ref: 21
25341-33300

GUIDE,GEAR SHIFTING CABLE

€ 6.00

22

0110706168
ref: 22
01500-06167

BOLT, UPPER

€ 3.00

23

0911106019
ref: 23
09111-06054

BOLT

€ 1.50

24

2551044501
ref: 24

SHAFT,GEAR SHIFT

€ 36.00

25

0918012068
ref: 25

SPACER(12X20X15.3)

€ 3.00

26

0944426012
ref: 26
09444-26013

SPRING

€ 3.50

27

2567101000
ref: 27
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0928512002
ref: 28
09285-12006

OIL SEAL

€ 7.00

29

0944813008
ref: 29

SPRING

€ 7.00

30

0833211078
ref: 30
08332-1107A

E RING

€ 2.00

31

2560044500
ref: 31

LEVER ASSEMBLY,GEAR SHIFTING

€ 40.50

32

2565249000
ref: 32
25652-20C00

RUBBER,GEAR SHIFT PEDAL

€ 8.00

33

0910006091
ref: 33
01500-06207

BOLT

€ 2.00

34-1

3772044500
ref: 34-1
37720-44501

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 47.00

34-2

3772044501
ref: 34-2

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 47.00

35

3772244500
ref: 35

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.00

36

0910305001
ref: 36

BOLT

€ 1.00

37

0920608001
ref: 37

PIN(6.2X8X11)

€ 2.00

all assemblies
