MUFFLER
GS450GA 1982 (Z) USA (E03)

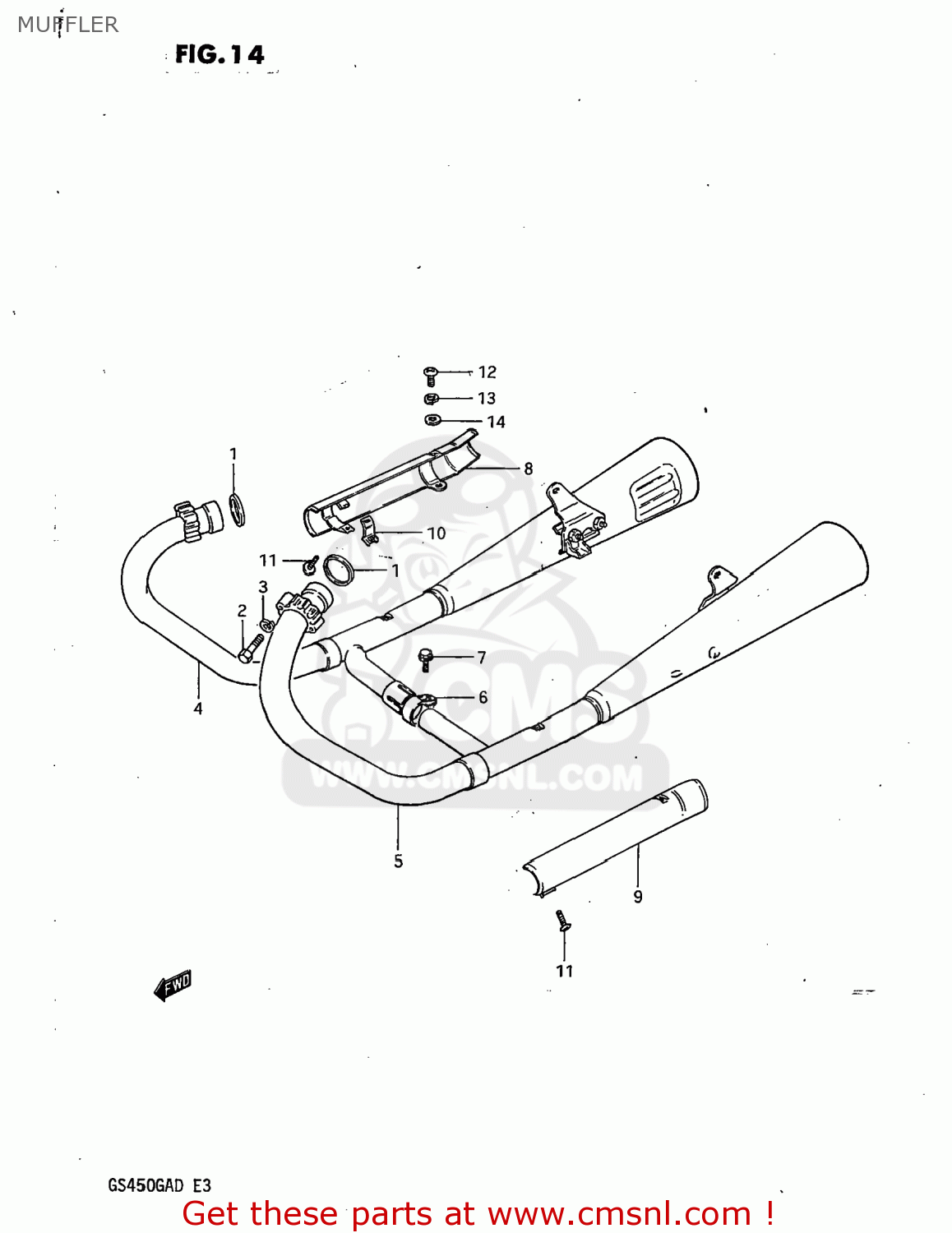

Muffler diagram GS450GA 1982 (Z) USA (E03)
MUFFLER GS450GA 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418111020
ref: 1
14181-01D00
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0110708408
ref: 2
01500-0840A
BOLT 8X40
€ 3.00
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
1430144500
ref: 4
14301-44510-H01
MUFFLER ASSEMBLY,RIGHT
€ 141.00
5
1430244500
ref: 5
14302-44510-H01
MUFFLER ASSEMBLY,LEFT
€ 130.50
6
0940235601
ref: 6
CLAMP
€ 5.00
7
0151706258
ref: 7
01550-06257
BOLT
€ 2.50
8
1478044500
ref: 8
COVER,MUFFLER,RIGHT
€ 20.50
9
1479044500
ref: 9
COVER,MUFFLER
€ 13.50
10
1478544100
ref: 10
CLAMP,MUFFLER COVER
€ 8.50
11
0211205168
ref: 11
02112-05167
SCREW
€ 2.50
12
0211205088
ref: 12
02112-05087
SCREW
€ 2.00
13
0832121058
ref: 13
08321-0105A
LOCK WASHER
€ 2.00
14
0832221058
ref: 14
08322-01057
WASHER
€ 2.50
