CONTACT BRAKER (MODEL T)

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

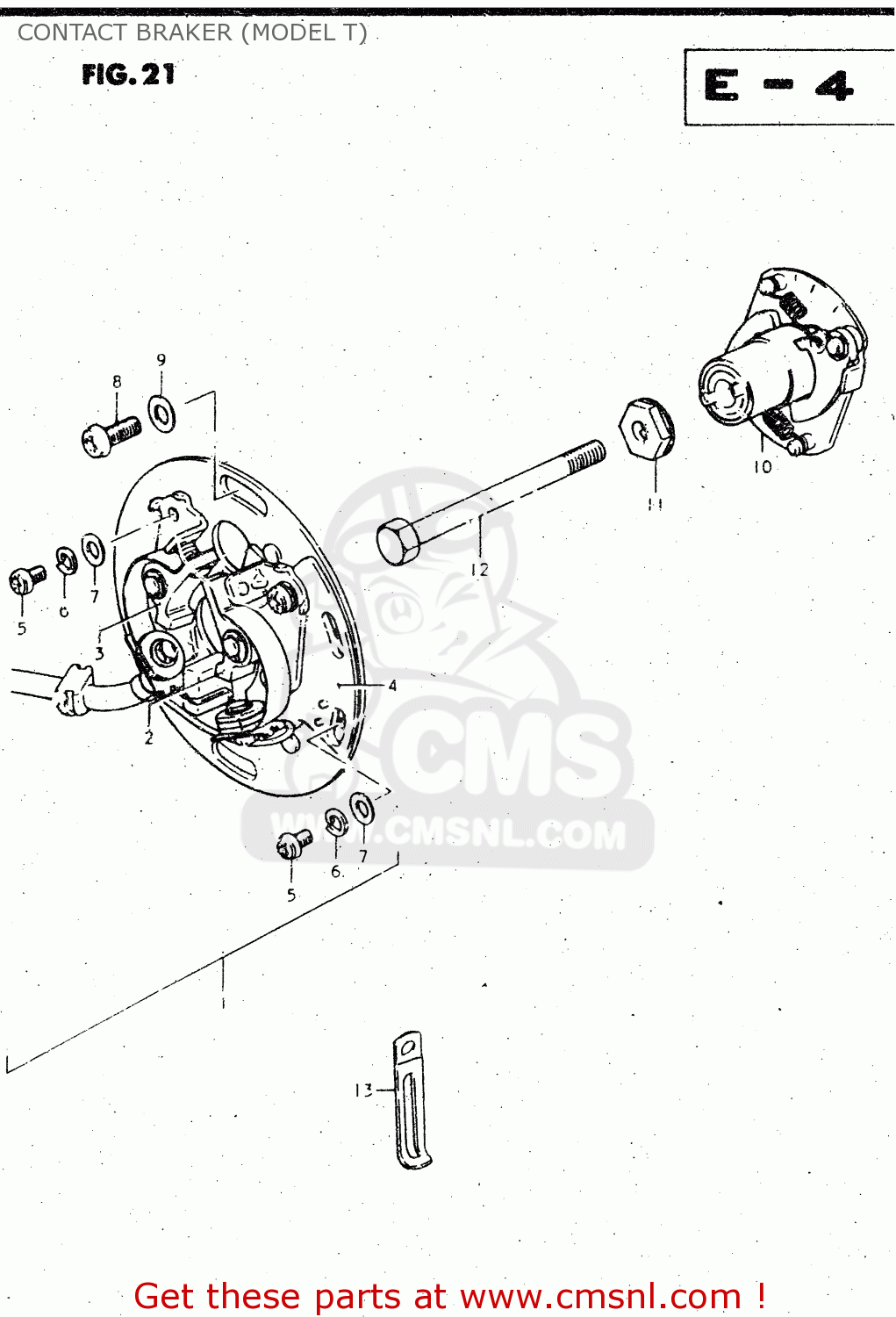

Contact braker (model t) diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

CONTACT BRAKER (MODEL T) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
CONTACT BRAKER (MODEL T) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
CONTACT BRAKER (MODEL T) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1
3311044110
ref: 1
BREAKER ASSY, CONTACT
3311044110
€ 568.50
2
3314044110
ref: 2
POINT ASSY,CONTACT,R
3314044110
€ 35.50
3
3316044110
ref: 3
POINT ASSY,CONTACT,L
3316044110
€ 83.00
4
3314344020
ref: 4
PLATE,CONTACT POINT
3314344020
€ 16.00
5
0211204068
ref: 5
SCREW 4X6
0211204068
€ 2.00
6
0832121048
ref: 6
LOCK WASHER
0832121048
€ 2.00
7
0832221048
ref: 7
WASHER
0832221048
€ 2.00
8
0912505024
ref: 8
SCREW(5X12)
0912505024
€ 2.00
9
0916005027
ref: 9
WASHER
€ 2.50
10
3312044110
ref: 10
GOVERNOR ASSY, ADVANCE
3312044110
€ 108.50
11
3346544100
ref: 11
WASHER,CONTACT BREAKER
€ 37.50
12
0110706608
ref: 12
BOLT 6X60
0110706608
€ 2.50
13
0940406401
ref: 13
CLAMP L:35
0940406401
€ 2.50
