FRONT FORK (MODEL T, X)

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

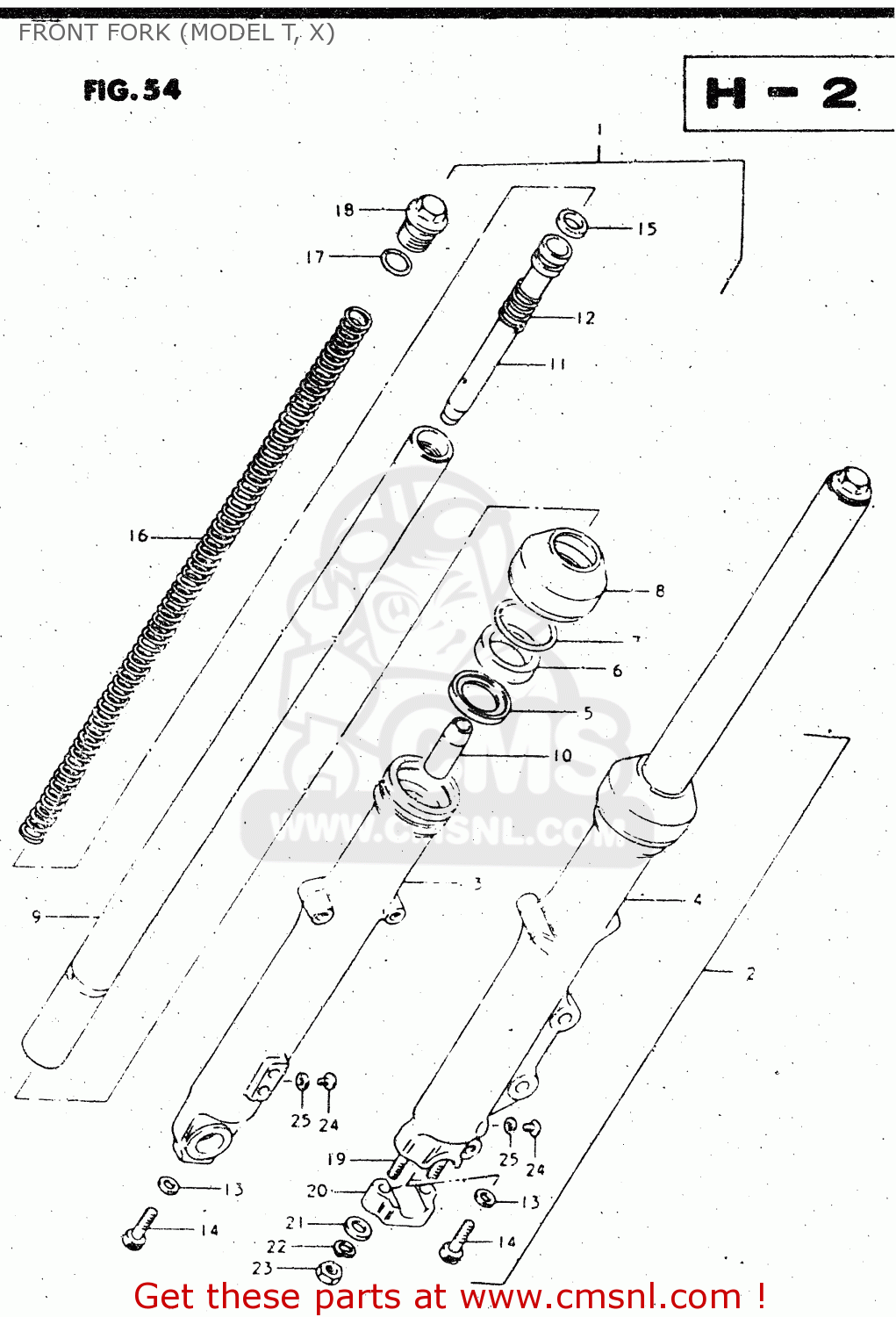

Front fork (model t, x) diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

FRONT FORK (MODEL T, X) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

FRONT FORK (MODEL T, X) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

prices are in EUR

ref

part #

description

quantity

1

5110344210
ref: 1

DAMPER ASSEMBLY,RIGHT

€ 307.50

2

5110444210
ref: 2

DAMPER ASSEMBLY,LEFT

€ 0.00

3

5113044033
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 129.00

4

5114044031
ref: 4

TUBE,FORK,LEFT,OUTER

€ 107.50

5

5116844030
ref: 5

SPACER,OIL SEAL

€ 4.50

6

5115344031
ref: 6
TO 51153-37310

OIL SEAL,FRONT FORK

€ 15.00

7

5115633130
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157133131
ref: 8
TO 51571-37310

BOOT

€ 22.00

9

5111044200
ref: 9

TUBE,FORK,INNER

€ 185.50

10

5119548000
ref: 10

PIECE,OIL LOCK

€ 8.50

11

5114644731
ref: 11

CYLINDER,FRONT FORK

€ 42.00

12

5117736030
ref: 12

SPRING,REBOUND

€ 4.50

13

5114831030
ref: 13

GASKET (NAS)

€ 4.00

14

5114748130
ref: 14

BOLT(8X27)

€ 3.50

15

5119633130
ref: 15

RING,PISTON

€ 7.50

16

5117144210
ref: 16

SPRING

€ 0.00

17

5118131030
ref: 17

O RING

€ 3.50

18

5135133130
ref: 18

BOLT

€ 30.50

19

0142108258
ref: 19

STUD 8X25

€ 2.50

20

5113231030
ref: 20

HOLDER,AXLE

€ 31.50

21

0832221088
ref: 21

WASHER

€ 2.00

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0914008005
ref: 23

NUT (8MM)

€ 1.50

24

0211204068
ref: 24

SCREW 4X6

€ 2.00

25

5118333030
ref: 25

GASKET (NAS)

€ 6.50
