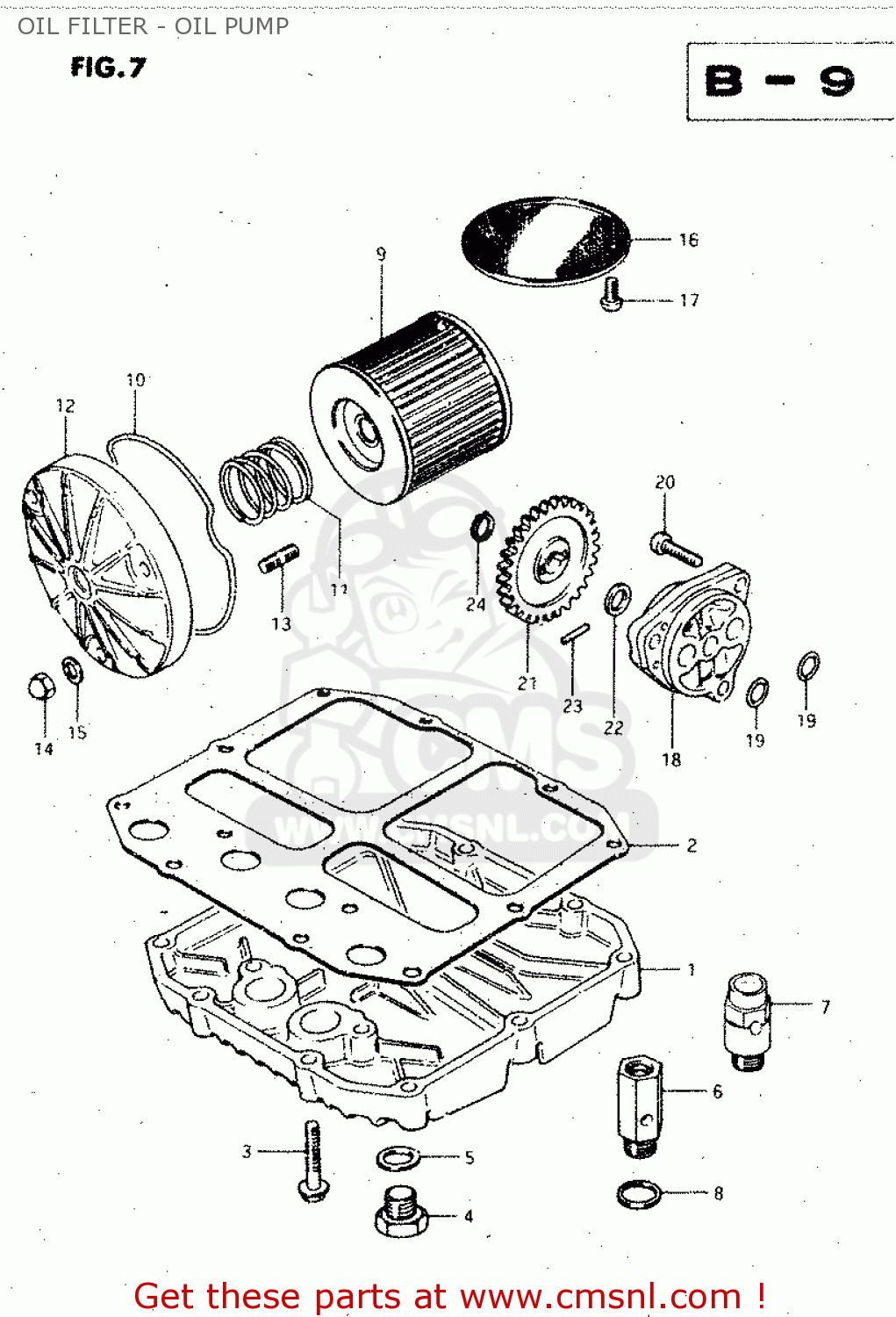

OIL FILTER - OIL PUMP - GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

ref

part #

description

quantity

1

1151144100
ref: 1

PAN,OIL

€ 83.50

2

1148944100
ref: 2

GASKET,OIL PAN (MCA)

€ 11.00

3

0151706308
ref: 3

BOLT

€ 2.00

4

0924714001
ref: 4

PLUG

€ 5.00

5

0916814004
ref: 5

GASKET(14X19.2X2) (NAS)

€ 2.50

6

1644044100
ref: 6
MODEL T,X

REGULATOR ASSEMBLY,ENGINE

€ 37.00

7

1644034301
ref: 7
MODEL Z

REGULATOR ASSEMBLY,ENGINE

€ 37.00

8

0821214181
ref: 8

WASHER

€ 2.00

9

1651045040
ref: 9

FILTER ASSY,ENGINE OIL

€ 7.50

10

1651845000
ref: 10

O RING,OIL FILTER CHAMBER CAP

€ 7.50

11

0944032004
ref: 11

SPRING

€ 13.50

12

1651245101
ref: 12
FROM 16512-45100

CAP,ENGINE OIL FILTER

€ 37.50

13

0142106208
ref: 13

STUD 6X20

€ 2.50

14

0831311068
ref: 14

NUT

€ 2.00

15

0832221068
ref: 15

WASHER

€ 2.00

16-1

1652045000
ref: 16-1
MODEL T,X

STRAINER,ENGINE OIL

€ 12.00

16-2

1652045010
ref: 16-2
MODEL Z

STRAINER,ENGINE OIL

€ 12.00

17

0211206128
ref: 17

SCREW 6X12

€ 2.00

18

1640044100
ref: 18

PUMP ASSY,ENGINE OIL

€ 164.50

19

0928013004
ref: 19

O RING(D:1.9,ID:13)

€ 2.50

20

0211206258
ref: 20

SCREW

€ 2.00

21

1633144000
ref: 21

GEAR,OIL PUMP DRIVEN

€ 34.00

22

0822110185
ref: 22

SHIM

€ 2.00

23

0926104009
ref: 23

PIN(4X15.8)

€ 1.50

24

0833131109
ref: 24

CIRCLIP

€ 2.00

OIL FILTER - OIL PUMP

all assemblies
