TURN SIGNAL LAMP (E34)

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

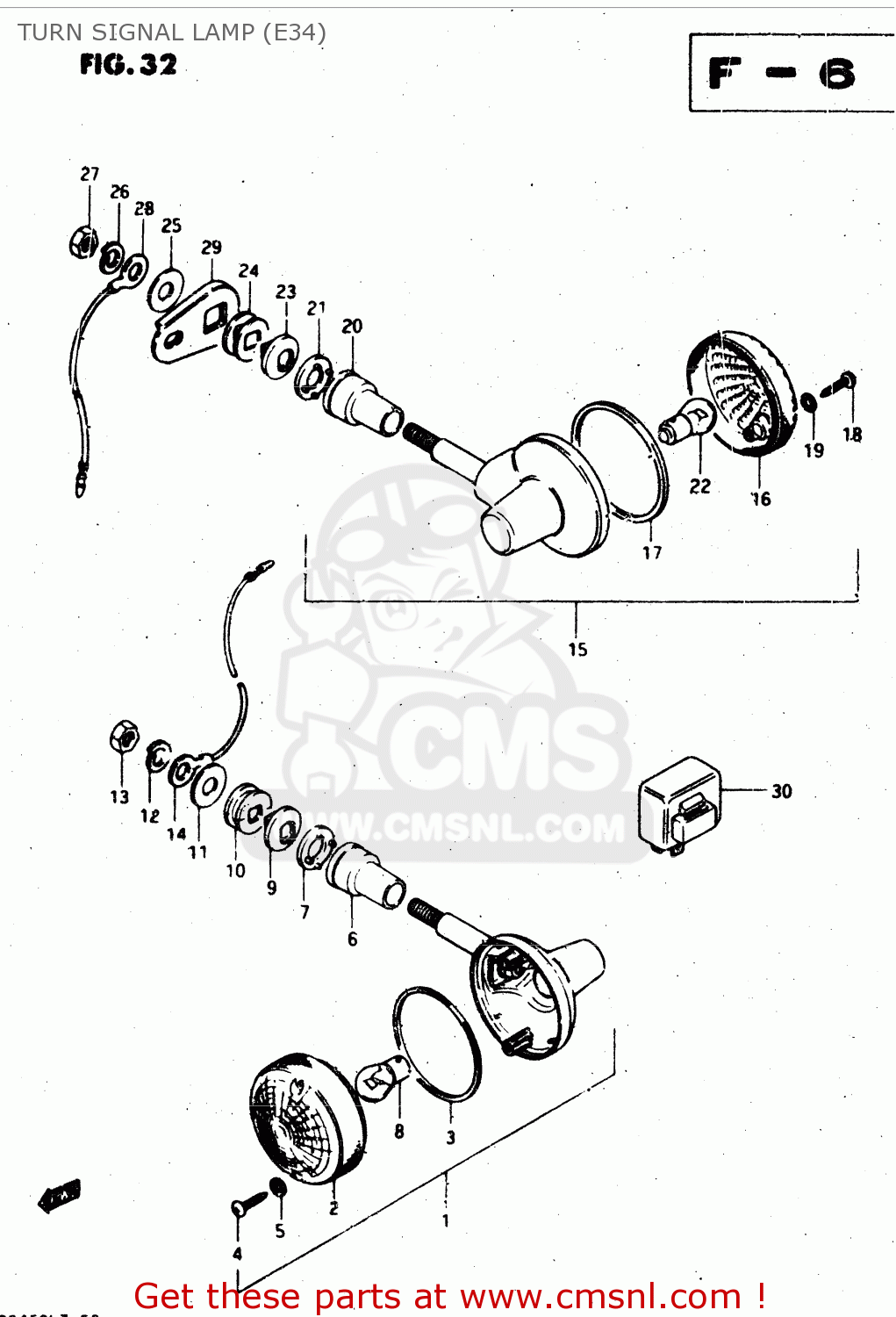

Turn signal lamp (e34) diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

TURN SIGNAL LAMP (E34) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
TURN SIGNAL LAMP (E34) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
TURN SIGNAL LAMP (E34) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1
3560347241999
ref: 1
LAMP, REAR TURN SIGNAL
€ 0.00
2
3561247040
ref: 2
LENS
3561247040
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4
0321104208
ref: 4
SCREW
0321104208
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
3561747210
ref: 6
COVER,STAY
3561747210
€ 5.50
7
3566847290
ref: 7
CUSHION
3566847290
€ 3.00
8
0947112045
ref: 8
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
9
3569536590
ref: 9
SPACER
3569536590
€ 6.00
10
3569032200
ref: 10
CUSHION
3569032200
€ 38.50
11
0916010006
ref: 11
WASHER (10.5X30X2.3)
0916010006
€ 2.50
12
0832121108
ref: 12
LOCK WASHER
0832121108
€ 2.00
13
0831012108
ref: 13
NUT
0831012108
€ 2.50
14
3666033000
ref: 14
LEAD WIRE,EARTH
3666033000
€ 5.00
15
3560347241999
ref: 15
LAMP, REAR TURN SIGNAL
€ 0.00
16
3565247040
ref: 16
LENS,TURN SIGN
3565247040
€ 7.00
17
3561328620
ref: 17
GASKET (NAS)
3561328620
€ 7.00
18
0321104208
ref: 18
SCREW
0321104208
€ 1.50
19
3562743010
ref: 19
GASKET (NAS)
3562743010
€ 2.00
20
3561747210
ref: 20
COVER,STAY
3561747210
€ 5.50
21
3566847290
ref: 21
CUSHION
3566847290
€ 3.00
22
0947112045
ref: 22
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
23
3569532401
ref: 23
SPACER
3569532401
€ 4.50
24
3569032200
ref: 24
CUSHION
3569032200
€ 38.50
25
0916010006
ref: 25
WASHER (10.5X30X2.3)
0916010006
€ 2.50
26
0832121108
ref: 26
LOCK WASHER
0832121108
€ 2.00
27
0831012108
ref: 27
NUT
0831012108
€ 2.50
28
3686244000
ref: 28
LEAD WIRE,EARTH
3686244000
€ 4.00
29
4158032201
ref: 29
BRACKET,RR TURN SIGNAL LAMP
4158032201
€ 41.50
30
3861045031
ref: 30
RELAY,TURN SIGNAL
3861045031
€ 54.50
