FUEL TANK (MODEL X : E22, E25)

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

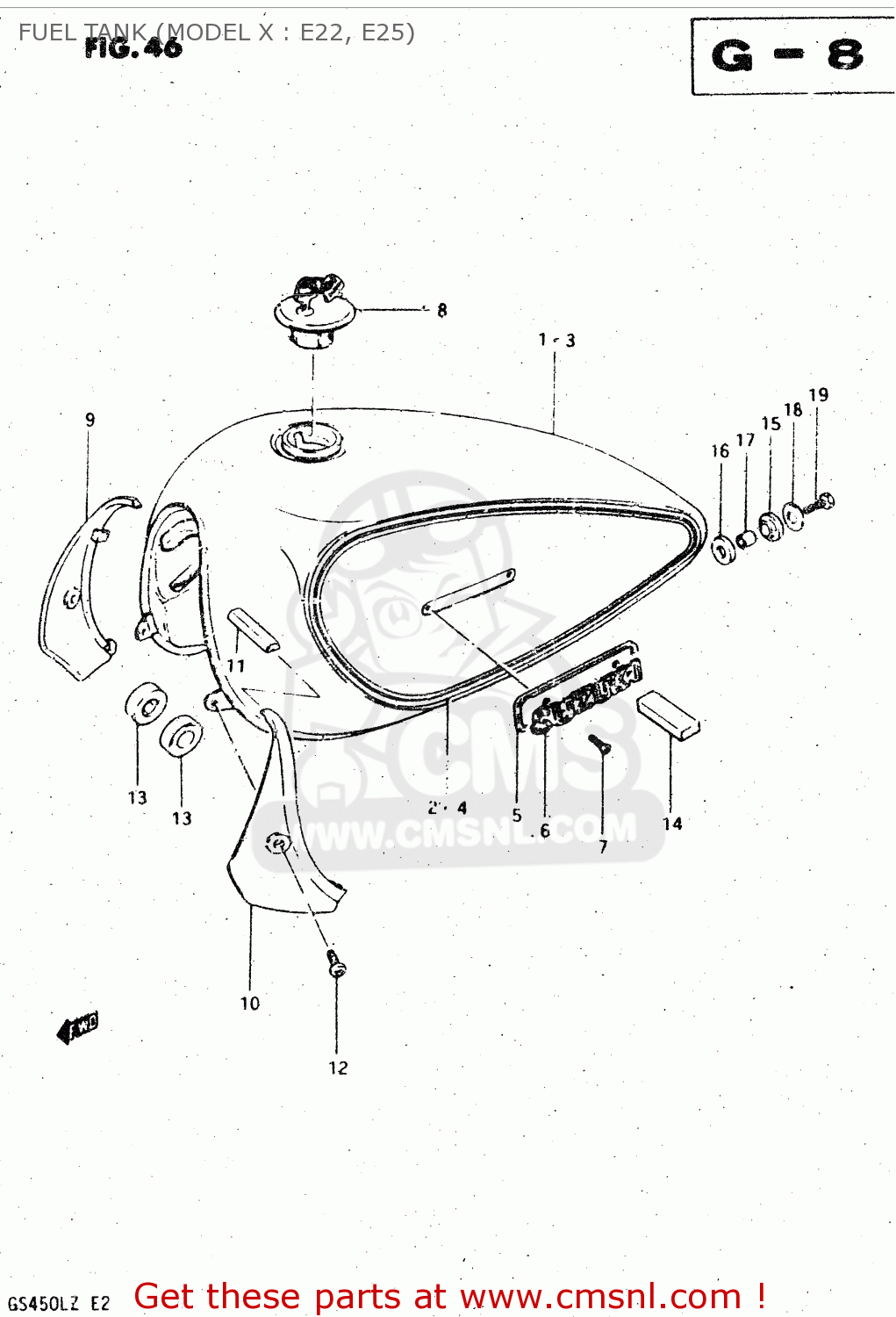

Fuel tank (model x : e22, e25) diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

FUEL TANK (MODEL X : E22, E25) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
FUEL TANK (MODEL X : E22, E25) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
FUEL TANK (MODEL X : E22, E25) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1
4410044210019
ref: 1
TANK ASSEMBLY,FUEL
€ 350.00
2
681104420066Y
ref: 2
TAPE SET,FUEL TANK STRIPE
€ 0.00
3
441004421000J
ref: 3
TANK ASSEMBLY,FUEL
€ 350.00
4
681104420071P
ref: 4
TAPE SET,FUEL TANK
€ 0.00
5
4417544200
ref: 5
CUSHION
4417544200
€ 5.00
6
6811144200
ref: 6
EMBLEM,FUEL TANK
6811144200
€ 16.50
7
0213203065
ref: 7
SCREW 3X6
0213203065
€ 2.00
8
4420030703
ref: 8
CAP SET,FUEL TANK
€ 112.00
9
4427144201
ref: 9
COVER,FUEL TANK,FRONT,RIGHT
€ 9.00
10
4427244201
ref: 10
COVER,FUEL TANK,FRONT,LEFT
4427244201
€ 8.00
11
4427344200
ref: 11
TUBE, FRONT
4427344200
€ 2.50
12
0214206125
ref: 12
SCREW 6X12
0214206125
€ 2.00
13
0932910007
ref: 13
CUSHION
0932910007
€ 3.00
14
0932901005
ref: 14
CUSHION
0932901005
€ 11.50
15
0932012010
ref: 15
CUSHION
0932012010
€ 3.00
16
0932012023
ref: 16
CUSHION
0932012023
€ 2.50
17
0918008067
ref: 17
SPACER(8.5X12X19)
0918008067
€ 2.50
18
0916008002
ref: 18
WASHER (8.5X29X1.6)
0916008002
€ 2.00
19
0110708308
ref: 19
BOLT (8X30)
0110708308
€ 2.50
