FUEL TANK (MODEL Z)

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

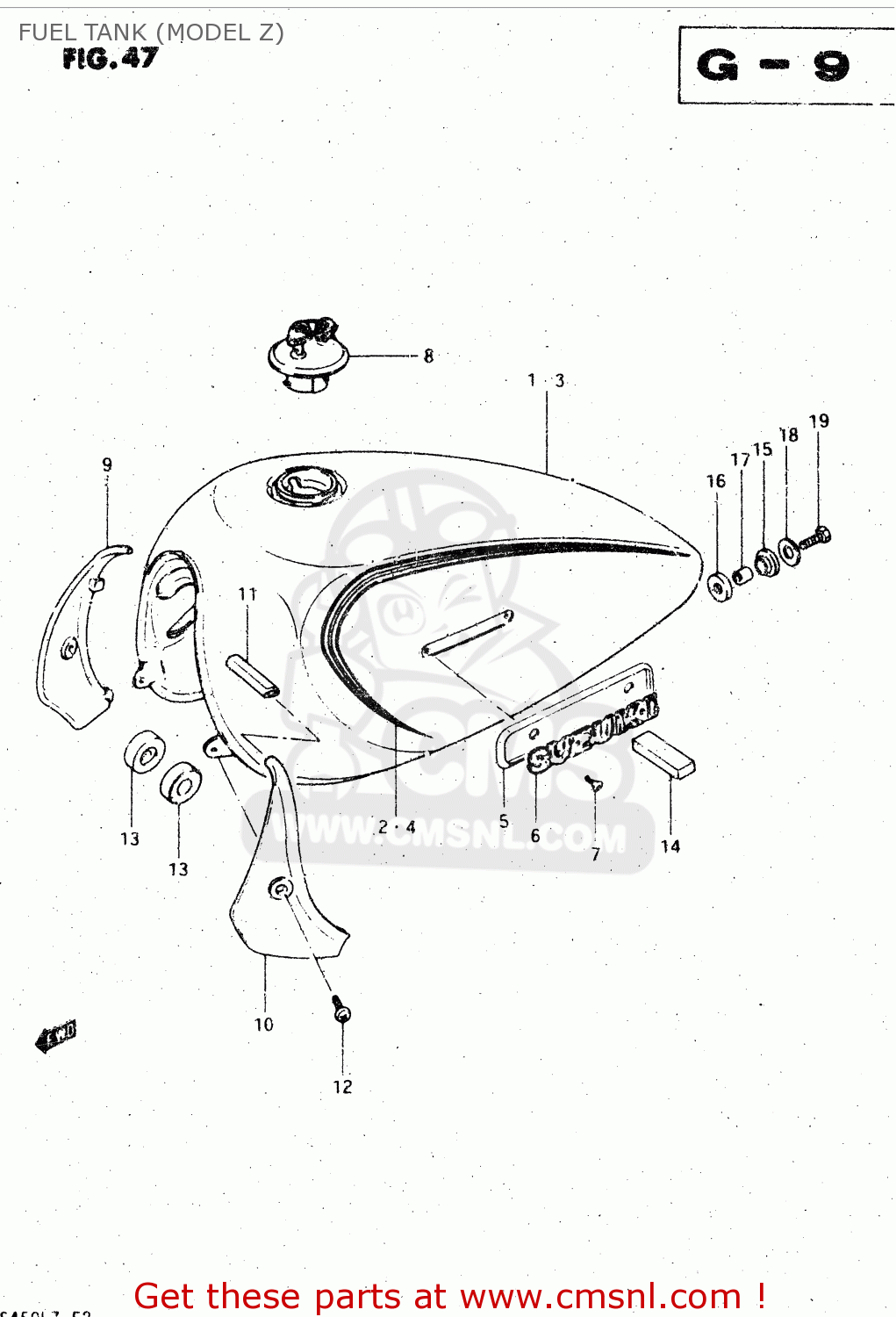

Fuel tank (model z) diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

FUEL TANK (MODEL Z) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

FUEL TANK (MODEL Z) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

prices are in EUR

ref

part #

description

quantity

1

4410044230019
ref: 1

TANK ASSEMBLY,FUEL

€ 350.00

2

6811044220998
ref: 2

TAPE SET,FUEL TANK

€ 0.00

3

441004423005L
ref: 3

TANK ASSEMBLY,FUEL

€ 350.00

4

681104422071F
ref: 4

TAPE SET,FUEL TANK

€ 0.00

5

4417544200
ref: 5
E25

CUSHION

€ 5.00

6

6811137300
ref: 6

EMBLEM,FUEL TANK

€ 14.00

7

0213203065
ref: 7

SCREW 3X6

€ 2.00

8

4420030704
ref: 8

CAP SET,FUEL TANK

€ 112.00

9

4427144201
ref: 9

COVER,FUEL TANK,FRONT,RIGHT

€ 9.00

10

4427244201
ref: 10

COVER,FUEL TANK,FRONT,LEFT

€ 8.00

11

4427344200
ref: 11

TUBE, FRONT

€ 2.50

12

0214206125
ref: 12

SCREW 6X12

€ 2.00

13

0932910007
ref: 13

CUSHION

€ 3.00

14

0932901005
ref: 14

CUSHION

€ 11.50

15

0932012010
ref: 15

CUSHION

€ 3.00

16

0932012023
ref: 16

CUSHION

€ 2.50

17

0918008067
ref: 17

SPACER(8.5X12X19)

€ 2.50

18

0916008002
ref: 18

WASHER (8.5X29X1.6)

€ 2.00

19

0110708308
ref: 19

BOLT (8X30)

€ 2.50
