ELECTRICAL

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

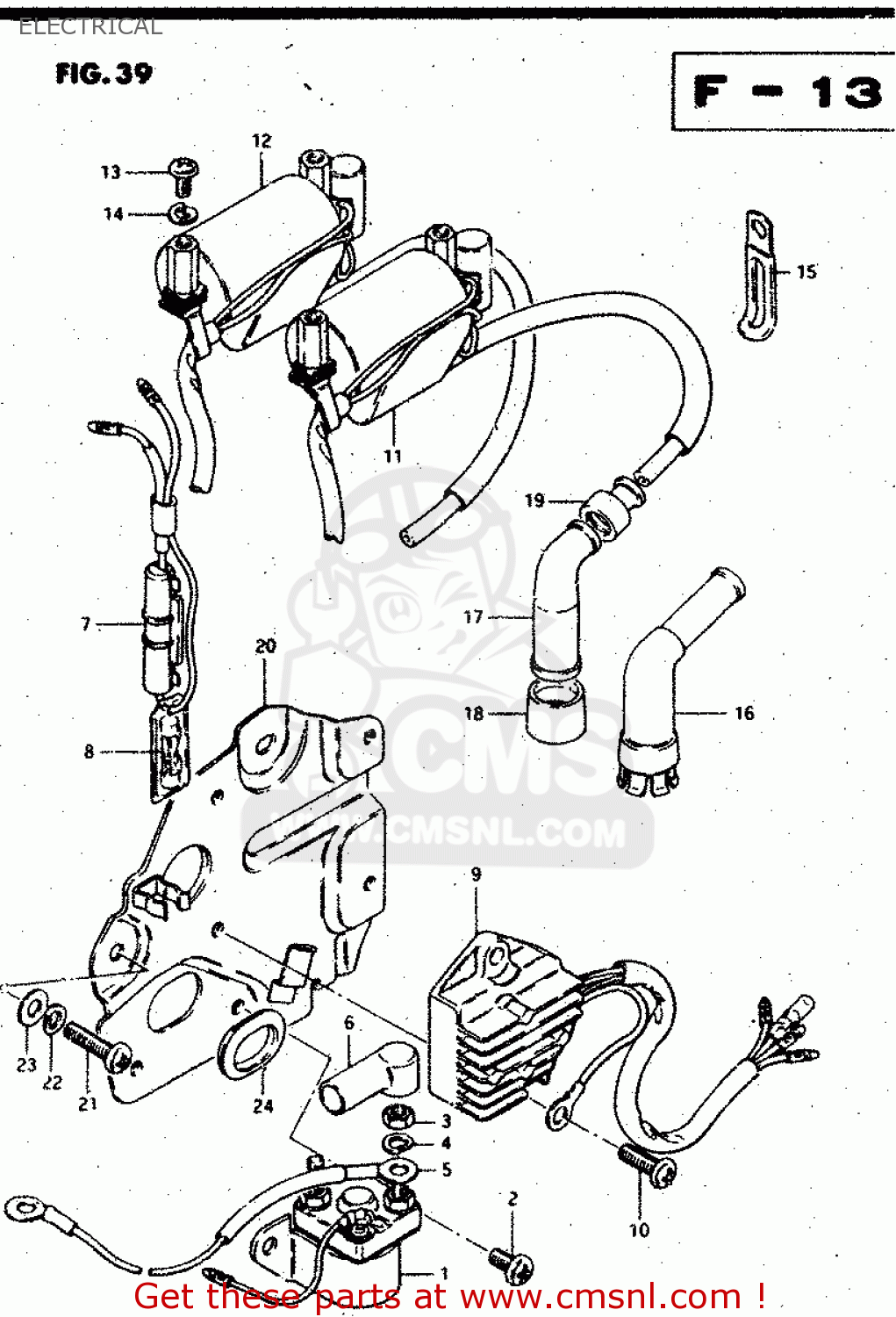

Electrical diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

ELECTRICAL GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
ELECTRICAL GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
ELECTRICAL GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
3180037020
€ 105.00
2
0211206088
ref: 2
SCREW
€ 2.00
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
0832121068
€ 2.50
5
3385044110
ref: 5
CORD,BATTERY MINUS
€ 8.50
6
3186135100
ref: 6
CAP,STARTER RELAY
3186135100
€ 4.50
7
3674015010
ref: 7
BOX ASSEMBLY,FUSE
3674015010
€ 11.00
8
0948115001
ref: 8
FUSE(15A)
0948115001
€ 3.00
9
3280044120
ref: 9
FROM 32800-44040
RECTIFIER ASSEMBLY
3280044120
€ 248.00
10
0211206168
ref: 10
SCREW
0211206168
€ 2.50
11-1
3341011420
ref: 11-1
MODEL T
COIL, IGNITION LH
€ 223.50
11-2
3341044220
ref: 11-2
MODEL X,Z
COIL ASSEMBLY,IGNITION
€ 146.50
12-1
3342011420
ref: 12-1
MODEL T
COIL, IGNITION RH
€ 0.00
12-2
3342044220
ref: 12-2
MODEL X,Z
COIL ASSEMBLY,IGNITION
€ 146.50
13
0211205108
ref: 13
SCREW
0211205108
€ 2.00
14
0832121058
ref: 14
LOCK WASHER
0832121058
€ 2.00
15
0940406401
ref: 15
CLAMP L:35
0940406401
€ 2.50
16
3351044600
ref: 16
CAP, SPARK PLUG (S)
3351044600
€ 40.00
17
3351043010
ref: 17
E24,E25,E34
CAP,SPARK PLUG
3351043010
€ 11.50
18
3354169010
ref: 18
E24,E25,E34
SEAL,SPARK PLUG
3354169010
€ 5.00
19
3354298000
ref: 19
SEAL,SPARK PLU
3354298000
€ 4.50
20-1
4741044100
ref: 20-1
MODEL T,TO 47410-441
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
20-2
4741044101
ref: 20-2
MODEL X,Z
PLATE,ELECTRIC PARTS H
€ 0.00
21
0211206208
ref: 21
SCREW
€ 2.00
22
0832121068
ref: 22
LOCK WASHER
0832121068
€ 2.50
23
0832221068
ref: 23
WASHER
0832221068
€ 2.00
24
0930819001
ref: 24
MODEL T
GROMMET
0930819001
€ 2.50
