STARTER CLUTCH

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

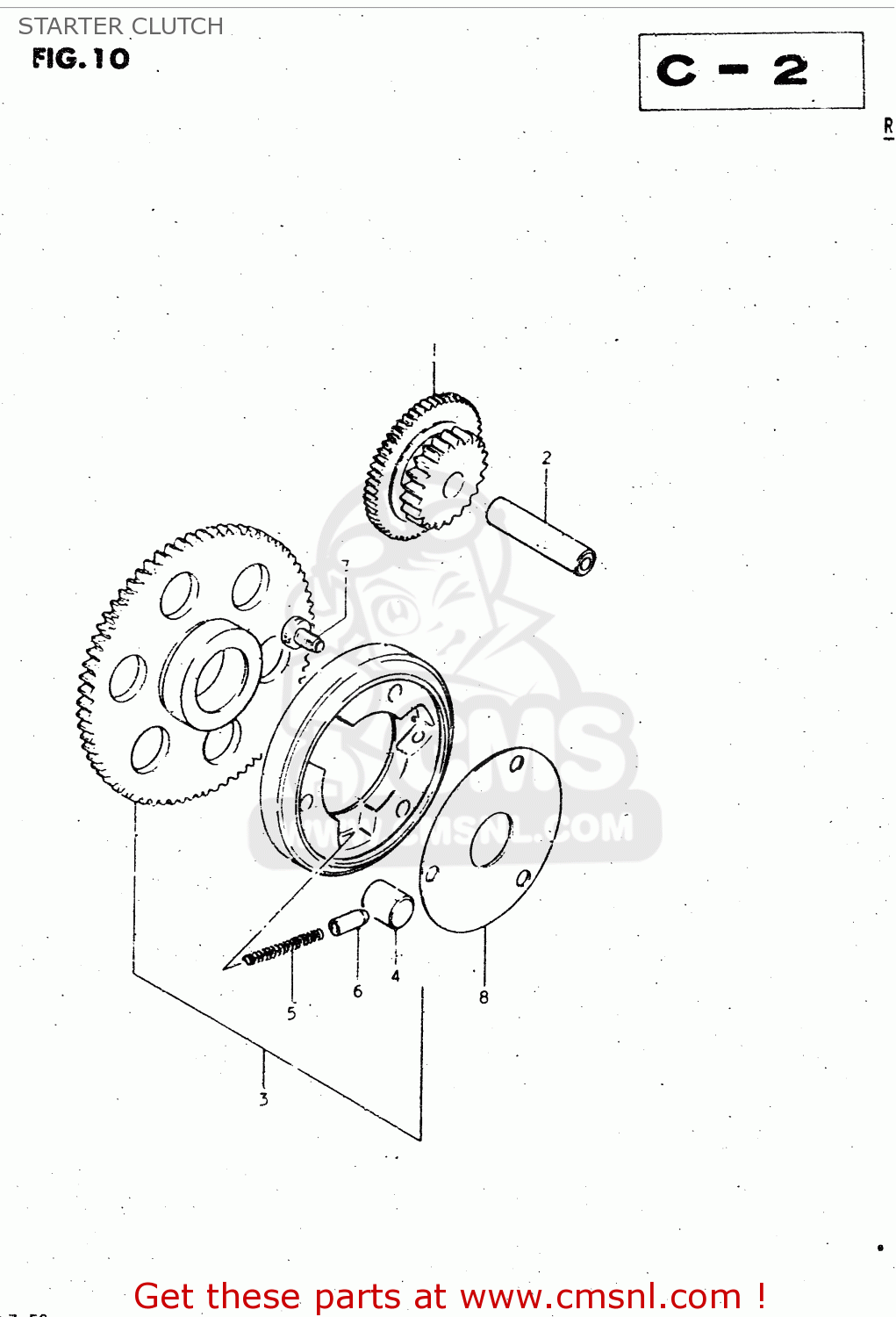

Starter clutch diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

STARTER CLUTCH GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

STARTER CLUTCH GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

prices are in EUR

ref

part #

description

quantity

1

1261144100
ref: 1

GEAR,STARTER IDLE

€ 132.50

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260044830
ref: 3

CLUTCH SET,STARTER

€ 313.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608006
ref: 7

BOLT

€ 3.00

8

1264945000
ref: 8

SHIM,STARTER CLUTCH HUB

€ 7.00
