REAR WHEEL (MODEL T, X)

GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

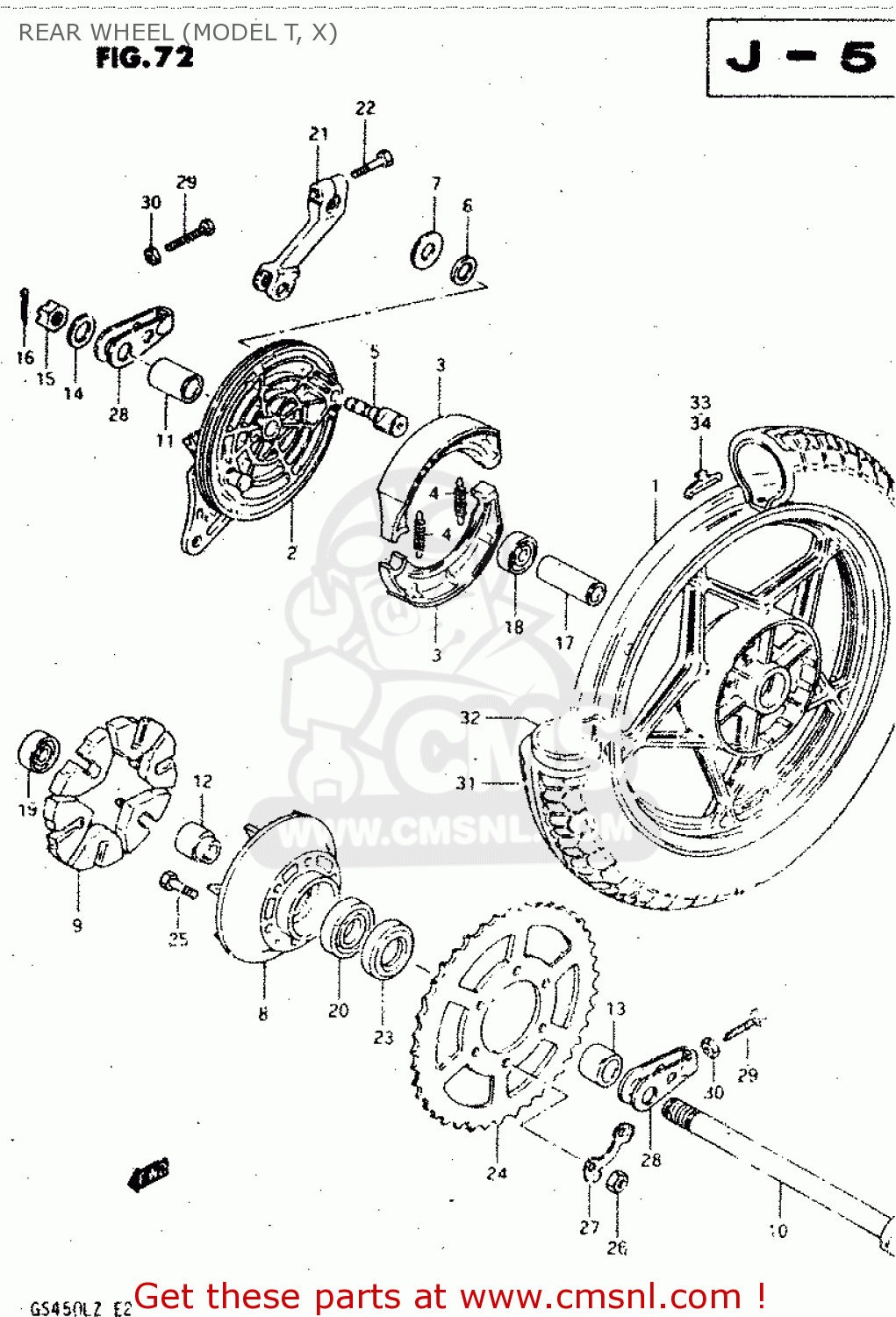

Rear wheel (model t, x) diagram GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)

REAR WHEEL (MODEL T, X) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
REAR WHEEL (MODEL T, X) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
REAR WHEEL (MODEL T, X) GS450L 1981 (X) (E02 E15 E21 E22 E24 E25 E39)
prices are in EUR
ref
part #
description
quantity
1-1
641503730012U
ref: 1-1
MODEL T
WHEEL,REAR
€ 0.00
1-2
6415037300291
ref: 1-2
MODEL X
WHEEL,REAR
€ 0.00
2
6421044060
ref: 2
PANEL,REAR HUB
6421044060
€ 111.50
3
6441011301
ref: 3
SHOE,BRAKE
6441011301
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
5542030000
€ 3.50
5
5444008003
ref: 5
CAM,FRONT BRAKE
5444008003
€ 19.00
6
0928015001
ref: 6
O-RING,BOSS
0928015001
€ 2.00
7
0916015001
ref: 7
WASHER (15X24X1.6)
0916015001
€ 2.50
8
6461044200
ref: 8
DRUM,REAR SPROCKET MOUNT
€ 100.00
9
6465111300
ref: 9
ABSORBER,RR HUB SHOCK
6465111300
€ 12.50
10
6471133000
ref: 10
AXLE,REAR
6471133000
€ 33.50
11
0918017043
ref: 11
SPACER(17.5X28X44.8)
0918017043
€ 7.00
12
6473333000
ref: 12
SPACER,REAR HUB BEARING
6473333000
€ 20.00
13
0918017042
ref: 13
SPACER(17X30.5X22.3)
0918017042
€ 8.50
14
0916017013
ref: 14
WASHER (17X30X3.2)
0916017013
€ 2.00
15-1
0914116001
ref: 15-1
NUT
0914116001
€ 6.50
15-2
0915916002
ref: 15-2
E25
NUT
0915916002
€ 5.00
16
0411140308
ref: 16
PIN,COTTER
0411140308
€ 1.50
17
0918017056
ref: 17
SPACER (17.6X24X57)
€ 19.00
18
0814363037
ref: 18
BEARING
0814363037
€ 23.00
19
0814362037
ref: 19
BEARING
0814362037
€ 18.50
20
0811362057
ref: 20
BEARING
0811362057
€ 18.00
21
6445144001
ref: 21
LEVER,RR BRAKE CAM
6445144001
€ 111.00
22
0110706258
ref: 22
BOLT
€ 2.00
23
0928530001
ref: 23
SEAL,OIL(30.5X52X8)
0928530001
€ 20.00
24
6451144200
ref: 24
SPROCKET,REAR (NT:41)
6451144200
€ 56.00
25
0911910002
ref: 25
BOLT
0911910002
€ 3.50
26
0914010026
ref: 26
NUT
0914010026
€ 2.00
27
0916910006
ref: 27
WASHER
0916910006
€ 4.50
28
6141044200
ref: 28
ADJUSTER,CHAIN
6141044200
€ 31.00
29
0910408018
ref: 29
BOLT 8X50
0910408018
€ 3.00
30
0831012088
ref: 30
NUT
0831012088
€ 2.00
31-1
6510037310
ref: 31-1
TIRE
€ 210.00
31-2
6510037330
ref: 31-2
TIRE
€ 0.00
32
6520037320
ref: 32
TUBE ASSY,WHEEL,INNER 4.60-16
6520037320
€ 31.50
33
5541147001
ref: 33
BALANCER,WHEEL
5541147001
€ 4.00
34
5541247001
ref: 34
BALANCER,WHEEL
5541247001
€ 3.50
