BATTERY
GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

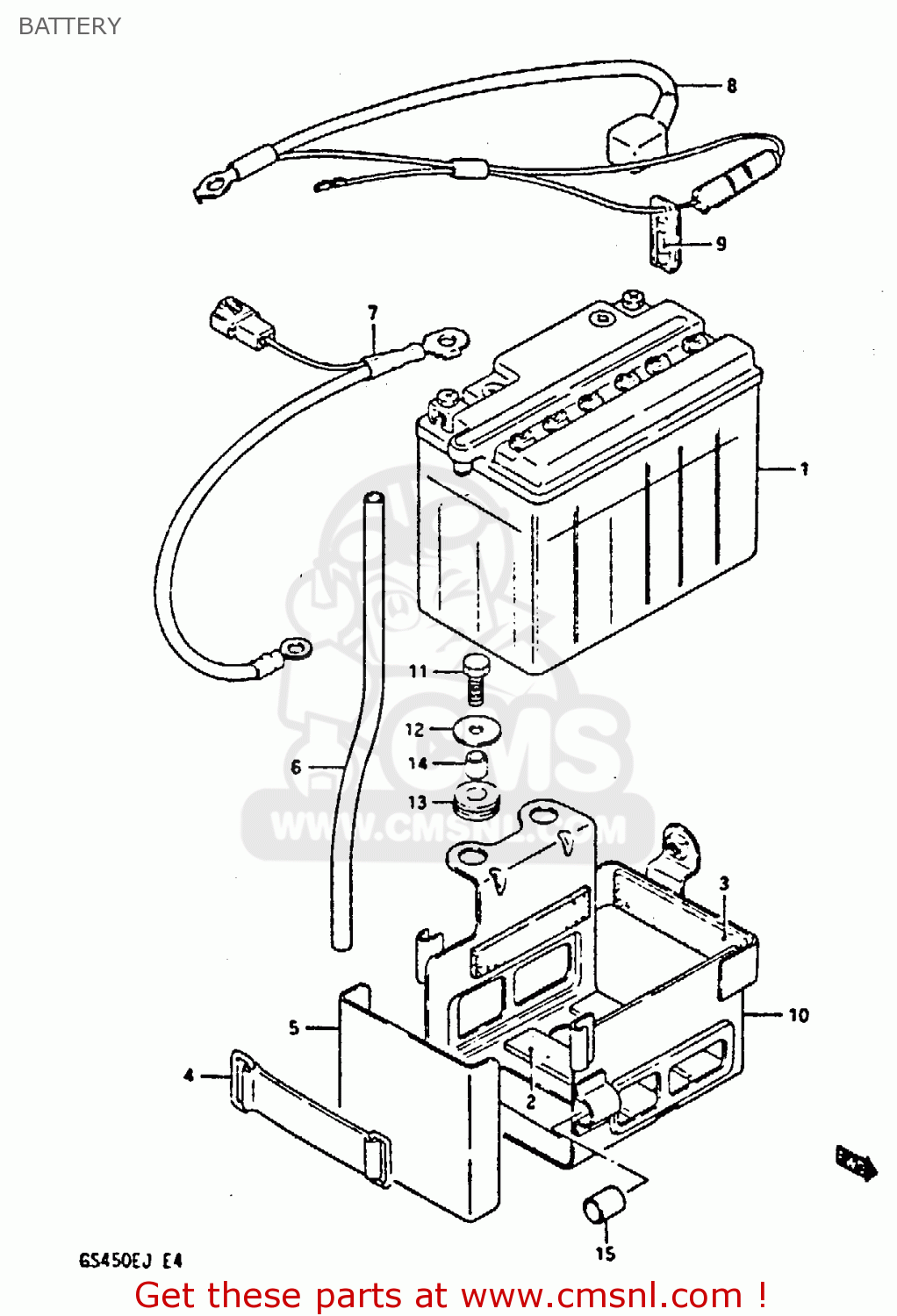

Battery diagram GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
BATTERY GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
×
prices are in EUR
ref
part #
description
quantity
1
3361011010
ref: 1
BATTERY(YB12B-B2,12V11.6A)
€ 93.50
2
3365137000
ref: 2
CUT AS REQUIRED PROF
PROTECTOR(170X95X3.0)
€ 5.00
3
3365229100
ref: 3
PROTECTOR,20X9
€ 5.00
4
0946200008
ref: 4
BAND
€ 4.50
5
3366144101
ref: 5
COVER,BATTERY
€ 4.50
6
3368031003
ref: 6
L:600@r450
HOSE,BATTERY EXHAUST
€ 4.50
7
3386044500
ref: 7
WIRE,BATTERY MINUS
€ 13.50
8
3674044501
ref: 8
CASE ASSY,FUSE (WITH CABLE)
€ 19.00
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
4154011500
ref: 10
HOLDER,BATTERY
€ 31.00
11
0110706206
ref: 11
BOLT,M6X1X20
€ 2.00
12
0916006057
ref: 12
WASHER
€ 2.00
13
0932008001
ref: 13
CUSHION
€ 3.50
14
0918006103
ref: 14
SPACER(6.2X9X7.5)
€ 1.50
15
0932905006
ref: 15
CUSHION
€ 2.00
