HEADLAMP HOUSING - FRONT FENDER

GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

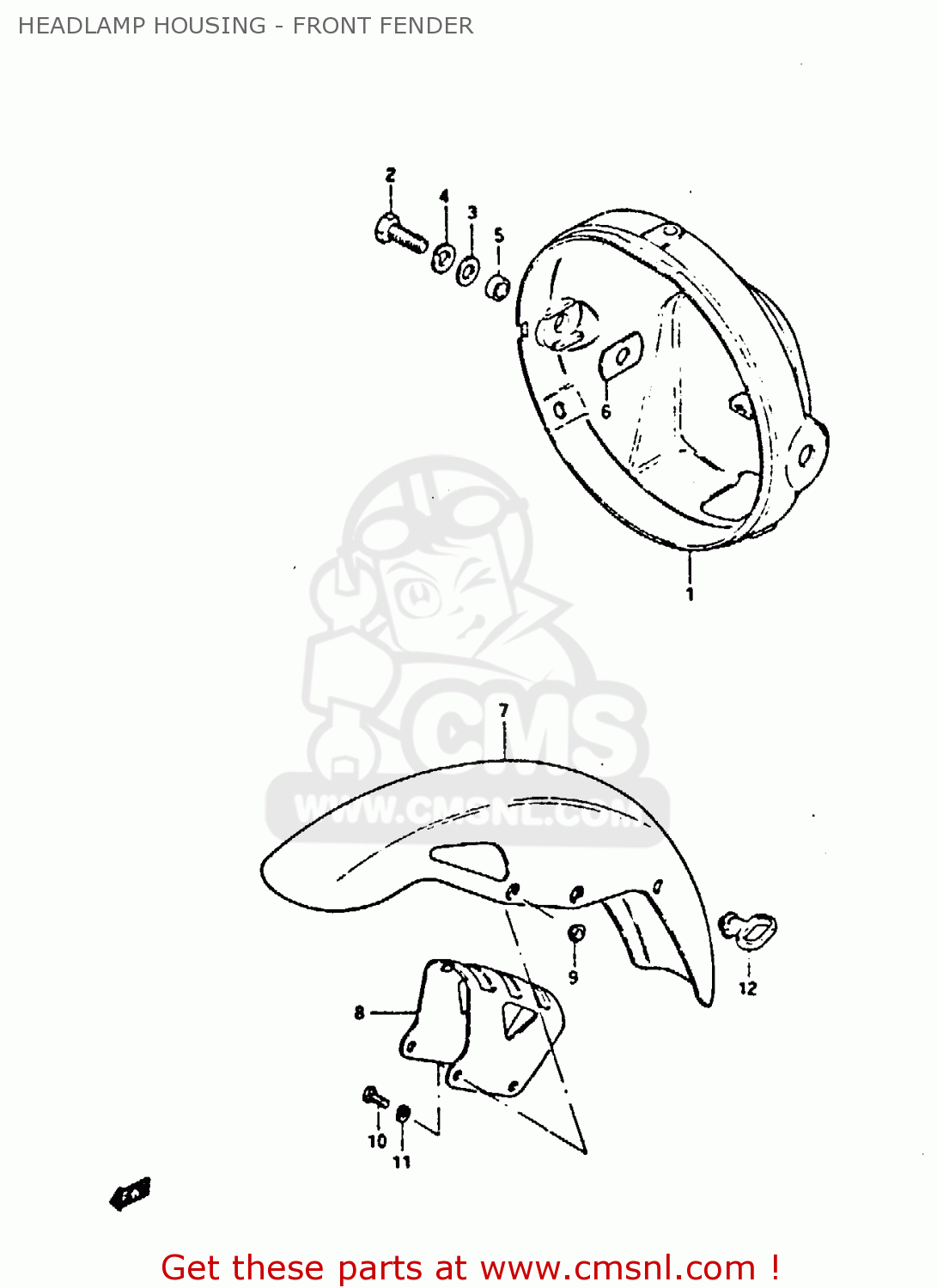

Headlamp housing - front fender diagram GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

prices are in EUR

ref

part #

description

quantity

5181133200
ref: 1

HOUSING,HEADLAMP

€ 39.00

0120408257
ref: 2

BOLT

€ 2.00

0832211088
ref: 3

WASHER

€ 2.00

0832121088
ref: 4

LOCK WASHER

€ 2.00

0918008030
ref: 5

SPACER (8.8X12X7)

€ 3.50

0932912002
ref: 6

CUSHION

€ 3.00

7-1

531114440000J
ref: 7-1
MODEL E

FENDER,FR

€ 122.50

7-2

531114440005K
ref: 7-2
MODEL E

FENDER, FRONT (BLUE)

€ 122.50

7-3

531114440022R
ref: 7-3
MODEL F/G/H/J

FENDER,FR (W/O

€ 122.50

7-4

531114440007P
ref: 7-4
GS450EE E6, E21/MODE

FENDER,FRONT

€ 122.50

7-5

531114440020K
ref: 7-5
GS450EE E6, E21

FENDER,FR

€ 122.50

7-6

5311144400019
ref: 7-6
GS450SG, MODEL J

FENDER,FRONT

€ 122.50

5311444400
ref: 8

BRACE,FRONT FENDER

€ 25.50

0916908032
ref: 9

WASHER

€ 11.50

0110708167
ref: 10

BOLT,8X16

€ 2.00

0832121088
ref: 11

LOCK WASHER

€ 2.00

5862121203A
ref: 12

GUIDE,CABLE

€ 7.50
