REAR BRAKE

GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

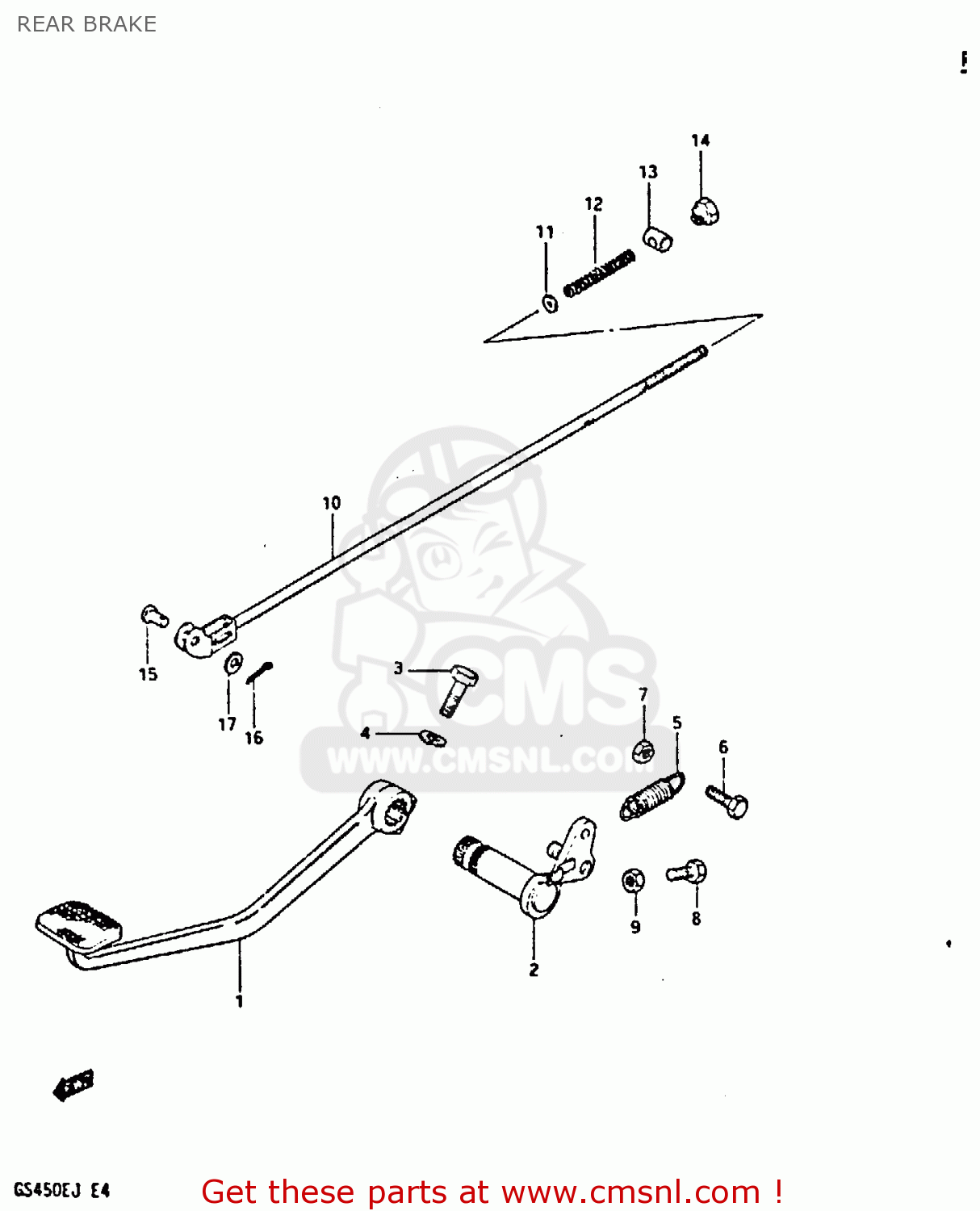

Rear brake diagram GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

prices are in EUR

ref

part #

description

quantity

4311044401
ref: 1

PEDAL,BRAKE

€ 65.50

4312011501
ref: 2

ARM,BRAKE PEDAL

€ 21.00

0110708258
ref: 3

BOLT

€ 2.50

0832121088
ref: 4

LOCK WASHER

€ 2.00

0944314020
ref: 5

SPRING

€ 3.00

0110706257
ref: 6

BOLT

€ 2.00

0831011067
ref: 7

NUT 6MM

€ 2.50

0110706207
ref: 8

BOLT

€ 2.00

0831011067
ref: 9

NUT 6MM

€ 2.50

4330044401
ref: 10

ROD ASSY,RR BRAKE

€ 16.00

0832221067
ref: 11

WASHER

€ 2.00

0944009004
ref: 12

SPRING

€ 2.00

0920913005
ref: 13

PIN

€ 3.50

0915006009
ref: 14

NUT (6MM)

€ 3.50

0920006013
ref: 15

PIN(L:13.5)

€ 2.00

0411120208
ref: 16

PIN 20X20

€ 1.50

0832221067
ref: 17

WASHER

€ 2.00
