FRAME
GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

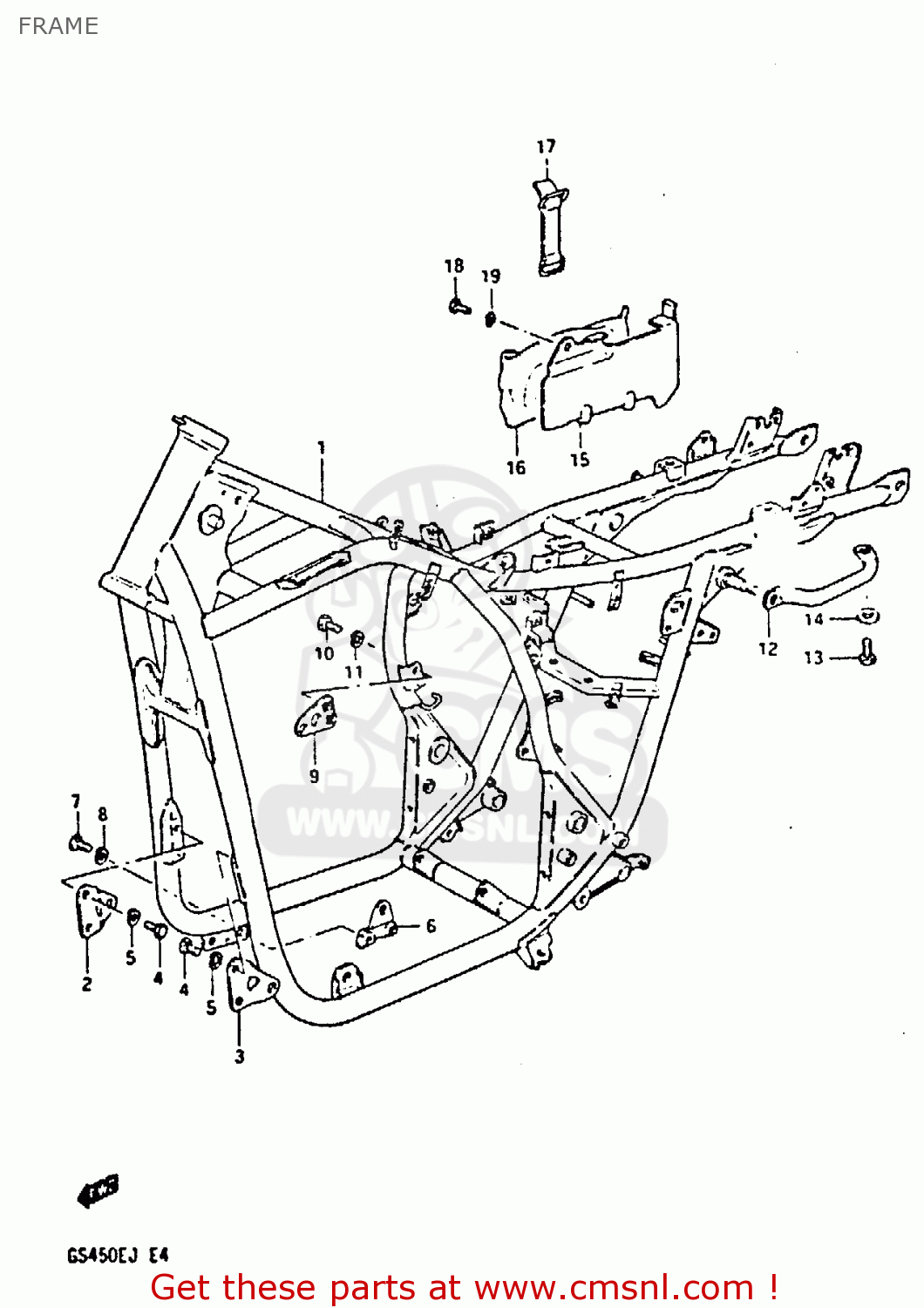

Frame diagram GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
FRAME GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110044401019
ref: 1-1
MODEL E/F/G E6, E21,
FRAME
€ 1,094.00
1-2
4110044402019
ref: 1-2
MODEL H E6, E21, E34
FRAME
€ 1,094.00
1-3
4110044420019
ref: 1-3
MODEL E/F/G E15
FRAME (BLACK)
€ 976.00
1-4
4110044421019
ref: 1-4
MODEL H E15
FRAME (BLACK)
€ 976.00
1-5
4110044430019
ref: 1-5
MODEL E/F/G E2
FRAME (BLACK)
€ 0.00
1-6
4110044431019
ref: 1-6
MODEL H E2, E39
FRAME (BLACK)
€ 0.00
1-7
4110044470019
ref: 1-7
MODEL J E4/E75
FRAME (BLACK)
€ 0.00
1-8
4110044480019
ref: 1-8
MODEL J E77
FRAME (BLACK)
€ 0.00
1-9
4110044490019
ref: 1-9
MODEL J E22
FRAME (BLACK)
€ 0.00
2
4199144400019
ref: 2
PLATE,ENG MTG NO.1,R
€ 10.00
3
4199244400019
ref: 3
PLATE,ENGINE MOUNTING,LEFT
€ 8.50
4
0110708165
ref: 4
BOLT
€ 2.00
5
0832121084
ref: 5
WASHER,LOCK,8.
€ 2.50
6
4192044110019
ref: 6
PLATE,MOUNTING NO.2,LEFT
€ 0.00
7
0110708165
ref: 7
BOLT
€ 2.00
8
0832121084
ref: 8
WASHER,LOCK,8.
€ 2.50
9
4197011500019
ref: 9
PLATE,MOUNTING NO.4,LEFT
€ 12.00
10
0110708165
ref: 10
BOLT
€ 2.00
11
0832121084
ref: 11
WASHER,LOCK,8.
€ 2.50
12
4161011500
ref: 12
GRIP,FRAME HANDLE
€ 17.00
13
0110708167
ref: 13
BOLT,8X16
€ 2.00
14
0832211088
ref: 14
WASHER
€ 2.00
15-1
4743044400
ref: 15-1
MODEL E/F
HOLDER,TOOL
€ 11.50
15-2
4743044401
ref: 15-2
MODEL G/H
HOLDER,TOOL
€ 11.50
15-3
4743044410
ref: 15-3
MODEL J
HOLDER, TOOL
€ 0.00
16
0980006800
ref: 16
TOOL SET
€ 52.00
17
0946200072
ref: 17
BAND
€ 3.50
18
0110706107
ref: 18
BOLT
€ 2.00
19
0832121067
ref: 19
WASHER,LOCK
€ 2.50
