GEAR SHIFTING

GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

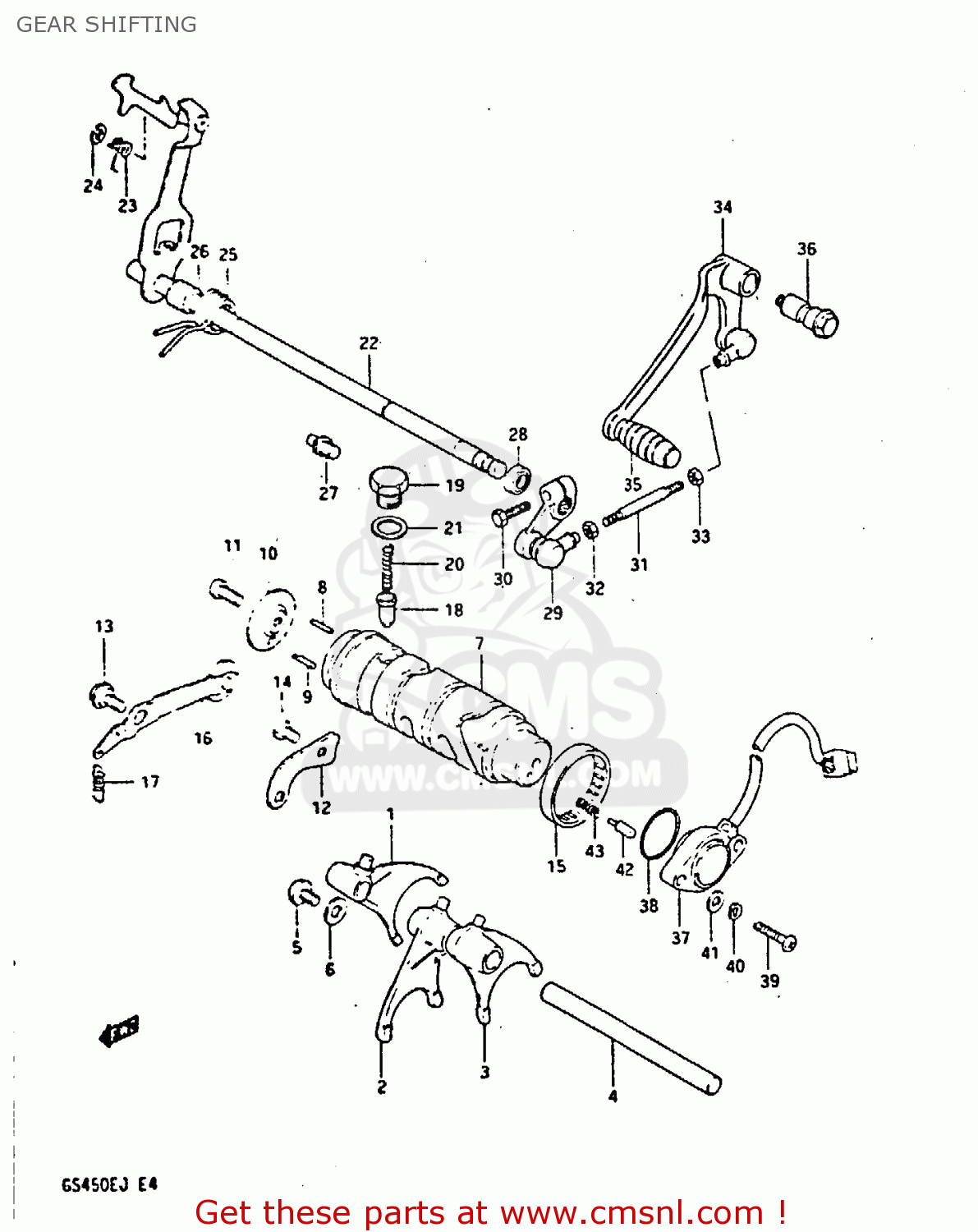

Gear shifting diagram GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

GEAR SHIFTING GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
GEAR SHIFTING GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
GEAR SHIFTING GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
prices are in EUR
ref
part #
description
quantity
1
2521144001
ref: 1
FORK,GEAR SHIFT NO.1
2521144001
€ 70.00
2
2522144001
ref: 2
FORK,GEAR SHIFT NO.2
2522144001
€ 74.50
3
2523144000
ref: 3
FORK,GEAR SHIFT NO.2
2523144000
€ 74.50
4
2541131301
ref: 4
SHAFT,GEAR SHIFT FORK
2541131301
€ 14.50
5
0214206108
ref: 5
SCREW
0214206108
€ 2.00
6
0821106141
ref: 6
WASHER
0821106141
€ 2.50
7
2531147001
ref: 7
CAM,GEAR SHIFT
2531147001
€ 68.50
8
0926104001
ref: 8
PIN(4X18.5)
0926104001
€ 1.50
9
0920904013
ref: 9
PIN
0920904013
€ 5.00
10
2532244000
ref: 10
RETAINER,GEAR SHIFT CAM DR PIN
2532244000
€ 2.50
11
0211206167
ref: 11
SCREW
0211206167
€ 2.50
12
2534133300
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0911106019
ref: 13
BOLT
€ 1.50
14
0110706166
ref: 14
BOLT
€ 2.00
15
0926340001
ref: 15
BEARING(40X47X12)
0926340001
€ 21.00
16
2535044000
ref: 16
STOPPER,GEAR SHIFT CAM NO.1
2535044000
€ 10.50
17
0944309007
ref: 17
SPRING
0944309007
€ 14.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
20
0944006020
ref: 20
SPRING
0944006020
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
22
2551044100
ref: 22
SHAFT,GEAR SHIFT
2551044100
€ 83.50
23
0944813008
ref: 23
SPRING
0944813008
€ 7.00
24
0833211078
ref: 24
E RING
0833211078
€ 2.00
25
0944426012
ref: 25
SPRING
0944426012
€ 3.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
0918012068
€ 3.00
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
28
0928512002
ref: 28
OIL SEAL
0928512002
€ 7.00
29
2552047020
ref: 29
ARM,GEAR SHIFT LINK
2552047020
€ 53.50
30
0110706207
ref: 30
BOLT
0110706207
€ 2.00
31
2552533200
ref: 31
ROD,GEAR SHIFT LINK
2552533200
€ 6.00
32
0831011067
ref: 32
NUT 6MM
€ 2.50
33
0914006011
ref: 33
NUT
0914006011
€ 1.50
34
2560033210
ref: 34
LEVER ASSY,GEAR SHIFT
2560033210
€ 57.00
35
2565216500
ref: 35
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
36
2561744101
ref: 36
SHAFT,GEAR SHIFT LEVER
2561744101
€ 9.00
37-1
3772033200
ref: 37-1
MODEL E/F/G/H
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
3772033200
€ 92.50
37-2
3772044400
ref: 37-2
MODEL J
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 103.50
38
0928026003
ref: 38
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
39
0211205206
ref: 39
SCREW
0211205206
€ 2.50
40
0832121056
ref: 40
LOCK WASHER
0832121056
€ 3.00
41
0832221056
ref: 41
WASHER
€ 2.50
42
0920905011
ref: 42
PIN(5X15.5)
0920905011
€ 2.00
43
0944004010
ref: 43
SPRING
0944004010
€ 1.50
