FUEL COCK

GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

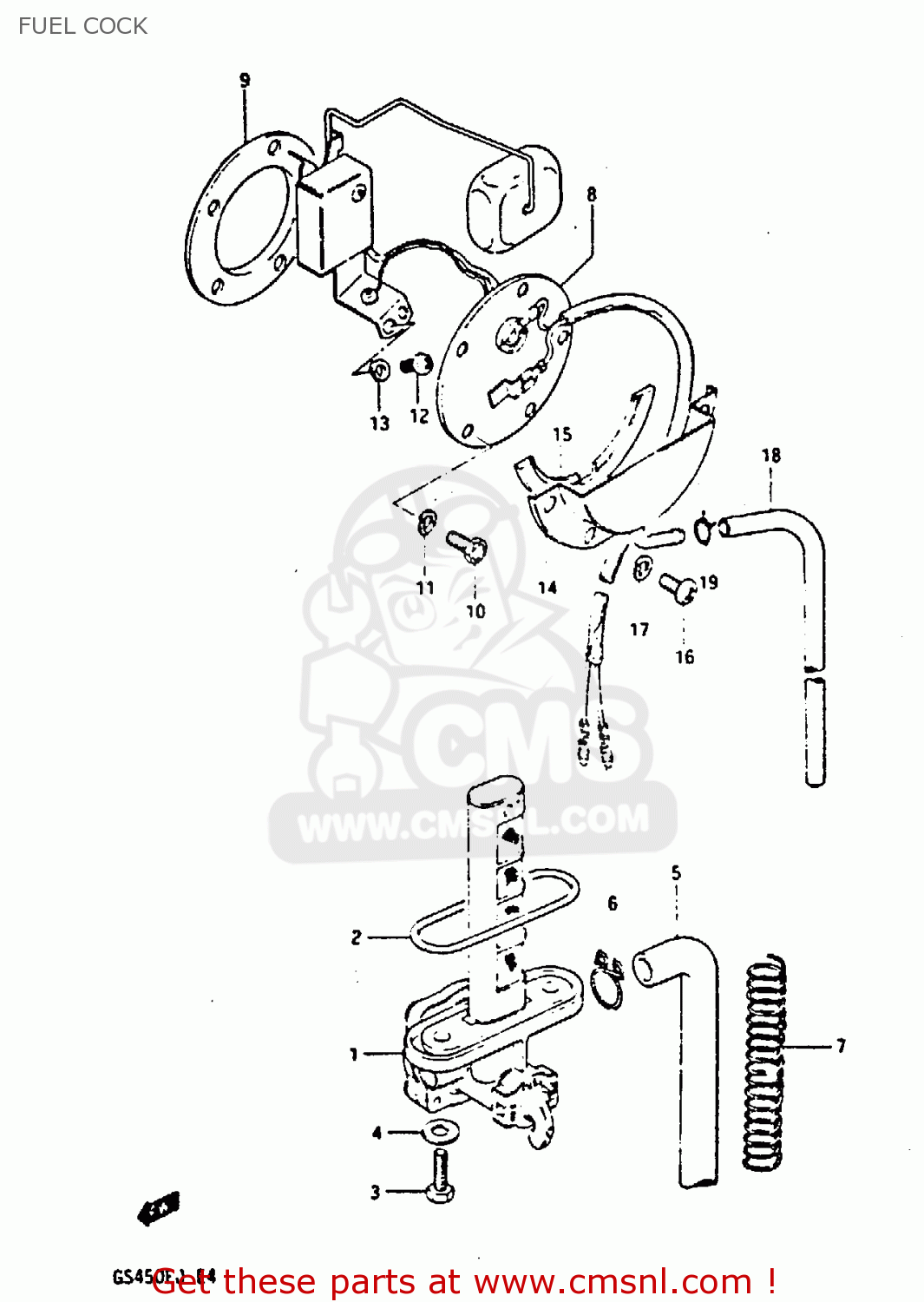

Fuel cock diagram GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

FUEL COCK GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
FUEL COCK GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
FUEL COCK GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
prices are in EUR
ref
part #
description
quantity
1-1
4430045470
ref: 1-1
MODEL E
COCK ASSEMBLY,FUEL
4430045470
€ 85.50
1-2
4430045471
ref: 1-2
MODEL F/G/H/J
COCK ASSY,FUEL
4430045471
€ 85.50
2
4434849170
ref: 2
O RING
4434849170
€ 3.50
3
0912806006
ref: 3
BOLT(6X20)
0912806006
€ 2.00
4
0916806010
ref: 4
GASKET
0916806010
€ 2.00
5-1
0934307073
ref: 5-1
MODEL E/F/G/H
HOSE
0934307073
€ 17.50
5-2
093527010328A
ref: 5-2
MODEL J
HOSE
€ 17.50
6
0940110402
ref: 6
CLIP
0940110402
€ 7.00
7
0944013018
ref: 7
SPRING
€ 14.50
8
3481044402
ref: 8
GUAGE, FUEL LEVEL
3481044402
€ 70.50
9
3482545100
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
3482545100
€ 7.00
10
0110705106
ref: 10
BOLT
€ 1.50
11
0832121056
ref: 11
LOCK WASHER
0832121056
€ 3.00
12
0211205106
ref: 12
SCREW 5X10
€ 2.00
13
0832121056
ref: 13
LOCK WASHER
0832121056
€ 3.00
14
3488534500
ref: 14
PLATE,FUEL DRAIN
3488534500
€ 20.50
15
3488834500
ref: 15
GASKET (NAS)
3488834500
€ 8.50
16
0211205088
ref: 16
SCREW
0211205088
€ 2.00
17
0832121056
ref: 17
LOCK WASHER
0832121056
€ 3.00
18-1
0934305165
ref: 18-1
MODEL E/F/G/H
HOSE,FUEL
0934305165
€ 13.00
18-2
0935250823890
ref: 18-2
MODEL J
HOSE
€ 13.00
19
0940108402
ref: 19
CLIP
0940108402
€ 1.50
