REAR COMBINATION LAMP (MODEL G/H/J)

GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

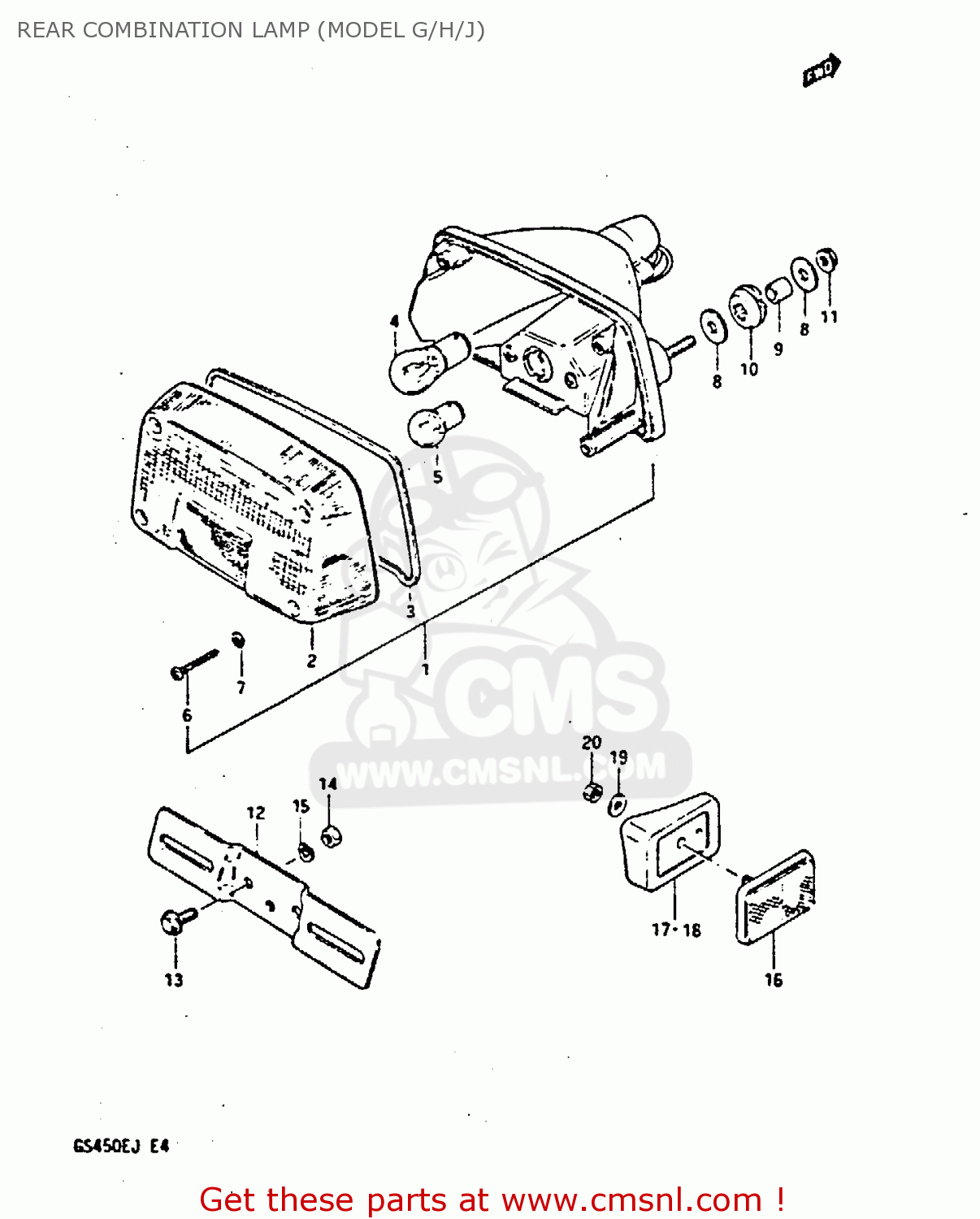

Rear combination lamp (model g/h/j) diagram GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

REAR COMBINATION LAMP (MODEL G/H/J) GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
REAR COMBINATION LAMP (MODEL G/H/J) GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
REAR COMBINATION LAMP (MODEL G/H/J) GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3571011522
ref: 1-1
E2 ~F.NO. 102492, E4
LAMP ASSY, REAR COMBINATION
€ 182.00
1-2
3571044470
ref: 1-2
E2 F.NO. 102493~, E2
LAMP ASSY, REAR COMBINATION
€ 182.00
1-3
3571011501999
ref: 1-3
E6
LAMP ASSY, REAR COMBINATION
€ 76.00
1-4
3571011552
ref: 1-4
E15
LAMP ASSY, REAR COMBINATION
€ 0.00
1-5
3571011522
ref: 1-5
E21
LAMP ASSY, REAR COMBINATION
€ 182.00
1-6
3571011563
ref: 1-6
E34
LAMP ASSY, REAR COMBINATION
€ 182.00
1-7
3571011583
ref: 1-7
E39
LAMP ASSY, REAR COMBINATION
€ 0.00
2-1
3571211552
ref: 2-1
E2 ~F.NO. 102492
LENS
€ 59.50
2-2
3571244470
ref: 2-2
E2 F.NO. 102493~, E2
LENS
3571244470
€ 59.50
2-3
3571211500
ref: 2-3
E6
LENS
€ 60.50
2-4
3571211552
ref: 2-4
E4, E15, E21, E39
LENS
€ 59.50
2-5
3571211563
ref: 2-5
E34
LENS
€ 59.50
3
3571311520
ref: 3
GASKET
3571311520
€ 5.50
4-1
0947112046
ref: 4-1
E2, E15, E21, E22, E
BULB(12V21/5W)
0947112046
€ 1.50
4-2
0947112057
ref: 4-2
E4
BULB 12V21/5W
0947112057
€ 6.00
4-3
0947112035
ref: 4-3
E6
BULB(12V23W)
0947112035
€ 5.50
5-1
0947112059
ref: 5-1
E2 ~F.NO. 102492
BULB
€ 4.00
5-2
0947112062
ref: 5-2
E2 F.NO. 102493~, E2
BULB(12V10W,TOKAI DENSO)
€ 0.00
5-3
0947112058
ref: 5-3
E4
BULB
0947112058
€ 4.00
5-4
0947112037
ref: 5-4
E6
BULB
€ 7.00
5-5
0947112059
ref: 5-5
E15, E21, E34, E39
BULB
€ 4.00
6
0321104308
ref: 6
SCREW
0321104308
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0916006060
ref: 8
WASHER
0916006060
€ 2.00
9
0918006006
ref: 9
SPACER (6.8X10X11.5)
0918006006
€ 3.00
10
0932009010
ref: 10
CUSHION
0932009010
€ 2.50
11
0831626066
ref: 11
NUT
€ 2.00
12
3592733200
ref: 12
BRACKET, LICENSE PLATE
€ 10.00
13
0151706168
ref: 13
BOLT
€ 1.50
14
0831011066
ref: 14
NUT
€ 2.00
15
0832121066
ref: 15
WASHER,LOCK
0832121066
€ 2.00
16
3595002130
ref: 16
E39, E77
REFLEX REFLECTOR, REAR SIDE (RR018Y)
€ 9.00
17
3597744440
ref: 17
E39, E77
SPACER, RH
€ 3.50
18
3597844440
ref: 18
E39, E77
SPACER, LH
€ 3.00
19
0832221056
ref: 19
E39, E77
WASHER
€ 2.50
20
0831011056
ref: 20
E39, E77
NUT
€ 2.50
