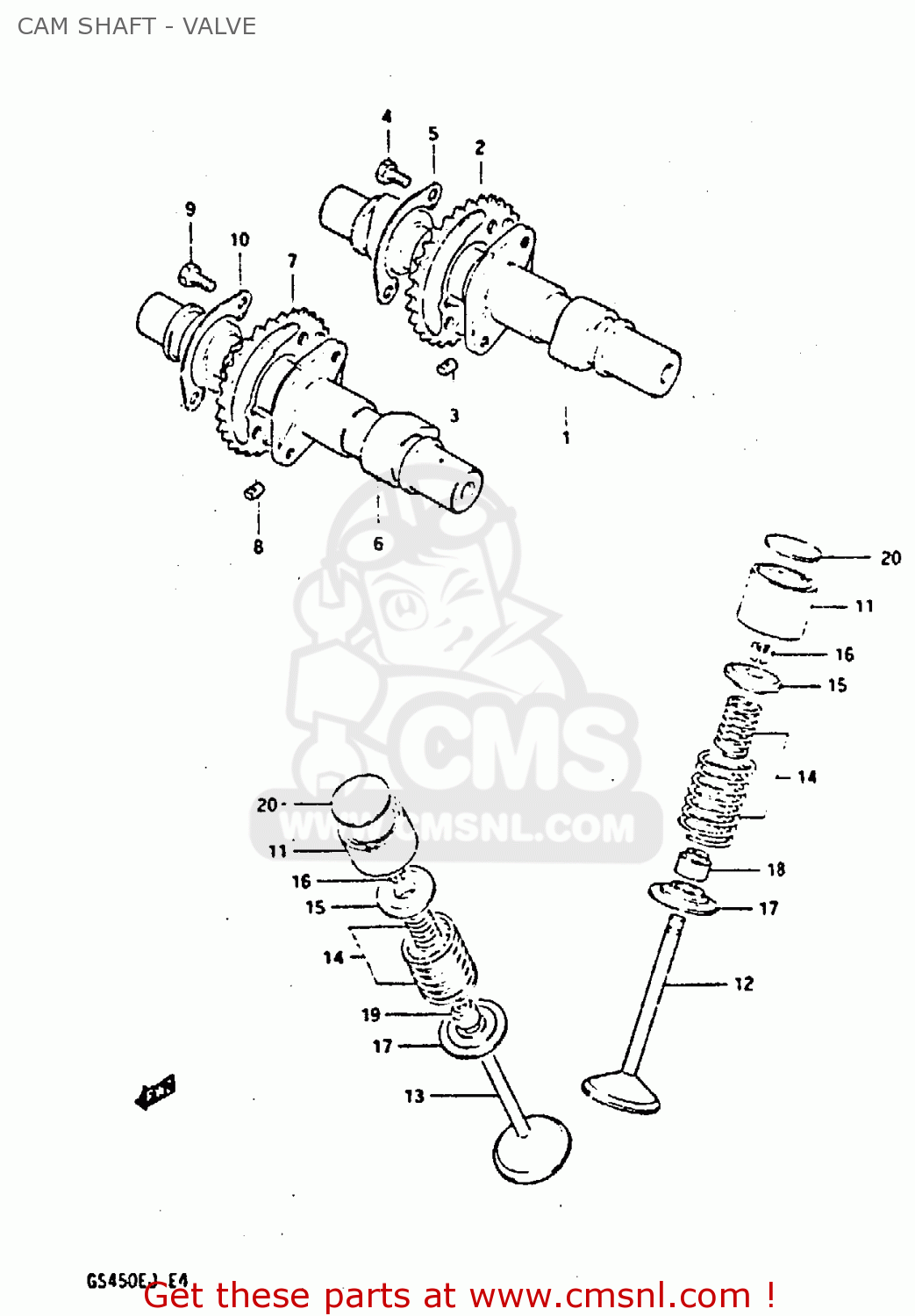

CAM SHAFT - VALVE - GS450S 1986 (G) FINLAND AUSTRIA (E15 E39)

ref

part #

description

quantity

1

1271144101
ref: 1

CAMSHAFT,INTAKE

€ 128.00

2

1274045041
ref: 2

SPROCKET,CAMSHAFT

€ 67.00

3

1274844000
ref: 3

PIN,SPROCKET

€ 4.50

4

0911106027
ref: 4

BOLT(6X12.5)

€ 1.50

5

1274744000
ref: 5

WASHER,CAM CHAIN SPROCKET

€ 2.00

6

1272144101
ref: 6

CAMSHAFT,EXHAUST

€ 193.00

7

1275045041
ref: 7

SPROCKET,EXHAUST CAM(NT:30)

€ 65.00

8

1274844000
ref: 8

PIN,SPROCKET

€ 4.50

9

0911106027
ref: 9

BOLT(6X12.5)

€ 1.50

10

1274744000
ref: 10

WASHER,CAM CHAIN SPROCKET

€ 2.00

11

1289145001
ref: 11

TAPPET,INTAKE

€ 45.00

12

1291145030
ref: 12

VALVE,INTAKE

€ 28.00

13

1291245021
ref: 13

VALVE,EXHAUST

€ 51.50

14

1292044110
ref: 14

SPRING SET,VALVE

€ 13.50

15

1293145000
ref: 15

RETAINER,VALVE SPRING

€ 6.00

16

1293245010
ref: 16

COTTER VALVE

€ 2.50

17

1293345001
ref: 17

SEAT,VALVE SPRING

€ 5.50

18

0928907002
ref: 18

SEAL,OIL(7X14.4X9)

€ 3.00

19

0923907003
ref: 19

OIL SEAL, EXHAUST

€ 0.00

20-1

1289245000215
ref: 20-1

SHIM,TAPPET(T:2.15)

€ 17.00

20-2

1289245000220
ref: 20-2

SHIM,TAPPET(T:2.20)

€ 16.50

20-3

1289245000225
ref: 20-3

SHIM,TAPPET(T:2.25)

€ 17.00

20-4

1289245000230
ref: 20-4

SHIM,TAPPET(T:2.30)

€ 16.00

20-5

1289245000235
ref: 20-5

SHIM,TAPPET(T:2.35)

€ 16.50

20-6

1289245000240
ref: 20-6

SHIM,TAPPET(T:2.40)

€ 17.00

20-7

1289245000245
ref: 20-7

SHIM,TAPPET(T:2.45)

€ 17.00

20-8

1289245000250
ref: 20-8

SHIM,TAPPET(T:2.50)

€ 16.00

20-9

1289245000255
ref: 20-9

SHIM,TAPPET(T:2.55)

€ 16.50

20-10

1289245000260
ref: 20-10

SHIM,TAPPET(T:2.60)

€ 16.00

20-11

1289245000265
ref: 20-11

SHIM,TAPPET(T:2.65)

€ 17.00

20-12

1289245000270
ref: 20-12

SHIM,TAPPET(T:2.70)

€ 17.00

20-13

1289245000275
ref: 20-13

SHIM,TAPPET(T:2.75)

€ 17.00

20-14

1289245000280
ref: 20-14

SHIM,TAPPET(T:2.80)

€ 16.50

20-15

1289245000285
ref: 20-15

SHIM,TAPPET(T:2.85)

€ 17.00

20-16

1289245000290
ref: 20-16

SHIM,TAPPET(T:2.90)

€ 17.00

20-17

1289245000295
ref: 20-17

SHIM,TAPPET(T:2.95)

€ 17.00

20-18

1289245000300
ref: 20-18

SHIM,TAPPET(T:3.00)

€ 17.00

20-19

1289245000305
ref: 20-19

SHIM,TAPPET(T:3.05)

€ 16.50

20-20

1289245000310
ref: 20-20

SHIM,TAPPET(T:3.10)

€ 17.00

21

1280045810
ref: 21
NOT SHOWN

SHIM SET,TAPPET

€ 1,227.00

22

9900069480
ref: 22
NOT SHOWN

CASE

€ 152.50
