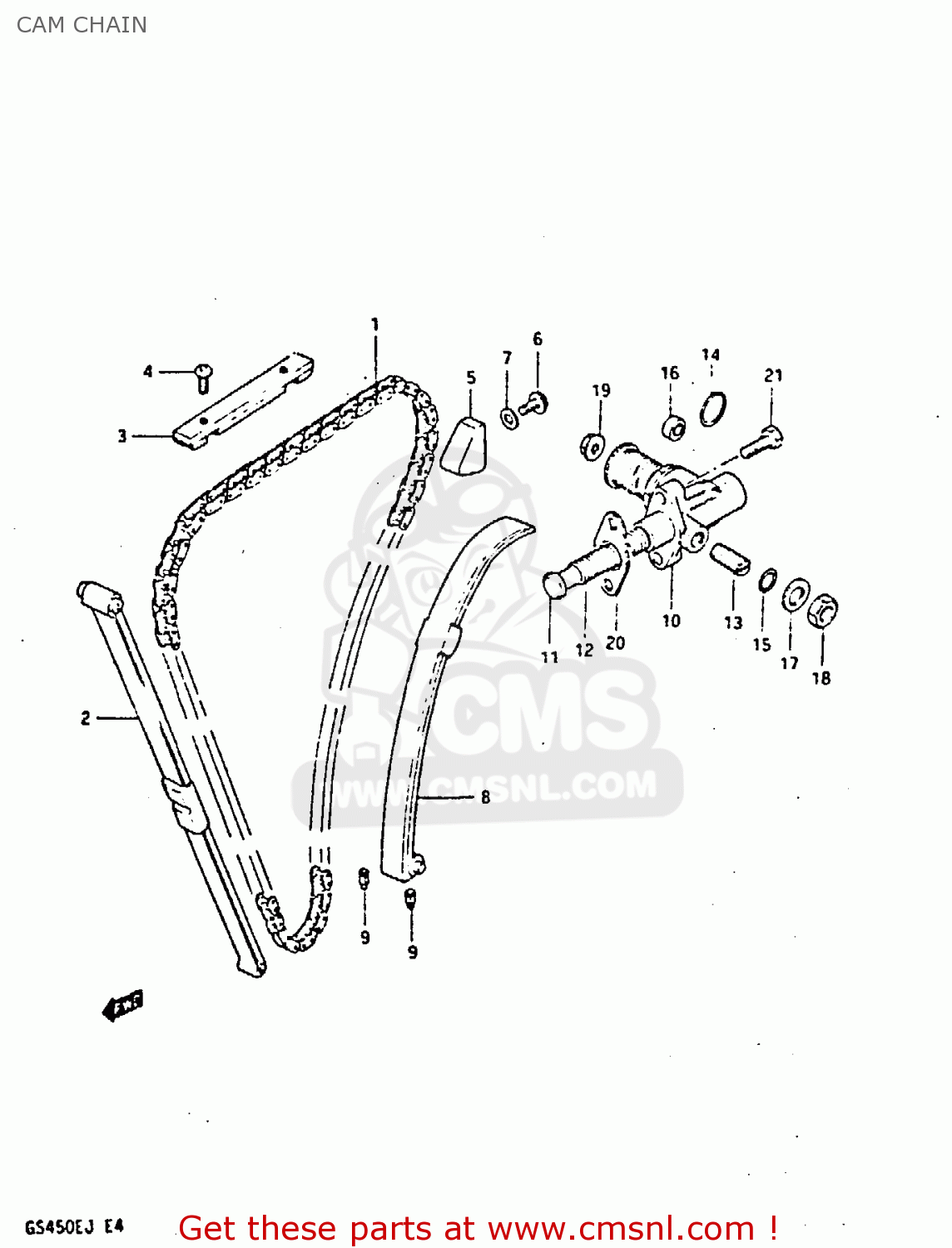

CAM CHAIN

ref

part #

description

quantity

1

1276045040
ref: 1

CHAIN,CAMSHAFT DRIVE(120L)

€ 112.00

2

1277145052
ref: 2

GUIDE,CAM CHAIN NO.1

€ 33.50

3

1278247040
ref: 3

GUIDE,CAM CHAIN NO.3

€ 89.50

4

0211205128
ref: 4

SCREW

€ 2.50

5

1279145040
ref: 5

GUIDE,CAM CHAIN

€ 8.50

6

0151706125
ref: 6

BOLT 6X12

€ 2.50

7

0916806023
ref: 7
FROM 09168-06015

GASKET(5.8X13X1.2) (NAS)

€ 2.00

8

1281044150
ref: 8

TENSIONER,CAM CHAIN

€ 64.00

9

1281444101
ref: 9

CUSHION,CAM CHAIN TENSIONER

€ 8.50

10

1283047011
ref: 10

ADJUSTER ASSEMBLY,TENSIONER

€ 167.00

11

1283347001
ref: 11

ROD,PUSH

€ 25.00

12

0944012017
ref: 12

SPRING

€ 2.50

13

1283845010
ref: 13

SCREW,TENSIONER ADJUST

€ 6.00

14

0928021013
ref: 14

O RING(D:2.4,ID:20.8)

€ 4.50

15

0928006005
ref: 15

O RING(D:1.9,ID:5.7)

€ 2.50

16

0928410006
ref: 16

SEAL,OIL(10X16X4)

€ 4.00

17

0832211084
ref: 17

WASHER

€ 1.50

18

0831011085
ref: 18

NUT

€ 1.50

19

0831616064
ref: 19

NUT 6MM

€ 2.50

20

1283731310
ref: 20

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

21

0912806022
ref: 21

SCREW

€ 2.50
