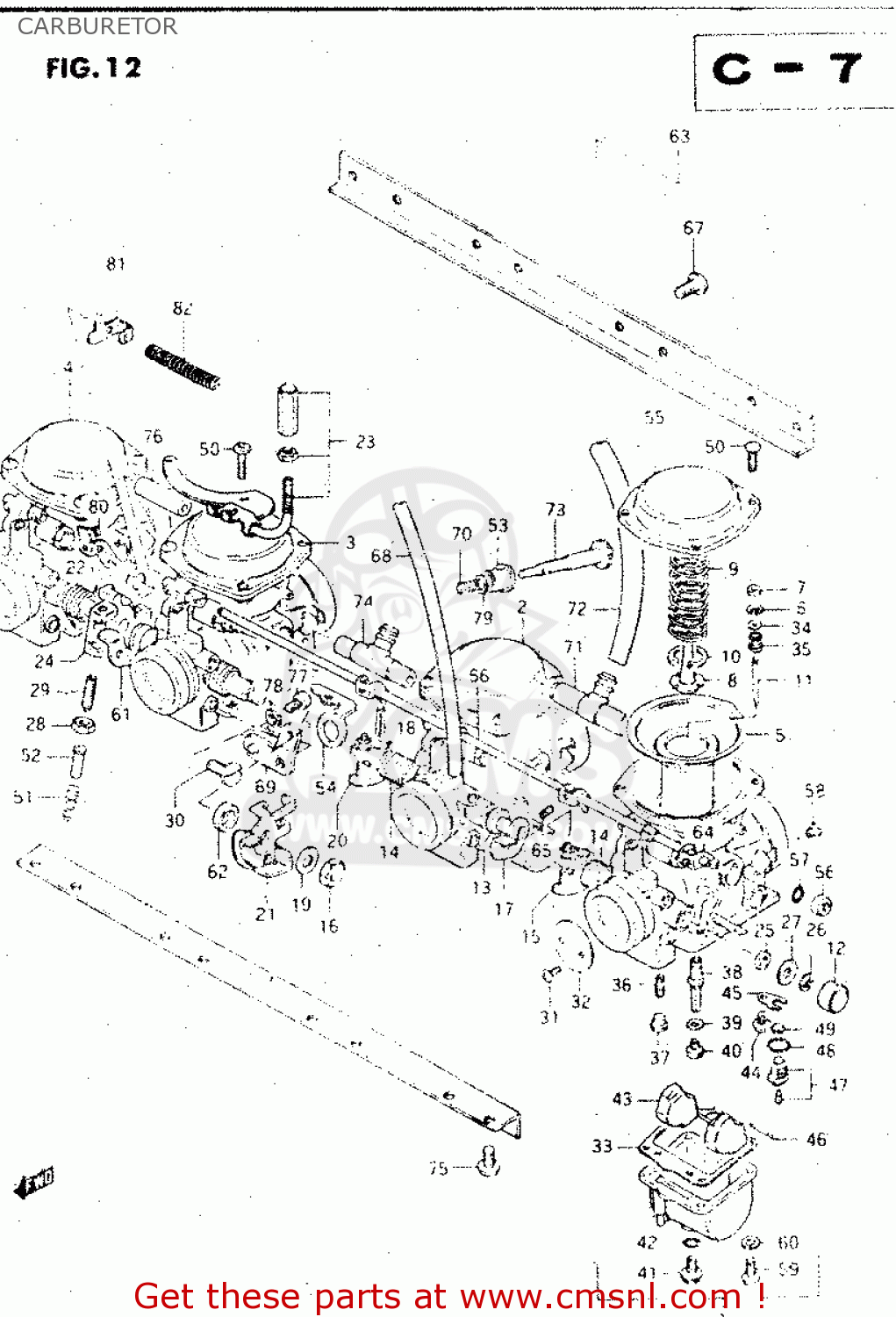

CARBURETOR

ref

part #

description

quantity

1

1320147180
ref: 1

CARBURETOR ASSY, LH

€ 0.00

2

1320247180
ref: 2

CARBURETOR ASSY, ML

€ 0.00

3

1320347180
ref: 3

CARBURETOR ASSY, MR

€ 0.00

4

1320447180
ref: 4

CARBURETOR ASSY, RH

€ 0.00

5

1350047070
ref: 5

DIAPHRAGM ASSEMBLY

€ 170.50

6

1339431210
ref: 6

CLIP,NEEDLE

€ 3.50

7

1338744030
ref: 7

RING

€ 5.00

8

1338944030
ref: 8

HOLDER,GUIDE

€ 10.50

9

1350347070
ref: 9

SPRING

€ 9.50

10

1358144030
ref: 10

E RING

€ 6.50

11

1338347090
ref: 11

NEEDLE, JET (5F42-3)

€ 13.50

12

1357847070
ref: 12
LH,RH

CAP

€ 5.50

13

1355747070
ref: 13
ML,MR

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

14

1357347070
ref: 14
LH,ML

SPRING,THROTTLE SHAFT

€ 6.00

15

1355047070
ref: 15
LH

SHAFT,THROTTLE

€ 44.50

16

0831022088
ref: 16
MR

NUT 8MM

€ 2.00

17

1355047080
ref: 17
ML

SHAFT,THROTTLE

€ 42.50

18

1356347070
ref: 18
LH,ML,RH

PIN,THROTTLE SHAFT

€ 0.00

19

1360647070
ref: 19
MR

WASHER

€ 3.00

20

1355347070
ref: 20
ML

LEVER,THROTTLE SHAFT

€ 0.00

21

1355547070
ref: 21
MR

LEVER ASSEMBLY,THROTTLE

€ 0.00

22

1357347080
ref: 22
ML,MR

SPRING,THROTTLE SHAFT

€ 0.00

23

1362147180
ref: 23
MR

BRACKET,THROTTLE CABLE

€ 10.00

24

1355047090
ref: 24
RH

SHAFT,THROTTLE

€ 0.00

25

1355631210
ref: 25

SEAL

€ 4.00

26

1361744080
ref: 26
LH,RH

E RING

€ 3.50

27

1355747070
ref: 27
LH,RH

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

28

1360747070
ref: 28
LH,ML,RH

NUT

€ 4.00

29

1360347080
ref: 29
LH,ML,RH

SCREW

€ 0.00

30

1360545410
ref: 30
MR

SCREW

€ 8.00

31

1360444080
ref: 31

SCREW

€ 3.50

32

1355147090
ref: 32

VALVE,THROTTLE (BUTTERFLY)

€ 17.00

33

1325144080
ref: 33

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

34

1338244030
ref: 34

WASHER

€ 3.50

35

1338844030
ref: 35

SPRING

€ 6.00

36

0949240008
ref: 36

JET

€ 17.50

37

1335744080
ref: 37

PLUG,NEEDLE JET

€ 4.50

38

0949400269
ref: 38

JET, NEEDLE (X-6)

€ 18.50

39

1333244080
ref: 39

WASHER,NEEDLE NOZZLE

€ 2.50

40

0949197003
ref: 40

JET,MAIN(97.5)

€ 8.50

41

1324744080
ref: 41

PLUG,DRAIN

€ 9.50

42

1324644080
ref: 42

GASKET (NAS)

€ 3.50

43

1325044080
ref: 43

FLOAT

€ 31.00

44

0211204068
ref: 44

SCREW 4X6

€ 2.00

45

1337311400
ref: 45

PLATE,NEEDLE VALVE FITING

€ 7.00

46

1325492311
ref: 46

PIN,FLOAT

€ 2.00

47

1337011400
ref: 47

VALVE ASSEMBLY,NEEDLE

€ 40.50

48

1337444080
ref: 48

O-RING,NEEDLE VALVE

€ 6.00

49

1337665010
ref: 49

FILTER

€ 6.50

50

0211205168
ref: 50

SCREW

€ 2.50

51

1326844010
ref: 51
LH,ML,RH

SPRING,THROTTLE SCREW

€ 3.00

52

1357547070
ref: 52
LH,ML,RH

PIN,THROTTLE LEVER

€ 2.50

53

1327631210
ref: 53
MR

BUSH

€ 4.00

54

1362744090
ref: 54
MR

BRACKET,THROTTLE ADJUST

€ 0.00

55

1350247070
ref: 55

COVER,DIAPHRAGM

€ 0.00

56

1368231210
ref: 56

CAP,STARTER VALVE

€ 5.00

57

1327847090
ref: 57

O RING

€ 2.00

58

0949324005
ref: 58

JET,AIR

€ 13.00

59

0211205168
ref: 59

SCREW

€ 2.50

60

0832121058
ref: 60

LOCK WASHER

€ 2.00

61

1355047100
ref: 61
MR

SHAFT,THROTTLE

€ 0.00

62

1358947070
ref: 62
MR

WASHER

€ 3.00

63

1321047180
ref: 63

CARBURETOR ASSEMBLY

€ 0.00

64

1342244080
ref: 64

LEVER

€ 10.00

65

1360547070
ref: 65

SCREW

€ 5.50

66

1341047070
ref: 66

SHAFT,STARTER

€ 29.00

67

0214205128
ref: 67

SCREW

€ 1.50

68

1368331610
ref: 68

HOSE

€ 14.00

69

1362747070
ref: 69

BRACKET,THROTTLE ADJUST

€ 4.00

70

1327193011
ref: 70

SPRING

€ 4.50

71

1368547070
ref: 71

NIPPLE

€ 25.00

72

1368347070
ref: 72

HOSE

€ 18.00

73

1326747070
ref: 73

SCREW

€ 21.00

74

1368547080
ref: 74

NIPPLE,CARBURETOR

€ 25.50

75

0211206128
ref: 75

SCREW 6X12

€ 2.00

76

1368547090
ref: 76

NIPPLE

€ 16.50

77

0211205108
ref: 77

SCREW

€ 2.00

78

0832121058
ref: 78

LOCK WASHER

€ 2.00

79

1343247090
ref: 79

WASHER

€ 2.50

80

1341349220
ref: 80

LEVER,CHOKE CABLE

€ 4.00

81

1342149220
ref: 81

PLATE,CHOKE CABLE

€ 3.00

82

1343749220
ref: 82

SPRING,CHOKE CABLE

€ 0.00

all assemblies
