GENERATOR

GS500E 1983 (D) GENERAL EXPORT (E01)

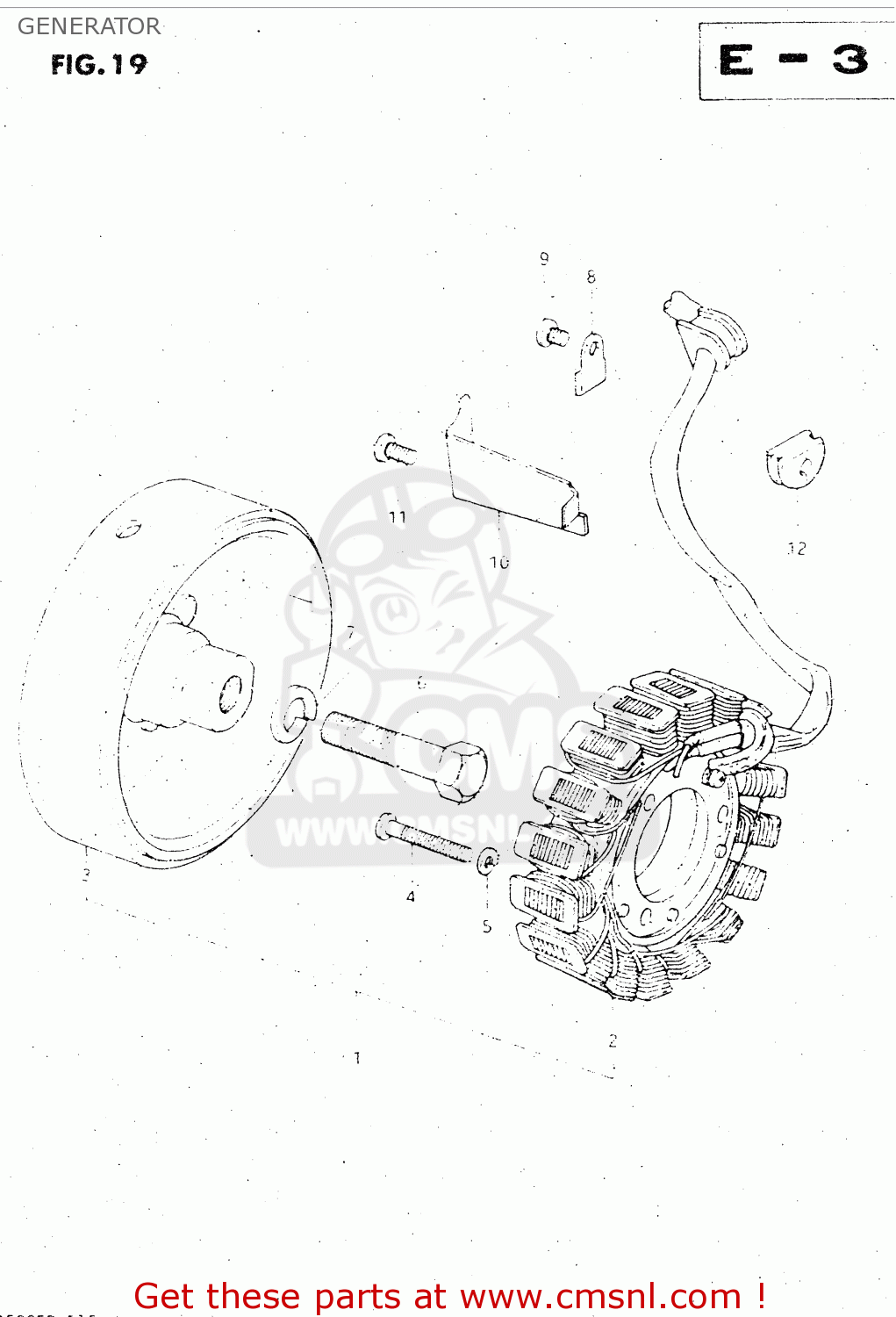

Generator diagram GS500E 1983 (D) GENERAL EXPORT (E01)

GENERATOR GS500E 1983 (D) GENERAL EXPORT (E01)

GENERATOR GS500E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3140047020
ref: 1
TO 31400-47021

GENERATOR ASSEMBLY

€ 371.00

2

3140147020
ref: 2
TO 31401-47021

STATOR ASSEMBLY

€ 371.00

3

3140245090
ref: 3

ROTOR ASSEMBLY

€ 385.00

4

0211205308
ref: 4

SCREW

€ 1.50

5

0832121058
ref: 5

LOCK WASHER

€ 2.00

6

0110712458
ref: 6

BOLT 12X45

€ 5.50

7

0832131128
ref: 7

WASHER,LOCK 12

€ 2.50

8

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

9

0211205088
ref: 9

SCREW

€ 2.00

10

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

11

0211206108
ref: 11

SCREW

€ 1.50

12

3148247000
ref: 12

GROMMET,STARTER CABLE

€ 2.00
