FRAME COVER (MODEL Z)

GS500E 1983 (D) GENERAL EXPORT (E01)

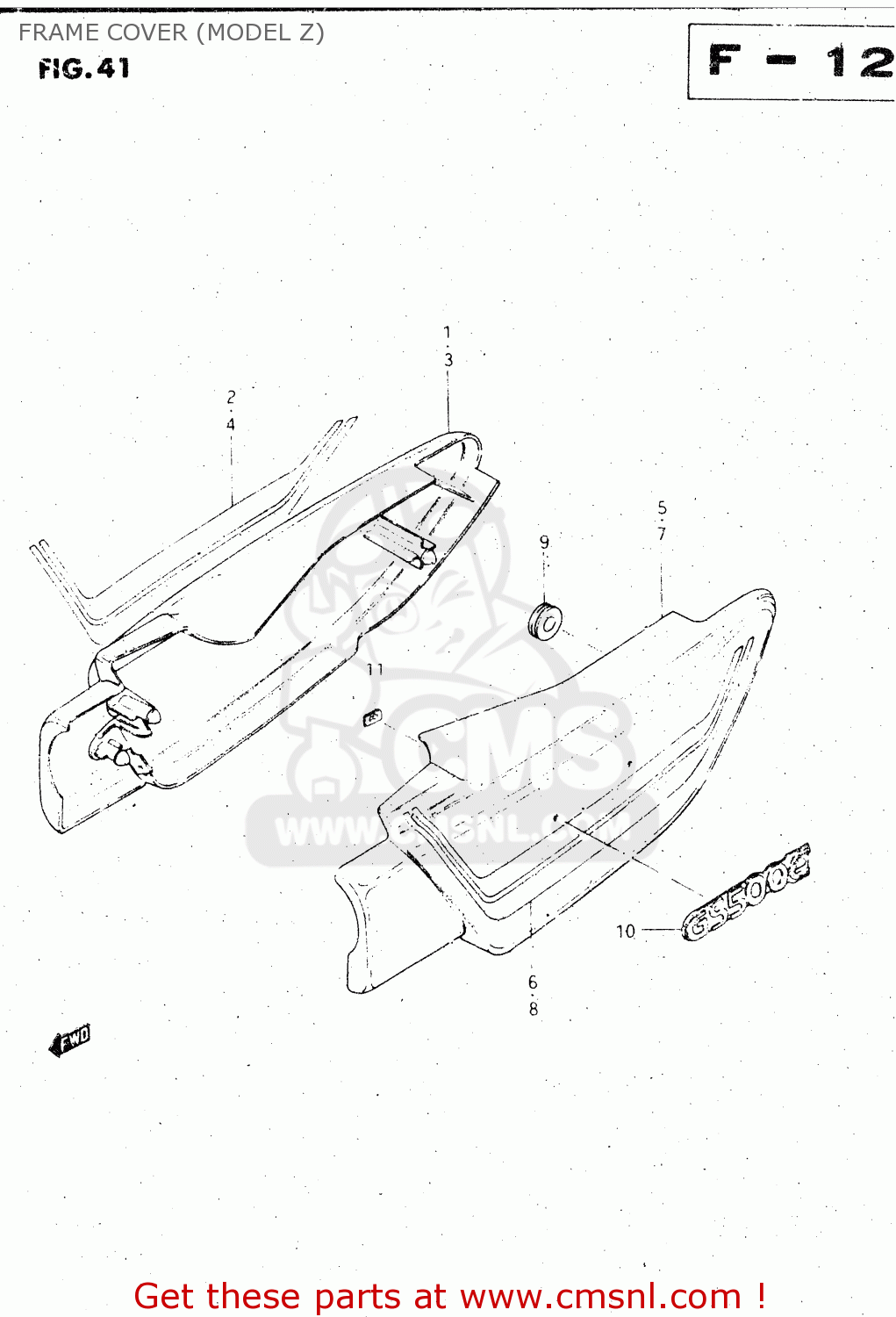

Frame cover (model z) diagram GS500E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

471103450013Z
ref: 1-1

COVER,FRAME,RIGHT

€ 60.00

1-3

471103450000J
ref: 1-3

COVER, FRAME RH (RED)

€ 60.00

681363452063K
ref: 2

TAPE, RH

€ 0.00

471103450004Y
ref: 3

COVER, FRAME RH (BLUE)

€ 60.00

681363452079J
ref: 4

TAPE, RH

€ 0.00

5-1

472103450013Z
ref: 5-1

COVER,FRAME,LEFT

€ 51.50

5-2

472103450000J
ref: 5-2

COVER, FRAME LH (RED)

€ 51.50

681463452063K
ref: 6

TAPE, LH

€ 18.00

472103450004Y
ref: 7

COVER, FRAME LH (BLUE)

€ 51.50

681463452079J
ref: 8

TAPE, LH

€ 18.00

0932008018
ref: 9

CUSHION

€ 4.00

6813147350
ref: 10

EMBLEM

€ 0.00

0914803002
ref: 11

NUT

€ 3.00
