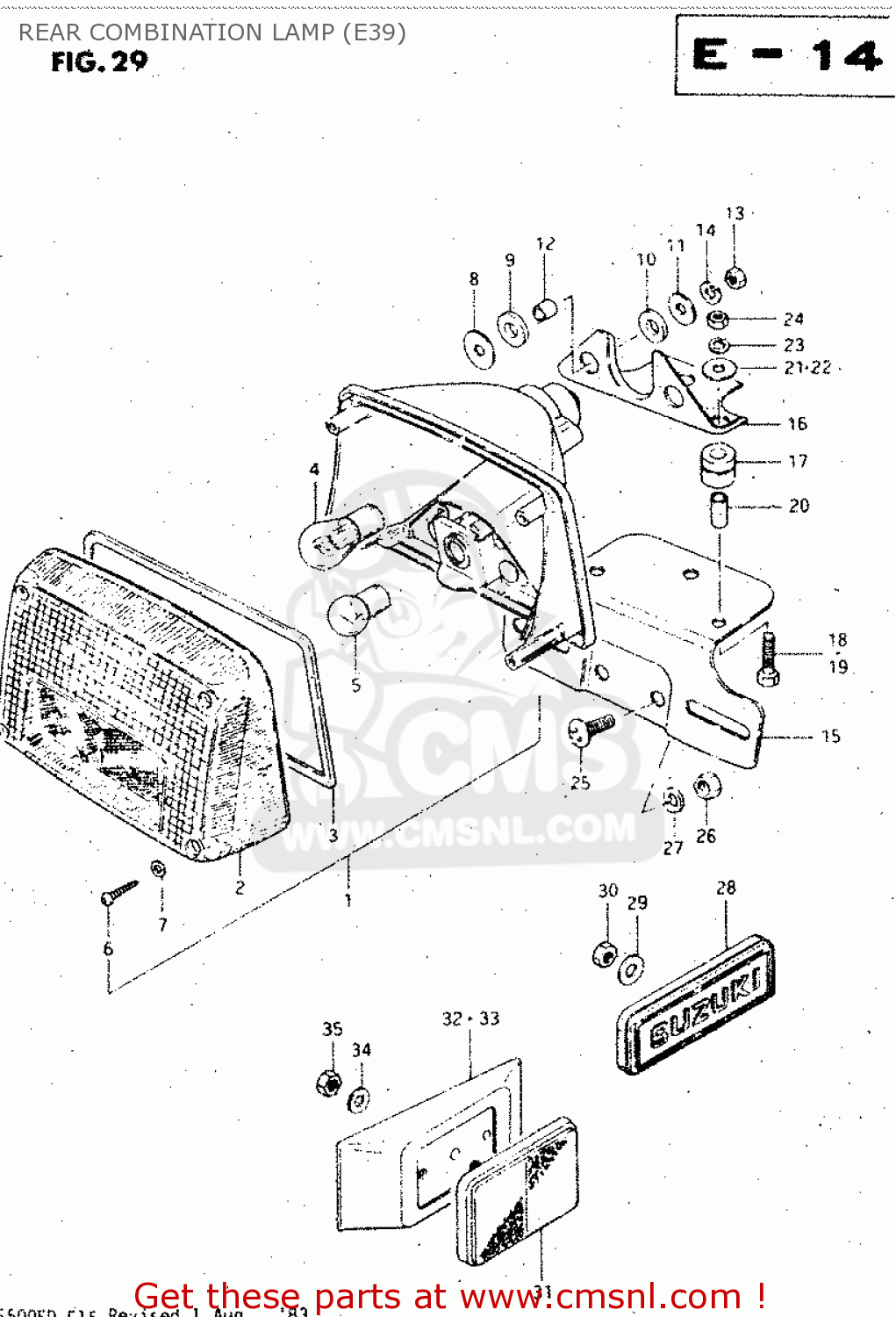

REAR COMBINATION LAMP (E39)

ref

part #

description

quantity

1

3571049083
ref: 1

LAMP ASSY, REAR COMBINATION

€ 178.00

2

3571249084
ref: 2

LENS,RR COMBI

€ 43.50

3

3571349030
ref: 3

GASKET (NAS)

€ 12.50

4

0947112064
ref: 4
EXECUTED LOCALLY

BULB,12V,12W

€ 5.00

5

0947112059
ref: 5
EXECUTED LOCALLY

BULB

€ 4.00

6

3562749030
ref: 6

SCREW,REAR COMBINATION LAMP

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0916006007
ref: 8

WASHER

€ 2.00

9

0932009004
ref: 9

CUSHION

€ 2.50

10

0932009003
ref: 10

CUSHION

€ 2.00

11

0916006012
ref: 11

WASHER(6,5X22X1.6)

€ 2.00

12

0918006038
ref: 12

SPACER(6.1X9X7.5)

€ 2.00

13

0831011068
ref: 13

NUT

€ 2.50

14

0832121068
ref: 14

LOCK WASHER

€ 2.50

15

3592749091
ref: 15

BRACKET, LICENCE PLATE

€ 13.00

16

3592849031
ref: 16

BRACKET,LICENSE PLATE

€ 6.50

17

3579449000
ref: 17

CUSHION, BRACKET

€ 18.00

18

0110706258
ref: 18

BOLT

€ 2.00

19

0110706308
ref: 19

BOLT

€ 2.50

20

0918006087
ref: 20

SPACER (6.4X9X15.5)

€ 4.00

21

0916006007
ref: 21

WASHER

€ 2.00

22

0916906016
ref: 22

WASHER

€ 1.50

23

0832121068
ref: 23

LOCK WASHER

€ 2.50

24

0831011068
ref: 24

NUT

€ 2.50

25

0214206167
ref: 25

SCREW

€ 2.00

26

0831011068
ref: 26

NUT

€ 2.50

27

0832121068
ref: 27

LOCK WASHER

€ 2.50

28

3599234510
ref: 28

EMBLEM, REAR SIDE

€ 17.00

29

0832221058
ref: 29

WASHER

€ 2.50

30

0831011058
ref: 30

NUT

€ 2.50

31

3595049330
ref: 31

REFLECTOR,REFLEX

€ 15.00

32

3597747300
ref: 32

SPACER, RH

€ 0.00

33

3597847300
ref: 33

SPACER, LH

€ 0.00

34

0832221058
ref: 34

WASHER

€ 2.50

35

0831011058
ref: 35

NUT

€ 2.50
