FUEL TANK (MODEL Z)

GS500E 1983 (D) GENERAL EXPORT (E01)

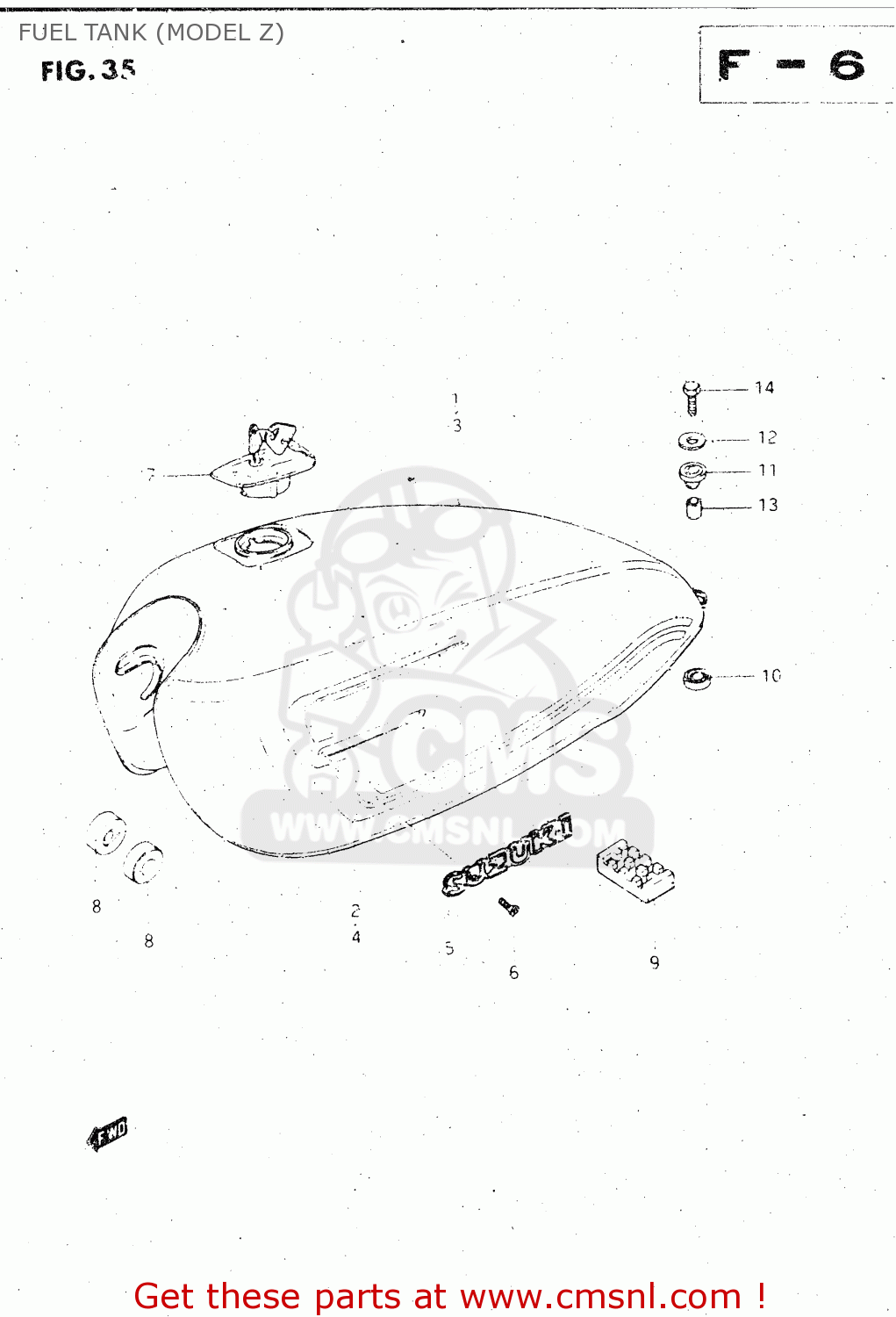

Fuel tank (model z) diagram GS500E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

441013481013Z
ref: 1-1

TANK, FUEL (BLACK)

€ 0.00

1-2

441013481000J
ref: 1-2

TANK, FUEL (RED)

€ 230.50

681103452063K
ref: 2

TAPE SET

€ 39.00

441003452084Y
ref: 3

TANK, FUEL (BLUE)

€ 0.00

681103452079J
ref: 4

TAPE SET

€ 39.00

6811111400
ref: 5

EMBLEM,FUEL TANK

€ 24.50

0213203065
ref: 6

SCREW 3X6

€ 2.00

4420049703
ref: 7

CAP SET,FUEL TANK

€ 121.00

0932910007
ref: 8

CUSHION

€ 3.00

4454134500
ref: 9

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 10

CUSHION

€ 3.00

0932010020
ref: 11

CUSHION

€ 4.00

0916006004
ref: 12

WASHER (6.5X24X1.6)

€ 1.50

0918006072
ref: 13

SPACER

€ 2.00

0110706308
ref: 14

BOLT

€ 2.50
