SEAT TAIL COVER (MODEL Z)

GS500E 1983 (D) GENERAL EXPORT (E01)

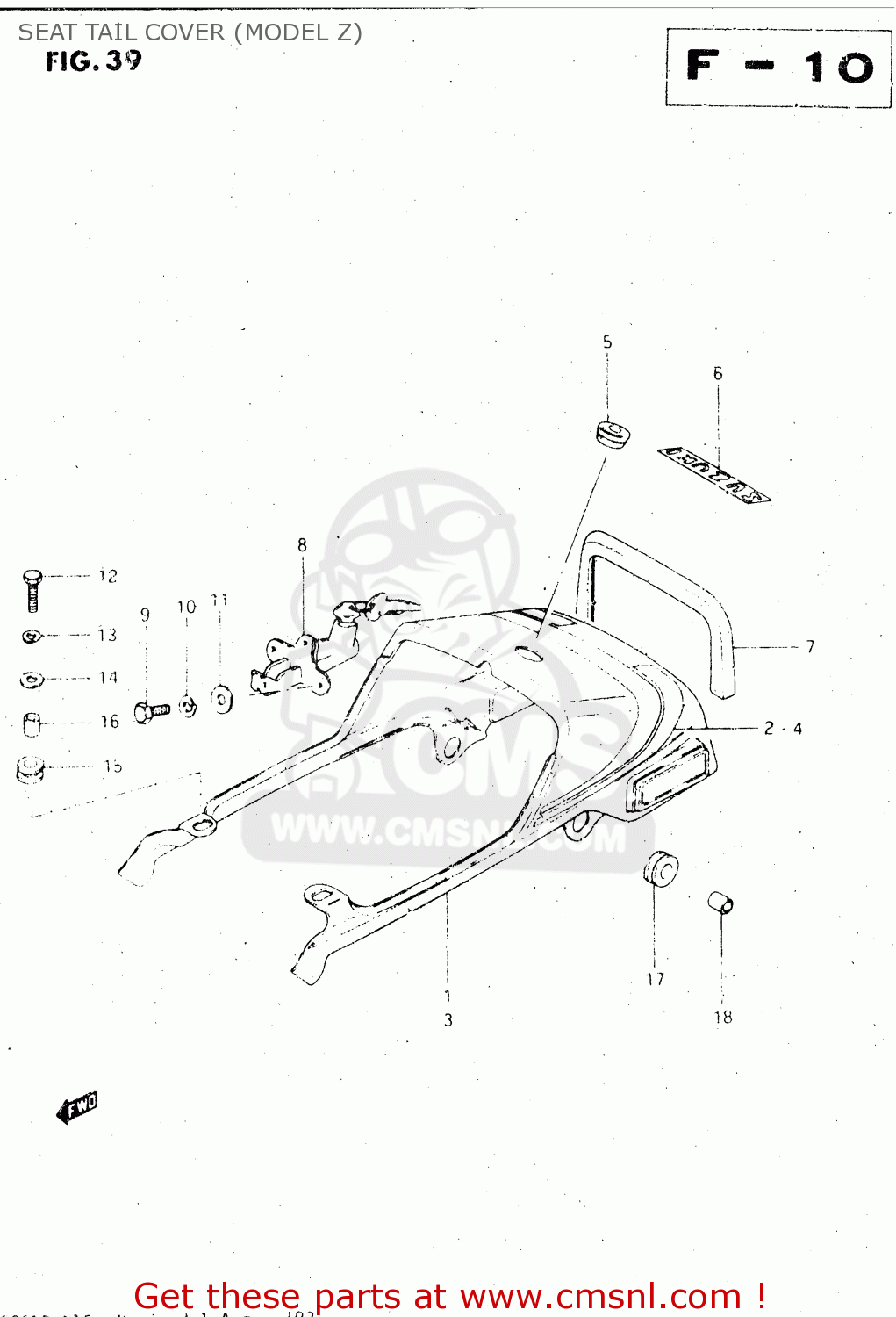

Seat tail cover (model z) diagram GS500E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1-1

455003481013Z
ref: 1-1

COVER, SEAT TAIL (BLACK)

€ 91.50

1-2

455003481000J
ref: 1-2

COVER, SEAT TAIL (RED)

€ 91.50

681673452063K
ref: 2

TAPE SET

€ 0.00

455003455004Y
ref: 3

COVER,SEAT TAI

€ 91.50

681673452079J
ref: 4

TAPE SET

€ 13.50

4552249200
ref: 5

GROMMET,SEAT LOCK HOLE

€ 5.50

6816649200538
ref: 6

EMBLEM,SEAT TAIL COVER

€ 5.00

4552234500
ref: 7

GROMMET

€ 0.00

9570049830
ref: 8

LOCK SET,SEAT

€ 81.50

0110706128
ref: 9

BOLT

€ 2.00

0832121068
ref: 10

LOCK WASHER

€ 2.50

0832221068
ref: 11

WASHER

€ 2.00

0110706208
ref: 12

BOLT

€ 2.00

0832121068
ref: 13

LOCK WASHER

€ 2.50

0916006012
ref: 14

WASHER(6,5X22X1.6)

€ 2.00

0932010011
ref: 15

CUSHION

€ 5.50

0918007004
ref: 16

SPACER(6.5X10.5X12)

€ 2.50

0932013007
ref: 17

CUSHION

€ 4.50

0918008083
ref: 18

SPACER

€ 4.50
