REAR MASTER CYLINDER

GS500E 1983 (D) GENERAL EXPORT (E01)

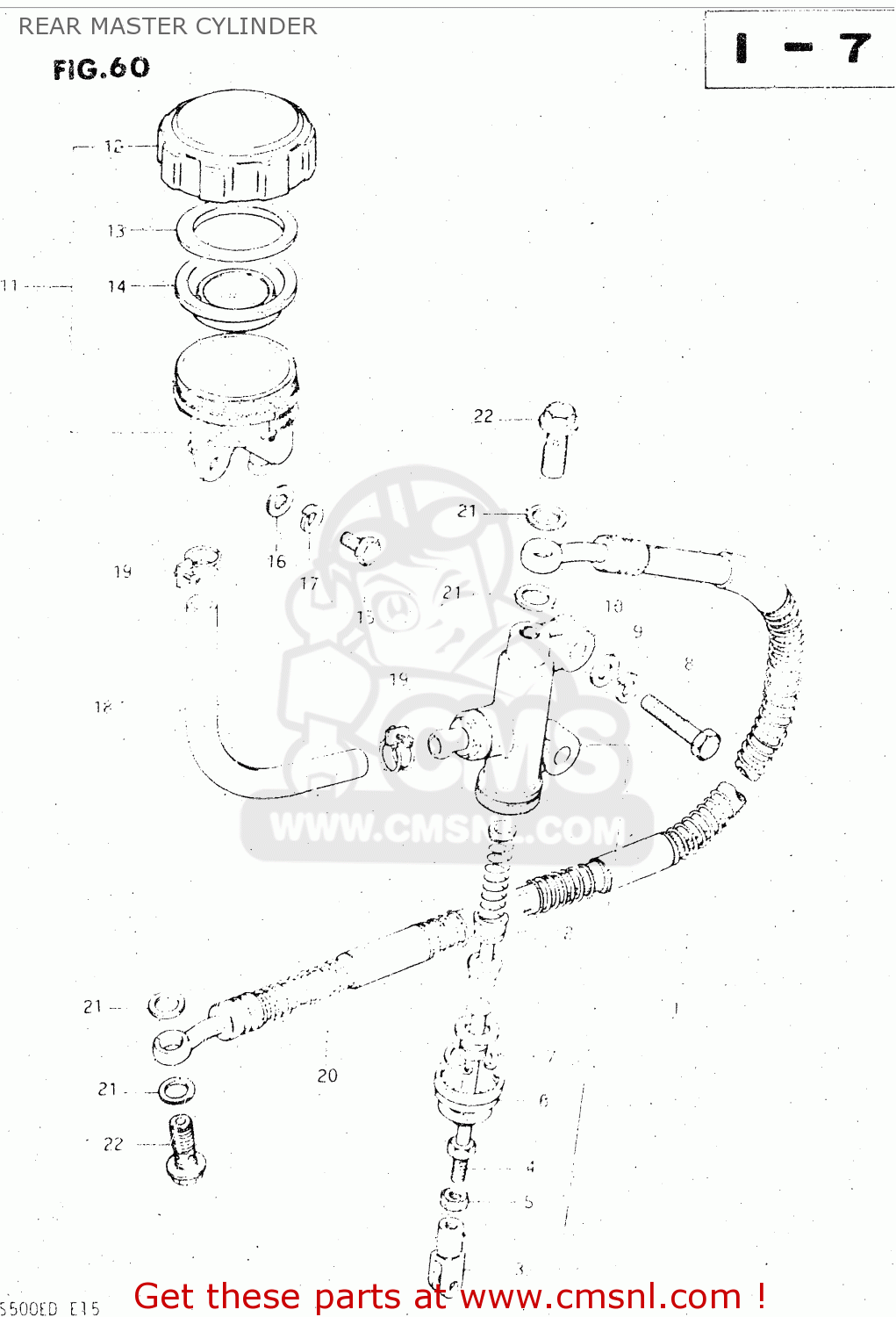

Rear master cylinder diagram GS500E 1983 (D) GENERAL EXPORT (E01)

REAR MASTER CYLINDER GS500E 1983 (D) GENERAL EXPORT (E01)
REAR MASTER CYLINDER GS500E 1983 (D) GENERAL EXPORT (E01)
REAR MASTER CYLINDER GS500E 1983 (D) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
6960047003
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
6960047003
€ 182.00
2
6982045820
ref: 2
PISTON & CUP SET
€ 0.00
3
6969234300
ref: 3
YOKE
6969234300
€ 11.00
4
6967045001
ref: 4
ROD,PUSH
6967045001
€ 18.50
5
6969334300
ref: 5
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
6969145001
€ 6.50
7
5116270040
ref: 7
CIRCLIP
5116270040
€ 3.00
8
0110708308
ref: 8
BOLT (8X30)
0110708308
€ 2.50
9
0832121088
ref: 9
LOCK WASHER
0832121088
€ 2.00
10
0832211088
ref: 10
WASHER
0832211088
€ 2.00
11
6974034200
ref: 11
TANK ASSEMBLY,RESERVOIR
6974034200
€ 27.50
12
5966918605
ref: 12
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
5966818441
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
5966718441
€ 8.50
15
0110706168
ref: 15
BOLT, UPPER
€ 3.00
16
0832221068
ref: 16
WASHER
0832221068
€ 2.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
6973134500
ref: 18
HOSE,RESERVOIR TANK
€ 0.00
19
0940016302
ref: 19
CLAMP
0940016302
€ 4.50
20
6948034503
ref: 20
HOSE,REAR BRAKE
€ 76.50
21
0916110005
ref: 21
WASHER
0916110005
€ 2.00
22-1
0936010007
ref: 22-1
MODEL Z
BOLT,UNION
0936010007
€ 6.50
22-2
0936010009
ref: 22-2
MODEL D
BOLT UNION
€ 6.50
