SIGNAL GENERATOR

GS500E 1983 (D) GENERAL EXPORT (E01)

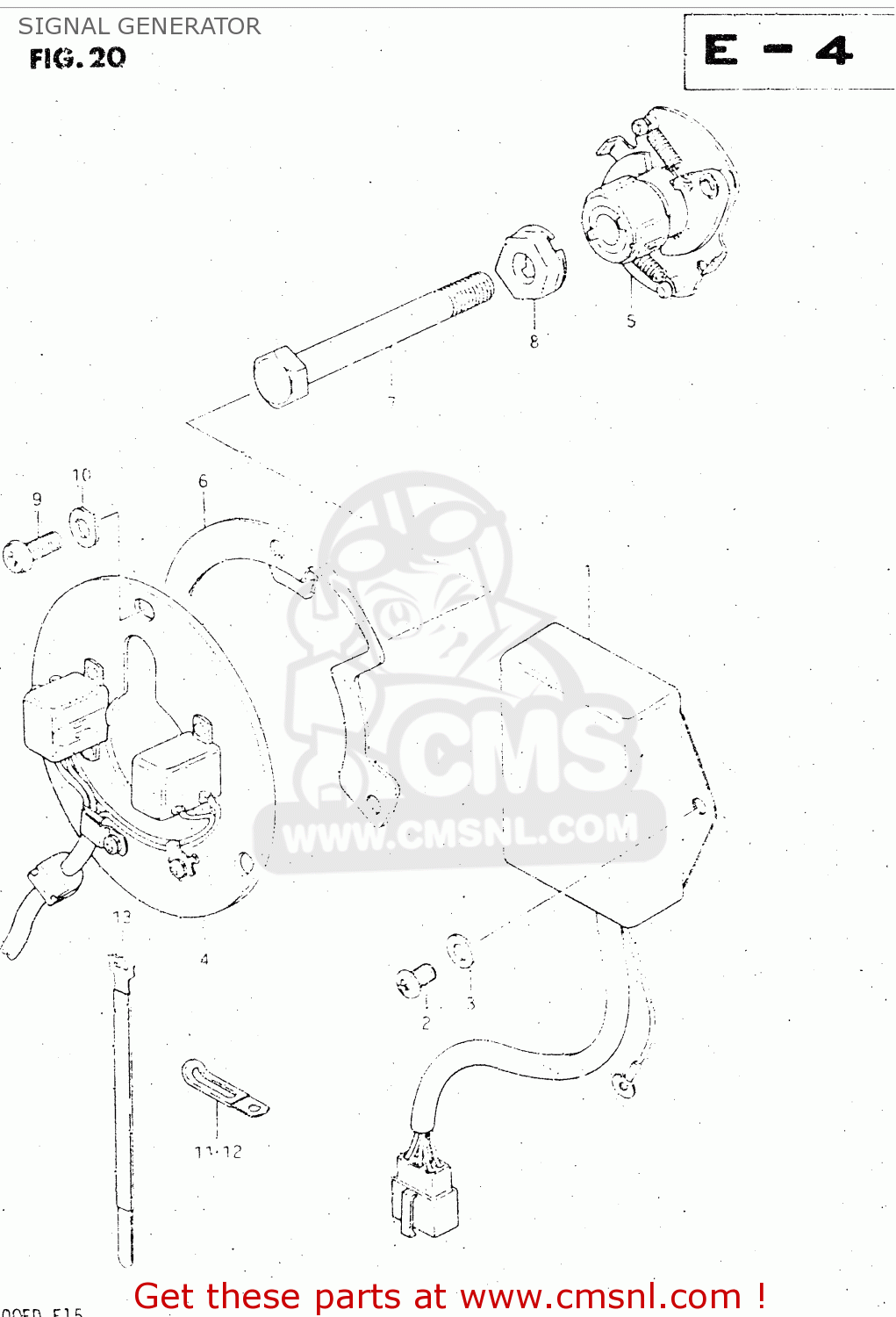

Signal generator diagram GS500E 1983 (D) GENERAL EXPORT (E01)

SIGNAL GENERATOR GS500E 1983 (D) GENERAL EXPORT (E01)

SIGNAL GENERATOR GS500E 1983 (D) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

3290047320
ref: 1

IGNITOR UNIT

€ 625.00

2

0211206108
ref: 2

SCREW

€ 1.50

3

0832221068
ref: 3

WASHER

€ 2.00

4

3311047020
ref: 4

SIGNAL GENERATOR ASSEMBLY

€ 393.50

5

3312047020
ref: 5

GOVERNOR ASSEMBLY

€ 191.50

6

3337145001
ref: 6

PLATE,IGNITION TIMING

€ 6.50

7

0110708658
ref: 7

BOLT

€ 3.00

8

3346547000
ref: 8

WASHER

€ 19.00

9

0912505024
ref: 9

SCREW(5X12)

€ 2.00

10

0916005027
ref: 10

WASHER

€ 2.50

11

0940406401
ref: 11

CLAMP L:35

€ 2.50

12

0940408401
ref: 12

CLAMP

€ 3.50

13

0940718301
ref: 13

CLAMP

€ 6.00
